Le Tube Airport



Istres-Le Tubé Air Base


Base aérienne 125 Istres (BA 125)

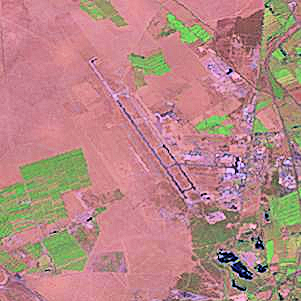

Landsat 5 satellite image - false color infrared

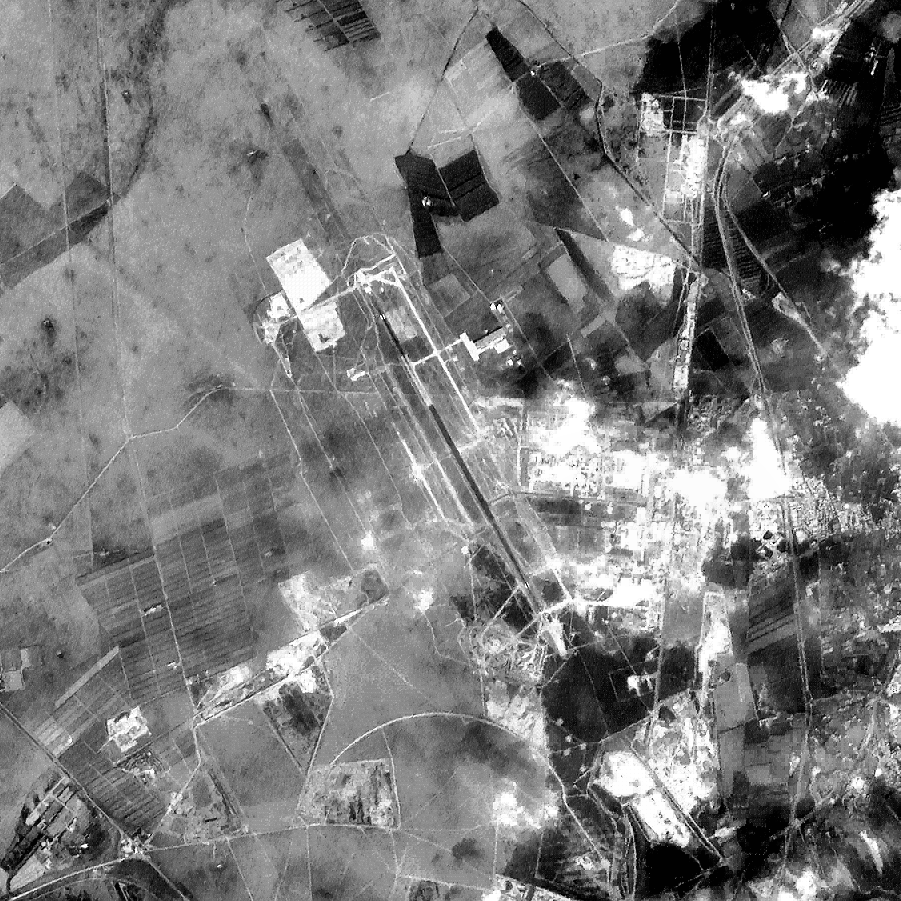

Aerial photo of Istres Air Base
IATA: QIE – ICAO: LFMI
Summary
Airport type Military
Location Istres
Elevation AMSL 82 ft / 25 m
Coordinates 43°31′28″N 4°56′30″E / 43.52444°N 4.94167°E / 43.52444; 4.94167
Runways
Direction Length Surface
m ft
15/33 3,750 12,303 Asphalt
Source: DAFIF

Istres-Le Tubé Air Base (French: Base Aérienne 125 or BA 125) is a large multi-role tasked French Air Force base located near Istres, north of Marseille, France. The airport facilities are also known as Istres - Le Tubé (ICAO airport code: LFMI).

Operational units and uses

Armée de l'air


Badge of the squadron 3/4 Limousin
Badge of the squadron 3/4 Limousin

The user of the base is the Armée de l'Air with several operational units on the base, including:

  • Strike squadron 3/4 Limousin equipped with Mirage 2000N.
  • Tanker squadron 00.093 Bretagne equipped with KC-135 Stratotanker.
  • DAMS 11.004 (Dépôt atelier de munitions spéciales) or Special Ammunition Storage responsible for the hardened alert facilities of nuclear mid-range Air-Sol Moyenne Portée ASMP missiles to be used by Strike sqn 3/4 in its deterrence role.
  • Air Defence squadron 01.950 responsible for the base air defense.
  • 25th air engineer regiment, a technical unit.
  • Guard detachment fusilliers commandos de l'air responsible for the base security and ground defenes.

Other uses

The base also hosts a helicopter squadron and a large repair and training facility. In addition, it also includes EPNER (École du Personnel Navigant d’Essais et de Réception); test facilities for DGA, Dassault Aviation, SNECMA, Thales and some aeronautical units of the French Navy. More than 5,000 personnel work on the base.

Secondary users occasionally include the United States Air Force (USAF), during Allied operations engaging United States and France. During Operation Allied Force, USAF KC-135s and U-2s operated out of the base. Istres was the home of U-2 detachment OL-FR (Operating Location-FRance). Istres is also utilized by NASA as a contingency landing site for the Space Shuttle in the case of a Transoceanic Abort Landing (TAL). The base's runway is 3,750 metres (12,300 ft) long and 60 metres (200 ft) wide, making it the longest one in Europe and thus suited to Shuttle landings.

Incidents

On 31 March 1992, a Boeing 707 of Kabo Air, a Nigerian company, made an emergency landing after a dangerous event almost unprecedented in the history of airliner flight. In turbulence at 35,000 feet, engines 3 and 4 separated from the wing, along with flaps and control systems. With delicate operation of the remaining power and controls, the flight headed for Marseilles trailing fuel from broken tanks. Istres air traffic control called the flight to tell them they had visual contact. "How can you see us? We're still in cloud?" "You're on fire," came the reply. Abandoning Marseilles as a potential landing site, the pilots spotted part of the Istres runway in a gap in cloud and performed a flapless, downwind landing with a touch-down speed of nearly 200 knots and a raging fire fueled by the remaining fuel load pouring from the right wing. The gear failed and the aircraft's ground slide took it off the far end of the runway, but the crew of five survived and the cargo was saved. The incident brought to light cowboy practices among certain airlines — the 707 involved in the incident had passed mandatory maintenance and was overloaded.

World War II

Built prior to World War II, Istres Air Base was first used by the Armée de l'air during the early part of the war, and after the 1940 Battle of France and the June Armistice with Nazi Germany, became part of the limited (French: Armée de l'Air de Vichy) air force of the Vichy Government. It was attacked on several missions by Allied bombers based in England while under German control after November 1942. It was seized by Allied forces during Operation Dragoon, the Invasion of Southern France in August 1944 and was repaired and placed into operational use by the United States Army Air Forces XII Engineer Command, being turned over to Twelfth Air Force on 27 August 1944.

The airfield was designated by the Americans as Istres/Le Tubé Airfield or Advanced Landing Ground Y-17. It was also given the AAF designation of USAAF Station 196. Twelfth Air Force initially assigned the 324th Fighter Group to the airfield on 2 September, with P-47 Thunderbolts. However the 324th only remained a few days before moving forward to Amberieu on 6 September.

The main USAAF use of Istres was by the 64th Troop Carrier Group, which operated C-47 Skytrain transports from the airfield from September to November 1944. When the combat units moved north into eastern France, Istres was used by Air Transport Command as a transshipment point for supplies and Allied personnel, being administratively controlled by the 1411th Army Air Force Base Unit.

With the end of the war, the Americans used Istres as a staging point between Occupied Germany and Morocco for air transport of personnel back to the United States. It was returned to full French control in October 1945.

Sometime after WWII, until May 1958 Base Aérienne 125 was host to the Royal Air Force Liaison Party, that serviced transient British and Commonwealth military aircraft staging to and from the United Kingdom.



The above content comes from Wikipedia and is published under free licenses – click here to read more.


General Info
Country France
ICAO ID LFMI
Time UTC+1(+2DT)
Latitude 43.522736
43° 31' 21.85" N
Longitude 4.923844
004° 55' 25.84" E
Elevation 82 feet
25 meters
Type Military
Magnetic Variation 000° E (01/06)
Operating Agency MILITARY
Near City Istres
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Saving Time Last Sunday in March to last Sunday in October


Communications
ISTRES TWR 122.1
123.6
240.5
257.8
RIVERIA OPS 257.25
11269.5
8999.5
(11269.50 day 8999.50 ngt.)
ISTRES GND 121.85
279.175
ISTRES APP 120.35
123.3
142.45
251.275
278.675
(251.275 Inflight refuel) (282.525 Climb out)
RHONE ACC 119.475
119.7
127.925
372.175
(279.575 Nimes sector)


Runways
ID Dimensions Surface PCN ILS
15/33 12303 x 197 feet
3750 x 60 meters
ASPHALT - YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
TACAN ITR ISTRES 104X - At Field -
NDB ITR ISTRES - 390.5 At Field -


Supplies/Equipment
Fuel Jet A1+, Jet A1 with icing inhibitor.
Oil O-156, MIL L 23699 (Synthetic Base)Turboprop/Turboshaft Engine
Other Fluids LHOX, Low and high pressure oxygen servicing

LOX, Liquid oxygen servicing

OX, Indicates oxygen servicing when type of servicing is unknown


Remarks
AF Inbd US acft in support of KC135 tanker ops at Istres AB ctc Riviera Ops 30 min prior to arr. US mil acft not asgn to Istres Le Tube are not auth to utilize this afld as a divert unless a PPR nr has been acquired. Ctc French ops at C011.33.4.42.56.91.20 ext 83255. If attempts to reach French fail ctc USDAO Paris at C011.33.1.43.12.29.29/22.22 and speak with an individual in the Air Attache's office or the DAO Duty Officer aft duty hrs. Riviera provides afld status, NOTAMS,current wx, and translator assistance to preclude significant gnd handling delays. Acft may be drct to taxi or prk in areas other than desired or exp, comply with instr, ctc Riviera Ops immed. Acft arr other than nml duty hrs on wkend, call Riviera Ops (DSN 229-4541, C011-33-442110541 fr US), C(0)4.42.11.05.41, wkd 0600-1800Z++) to arrange fleet svc. Riviera Ops can assist with corr dep routing.French Base Ops C33-4-42-55-6050.
CAUTION Ints test flying all types acft in lcl area.
CSTMS/IMG IMG H24. CSTMS avbl 0700-1100Z , 1300-1700Z Mon-Thu; 0700-1100Z, 1300-1600Z Fri;Sat-Sun O/R before 1400Z Fri; hol O/R before 1400Z last working day.
FLUID LHOX LOX avbl H24
FUEL A1+, 1 hr PN.
LGT PAPI Rwy 15-33 MEHT 80'.
OIL O-133-156
OPR HOURS Opr 0700-1600Z++ Mon-Thu; 0700-1400Z++ Fri; OT O/R.
RSTD Clsd 1st Thu morning of month for maint.



Thanks to: www.worldaerodata.com

The content above was published at Airports-Worldwide.com in 2010.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
