Emden Airfield

Emden Airfield

ICAO Code EDWE
Name EMDEN
Land Deutschland
Bundesland Niedersachsen
Letzte Änderung 17. März 2005

Kategorie Verkehrslandeplatz / Public Airfield
Betreiber / Operator Flugplatz Emden GmbH


Lage / Location 1.6 NM NNE Emden
Nachtflug / NVFR NVFR
Instrumentenflug / IFR IFR
LFZ / ACFT Bis / up to 5700 kg, 6200 kg PPR, HEL 6000 kg
Helicopter Ja / Yes
Motorsegler / GLDP Ja / Yes
Segelflugzeuge / GLD Ja / Yes
UL Ja / Yes
Falcon DA50 PPR, Sikorsky S-61 N
Summer 0515-1700, ab/from 1 OCT 0545-1615,
Winter 0700-SS+30/1630, SAT, SUN, HOL 0800-1600
O/T PPR
Luftaufsicht / OPS +49 (0)4921 / 42434,
Fax 42434
PPR Während der Betriebszeit/during operating hours +49 (0)4921 / 42434,
+49 (0)4925 / 589,
+49 (0)4954 / 7519
AIS EDDW +49 (0)421 / 5372131, 5372132
ACC EDDW +49 (0)421 / 5372120
MET (0190) 077221
Gafor 5

Zoll / Customs nein
Fuel 100 LL, Jet A1
Oil 80, W 80, W 100, 15W50
Hangar Ja / Yes
Höhe / Elevation 2 ft / 1 m
FIS Bremen Information 125.100
VDF / QDM 118.600
Rufzeichen / Call sign Emden Info
Frequenz Tower 118.600 GE
NAV Aids ABN PAPI 057°/24 NM from EEL VOR 112.40 256°/29 NM from JEV NDB 390
Koordinaten 53 23, 46 N / 07 13, 54 E

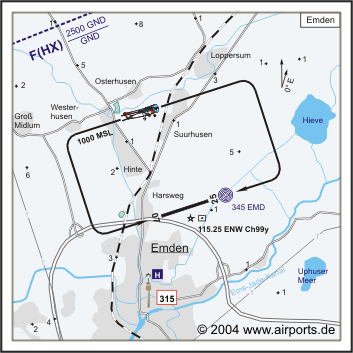

Platzrunde / Traffic circuit N 1000
Landebahnen / RWY 1
RWY 1300 x 30 m, ASPHALT
RWY 07 TKOF 1200 m; LDG 1100 m
RWY 25 TKOF 1100 m; LDG 1200 m
MTOW 5700 kg, PPR 14000 kg, PPR Falcon DA 50
Bemerkungen / Remarks Bei An- und Abflügen Stadtgebiet meiden!
Restaurant - Yes

Adresse

Adresse Gorch-Fock-Str. 103
ZIP / City D-26721 Emden

Fon +49 (0)4921 / 44712
Fax 41054

WWW: http://www.airports.de/airport.php?ICAO=EDWE




Images and information placed above are from
http://www.airports.de/airport.php?ICAO=EDWE


We thank them for the data!



General Info
Country Germany
ICAO ID EDWE
Time UTC+1(+2DT)
Latitude 53.391186
53° 23' 28.27" N
Longitude 7.227408
007° 13' 38.67" E
Elevation 2 feet
1 meters
Magnetic Variation 000° E (01/05)
Beacon Yes
Operating Agency CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
BREMEN RADAR 124.65
BREMEN INFO 125.1
WITTMUND/JEVER RADAR 123.6
INFO 118.6


Runways
ID
Dimensions Surface PCN ILS
07/25 4265 x 98 feet
1300 x 30 meters
ASPHALT - NO


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
NDB EMD EMDEN - 345 At Field -
DME ENW EMDEN 099Y - At Field -


Supplies/Equipment
Fuel Jet A1+, Jet A1 with icing inhibitor.

100/130 MIL Spec, low lead, aviation gasoline (BLUE)


Remarks
CSTMS/AG/IMG O/R 2 hr. Fone C04921 42434.
FUEL (NC-100LL, A1)
OPR HOURS Opr 0700Z-SS+30 or 1630Z Mon-Fri, 0800-1600Z Sat, Sun and hol, (0515-1700Z dly, DT), OT PPR.

Runway 07/25

4265 x 98 feet
1300 x 30 meters

Runway 07
Surface ASPHALT
True Heading 073.0
Latitude 53.389389
53° 23' 21.80" N
Longitude 7.217283
007° 13' 02.22" E
Elevation 2.0 feet
1 meters
Landing Distance 3609 feet
1100 meters
Takeoff Distance 4265 feet
1300 meters
Displaced Threshold Length 656 feet
200 meters
Lighting System SF
HIRL
REIL
M
PAPI

Runway 25
Surface ASPHALT
True Heading 253.0
Latitude 53.392850
53° 23' 34.26" N
Longitude 7.235942
007° 14' 09.39" E
Elevation 2.0 feet
1 meters
Landing Distance 3937 feet
1200 meters
Takeoff Distance 4265 feet
1300 meters
Displaced Threshold Length 328 feet
100 meters
Lighting System SF
HIRL
REIL
M
PAPI

Navaids

EMDEN
Type ID Channel Freq Country State
NDB EMD - 345 Germany -
Latitude Longitude Airport
53.393914
53° 23' 38.09" N
7.241689
007° 14' 30.08" E
EDWE

Navaids

EMDEN
Type ID Channel Freq Country State
DME ENW 099Y - Germany -
Latitude Longitude Airport
53.389136
53° 23' 20.89" N
7.229139
007° 13' 44.90" E
EDWE

Thanks to: www.worldaerodata.com

The content above was published at Airports-Worldwide.com in 2005.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
