Frankfurt International Airport

ICAO Code EDDF
IATA Code FRA
Name FRANKFURT
Land Deutschland
Bundesland Hessen
Letzte Änderung 23. Juli 2003

Kategorie Int. Verkehrsflughafen / Int. Airport
Betreiber / Operator Fraport AG

Lage / Location 6.5 NM SW Stadtmitte Frankfurt/Centre of Frankfurt
Nachtflug / NVFR NVFR
Instrumentenflug / IFR IFR
LFZ / ACFT Bis / up to PCN 74/R/A/W/T
Helicopter Ja / Yes
Starts, Landungen sowie Übungsflüge von LFZ mit ziviler Verkehrszulassung bis 5700 kg im VFR-Betrieb sind von 0500-2200 (0400-2100) nur mit vorheriger Zustimmung der Flugverkehrskontrolle Frankfurt zulässig. From 0500-2200 (0400-2100) departures, arrivals and training flights of civil ACFT up to 5700 kg in VFR-operations are only admissible with previous agreement of ATC Frankfurt. Tel. +49 (0)69 / 69078800
Summer H 24
Winter H 24
Luftaufsicht / OPS +49 (0)69 / 69066152
AIS AIS-Centre EDDZ, +49 (0)69 / 78072500
APP EDDF +49 (0) 69078800
MET (0190) 077224
Gafor 45

Frankfurt International Airport

Zoll / Customs H 24
Fuel 100 LL, Jet A1
Oil Turbo Oils, Aviation Oils
Hangar O / R
Höhe / Elevation 364 ft / 111 m
FIS Frankfurt Information 119.150
VDF / QDM O/R
Rufzeichen / Call sign Frankfurt Tower/Turm
Frequenz Tower 119.900 EN/GE 124.850 EN/GE
Frequenz Ground 121900
NAV Aids PAPI ABN DME FRD 115.90 am Platz/at field ILS RWY 25 R 109.50 ILS RWY 25L 110.70 ILS RWY 07L 110.10 ILS 07R 110.95
Koordinaten 50 02, 00 N / 08 34, 23 E
Landebahnen / RWY 3
RWY 4000 x 60 m, CONCRETE
RWY 07L TKOF 4000 m; LDG 4000 m
RWY 25R TKOF 4000 m; LDG 4000 m
MTOW PCN 74 R/A/W/T
RWY II 4000 x 45 m, CONCRETE
RWY 07R TKOF 4000 m; LDG 4000 m
RWY 25L TKOF 4000 m; LDG 4000 m
MTOW RWY II PCN 74 R/A/W/T
RWY III 4000 x 45 m, CONCRETE
RWY 3970 TKOF m; LDG m
RWY 3970 TKOF m; LDG m
MTOW RWY III PCN 90 R/A/W/T
Restaurant - Yes

Frankfurt International AirportThe best airport is an airport at which passengers don't notice where the ordinary world ends and the airport experience begins; i.e., an airport at which air road and rail have been integrated so well that it provides a seamless travel experience for the passengers. Frankfurt Airport comes closer to this ideal than any other major European airport. For example, nowhere are connecting routes as short as between the long-distance or regional train station to Terminal 1 and, via the Sky Line people mover, to Terminal 2 at Frankfurt. For you this means minimum waiting times, maximum convenience and fastorientation - in short, better, more convenient and more reliable traveling.

Address and Contact
Fraport AG
Airport Conference Center
60547 Frankfurt am Main
Germany

Reception
Telephone: +49-(0) 69-6 90-7 05 03
Telefax: +49-(0) 69-6 90-7 16 18
E-Mail: acc-rezeption at fraport de

Tel: 01805-FRAINFO (from Germany)
+49-(0)69-690-0

Opening Hours
Monday to Friday 7:00 - 21:30
Saturdays 9:00 - 18:00 and by appointment
Sundays and public holidays by appointment only

WWW: Frankfurt International Airport

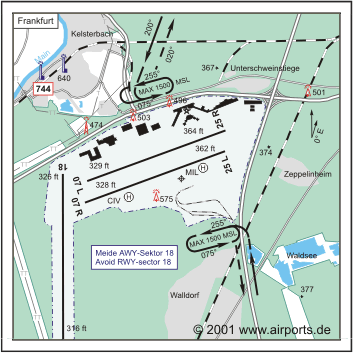

Images and information placed above are from
http://www.airports.de/airport.php?ICAO=EDDF


We thank them for the data!



General Info
Country Germany
ICAO ID EDDF
Time UTC+1(+2DT)
Latitude 50.026422
50° 01' 35.12" N
Longitude 8.543125
008° 32' 35.25" E
Elevation 364 feet
111 meters
Type Joint (Civil and Military)
Magnetic Variation 000° E (01/05)
Beacon Yes
Operating Agency MILITARY - CIVIL JOINT USE AIRPORT
Alternate Name RHEIN MAIN AB
Operating Hours 24 HOUR OPERATIONS
International Clearance Status Airport of Entry
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
TWR 119.9
124.85
127.325
337.75
(124.85, 127.325 Opr HX)
APN 121.7
121.85
121.95
(APN EAST-121.95) (APN WEST-121.7) (APN SOUTH-121.85)
PTD 140.45
379.875
(140.45 100NM to 35,000 MSL) (379.875 65NM to 50,000 MSL)
AMCC 131.975
376.975
MIL RAMP 131.975
GND 121.8
DIR 118.5
124.2
340.6
(124.2 Opr HX)
DEP 120.15
136.125
362.4
(120.15 Opr HX)
DELIVERY 121.9
ATIS
Opr 0250-0050Z++ (ARR 114.2 118.025) (DEP 118.725)
114.2
118.025
118.725
ARR 118.45
120.8
127.275
252.45
(118.45 and 127.275 Opr HX)
INFO
Opr SR-30 - SS+30.
119.15
356.3


Runways
ID
Dimensions Surface PCN ILS
07R/25L 13123 x 148 feet
4000 x 45 meters
CONCRETE. 074RAWT YES
07L/25R 13123 x 197 feet
4000 x 60 meters
CONCRETE. 074RAWT YES
18/36 13123 x 148 feet
4000 x 45 meters
CONCRETE. 090RAWT NO


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
VORTAC FFM FRANKFURT 089X 114.2 4.0 NM 245.6
NDB FW FRANKFURT - 382 4.6 NM 073.8
DME FRD FRANKFURT 106X - At Field -


Supplies/Equipment
Fuel Jet A1+, Jet A1 with icing inhibitor.

JP-8, SemiKeroscene MIL Spec T-83133, without icing inhibitor

100/130 MIL Spec, low lead, aviation gasoline (BLUE)
Oil O-148, MIL L 7808 (Synthetic Base), Turboprop/Turboshaft Engine

O-156, MIL L 23699 (Synthetic Base)Turboprop/Turboshaft Engine
Other Fluids PRESAIR, Air Compressors rated 3,000PSI or more

DE-ICE, Anti-icing/De-icing/Defrosting Fluid (MIL A 8243)

LOX, Liquid oxygen servicing
JASU A/M32A-86
AC:115/200v, 3 phase, 90 kva, 0.8pf, 4 wire, DC: 28v,1500 amp, 72kw

MA-1A
82lb/min (1123cfm) at 130 deg air inlet temp,45psia(min) air outlet

MC-1A
AC:115/208v,400 cycle, 3 phase, 37.5kva,0.8pf, 108 amp, 4 wire, DC: 28v, 500 amp, 14kw

MC-2A
15 cfm, 200 psia


Remarks
CAUTION Afld striped for C5 rqr only on I1, I2, J1, J2, J3, K1, L1, L2 and HS-2 prk spots; flw marshaller and flw-me drct. Dur simultaneous use of PAPI and ILS rstd to 200' abv thld. Ten masts erected 2296' fr and in line with apch end Rwy 25L/25R416' MSL lgt. Up to 11 lgtd cranes erected btn 2000' - 4200' in front of 25R thld and btn 3900' - 4300' NW of rwy cntrline up to 284' AGL.
FLUID De-Ice LOX PRESAIR
FUEL J8 (Air BP/Jet City/FFS) C49-69-695-00740. (NC-100LL, A1)
JASU 11(MA-1A) 12(MC-1A) 11(MC-2A) 50(AM 32 A-86)
LGT Rwy lgt 10' fr rwy edge. PAPI MEHT Rwy 07R-25L 68', PAPI MEHT Rwy 07L-25R 67'. For all acft on ILS CAT I apch, PAPI is only usable up to a hgt of 200' abv respective thld.
MISC Base OPS opr 0500-1700Z++ dly; ctc ETS 330-6519/6204, C069-699-6519/6204 in country, C49-699-6519/6204 intl. Plan all arr, dep svc and transportation dur opr hr. Wx fcst/obsn avbl thru Sembach only. Aircrews are rqr to svc their acft, TranAlert will only assist upon req of acft Comdr. Ltd prk. Acft with DV notify AMCC30 min prior to ldg. All arr acft must relay onboard cargo, PAX, and maint status to Rhein-Main AMCC 30-min prior to ldg via UHF/VHF. Apvl to enter mil ramp and parking lctn will then be issued. Ctc Frankfurt GND CON and Mil Ramp CON priorto eng start. Give Mil Ramp CON prk lctn and dep rwy. AF decelerometer reading not avbl. Ltd supply pubs/forms on hand; aircrew must bring what is needed for duration of deployment, or initial 60 days. Ltd classified storage. No COMSEC avbl. Fuel provided by coml contractor, exp 2 hr dly dur peak hr and OT wo prior coord. 1 R-11 top off of 5500 US gal. All other svcg must be by hydrant. De-fuel cap exists. Refuel: 45 min response time dur nml cond, 30 min response dur contingencies. Obtain apvl for eng start fr Frankfurt Delivery and AMCC. Prior to blocking out reestb ctc w/AMCC and give prk lctn and dep rwy. Sierra Twy is a ctled movement area. Obtain apvl fr twr prior to exiting the Mil Ramp and entering Sierra Twy.
NS ABTMT No C5 acft tkof or ldg 2100-0500Z++ wo waiver thru AMCC. See FLIP AP/2, Rte and Area Rstd for tkof and apch NS ABTMT pro. On ldg 2100-0500Z++ reverse thrust shall not be used unless for safety.
OIL O-148-156
RSTD RHEIN MAIN AB opr 0400-2000Z++dly. Acft rqr 726 AMS support should plan to arr no earlier than 0500Z++ and no later than 1900Z++ and plan to dep no earlier than0700Z++ and no later than 2000Z++. Aft duty hr response capability for priorityone alpha two (1A2) msn and higher only. Msn necessitating OPS outside these hrrqr 726 AMS DO apvl. Ctc 726 AMS AMCC at DSN 314-330-8742. All acft exc AMC sked msn rqr PPR call DSN 330-6519/6204 no more than five days prior. All Acft notify AMCC with inbound call 30 min prior to landing. Rhein-Main is operating in contingency status with reduced excess capability. All missions except AMC contingency, Airlift, Channel, SAAM and Patriot Express require PPR due to limited parking and high acft throughput, crews should not expect to RON. Acft w/ DV on board must coord with UVCC/Protocol DSN 330-6059. Arpt proh to tactical acft ldg (incl as wx altn), not proh as emerg altn. Multi apch trng flt and touch and go ldgnot auth. No lcl sorties or round robins for trans acft. All IFR FPL must be filed 4 hr prior to tkof. Do not enter mil ramp wo apvl fr Mil Ramp CON, use flw-me drct. Wing walkers are rqr when a C5 is travelling on Twy S and a C130 or larger acft is prk on L2. Wide body acft (C-5, 747,etc) may access Nov Ramp, howeverthey must use wing-walkers and obey follow-me veh. Wide body acft should not follow existing taxi lines in this area. Ldg fees rqr. Aft ldg, do not lv twr freqtil advised. Aft tkof, ctc dep con as publ or via ATIS. Do not ctc AMCC on 376.975 til wi 100 NM due to freq interference.

Runway 07R/25L

13123 x 148 feet
4000 x 45 meters

Runway 07R
Surface CONCRETE.
True Heading 070.0
Latitude 50.027542
50° 01' 39.15" N
Longitude 8.534175
008° 32' 03.03" E
Elevation 328.0 feet
100 meters
Slope 0.3°
Landing Distance 13123 feet
4000 meters
Takeoff Distance 15173 feet
4625 meters
Overrun Length 2050 feet
625 meters
Overrun Surface CONCRETE.
Lighting System SF
TDZL
CL
HIRL
REIL
A
PAPI

Runway 25L
Surface CONCRETE.
True Heading 250.0
Latitude 50.040053
50° 02' 24.19" N
Longitude 8.586531
008° 35' 11.51" E
Elevation 362.0 feet
110 meters
Slope -0.3°
Landing Distance 13123 feet
4000 meters
Takeoff Distance 13353 feet
4070 meters
Overrun Length 230 feet
70 meters
Overrun Surface ASPHALT
Lighting System SF
TDZL
CL
HIRL
REIL
A
PAPI

Runway 07L/25R

13123 x 197 feet
4000 x 60 meters

Runway 07L
Surface CONCRETE.
True Heading 070.0
Latitude 50.032617
50° 01' 57.42" N
Longitude 8.534631
008° 32' 04.67" E
Elevation 329.0 feet
100 meters
Slope 0.3°
Landing Distance 13123 feet
4000 meters
Takeoff Distance 14093 feet
4296 meters
Overrun Length 970 feet
296 meters
Overrun Surface CONCRETE.
Lighting System SF
TDZL
CL
HIRL
REIL
A
PAPI

Runway 25R
Surface CONCRETE.
True Heading 250.0
Latitude 50.045128
50° 02' 42.46" N
Longitude 8.586981
008° 35' 13.13" E
Elevation 364.0 feet
111 meters
Slope -0.3°
Landing Distance 13123 feet
4000 meters
Takeoff Distance 13353 feet
4070 meters
Overrun Length 230 feet
70 meters
Overrun Surface ASPHALT
Lighting System SF
TDZL
CL
HIRL
REIL
A
PAPI

Runway 18/36

13123 x 148 feet
4000 x 45 meters

Runway 18
Surface CONCRETE.
True Heading 180.0
Latitude 50.034439
50° 02' 03.98" N
Longitude 8.525928
008° 31' 33.34" E
Elevation 326.0 feet
99 meters
Slope -0.1°
Landing Distance 13123 feet
4000 meters
Takeoff Distance 13313 feet
4058 meters
Overrun Length 190 feet
58 meters
Overrun Surface ASPHALT
Lighting System CL
HIRL

Runway 36
Surface CONCRETE.
True Heading 360.0
Latitude 49.998417
49° 59' 54.30" N
Longitude 8.526083
008° 31' 33.90" E
Elevation 316.0 feet
96 meters
Slope 0.1°
Landing Distance 13123 feet
4000 meters
Takeoff Distance 13123 feet
4000 meters
Lighting System CL
HIRL

Navaids

FRANKFURT
Type ID Channel Freq Country State
VORTAC FFM 089X 114.2 Germany -
Latitude Longitude Airport
50.053742
50° 03' 13.47" N
8.637092
008° 38' 13.53" E
EDDF

Navaids

FRANKFURT
Type ID Channel Freq Country State
NDB FW - 382 Germany -
Latitude Longitude Airport
50.004956
50° 00' 17.84" N
8.429553
008° 25' 46.39" E
EDDF

Navaids

FRANKFURT
Type ID Channel Freq Country State
DME FRD 106X - Germany -
Latitude Longitude Airport
50.030467
50° 01' 49.68" N
8.567053
008° 34' 01.39" E
EDDF


The content above was published at Airports-Worldwide.com in 2005.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
