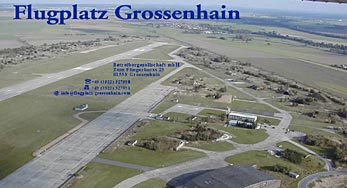

Grossenhain Airfield

Grossenhain Airfield

ICAO Code EDAK
Name GROSSENHAIN
Land Deutschland
Bundesland Sachsen
Letzte Änderung 14. Oktober 2004

Kategorie Verkehrslandeplatz / Public Airfield
Betreiber / Operator Flugplatz Großenhain Betreibergesellschaft mbH

Lage / Location 0.5 NM N Großenhain
LFZ / ACFT Bis / up to 5700 kg, 14000 kg PPR
Helicopter Ja / Yes
Motorsegler / GLDP Ja / Yes
Segelflugzeuge / GLD Ja / Yes
Ballone Ja / Yes
UL Ja / Yes
P-GLD, H-GLD, Luftschiffe/Airships, Flugmodelle/Flying models
Summer Mon-Thu 0700-1600, SR-30 bis/until 0700+ 1600-SS+30 PPR, Fr-Sun 0700-1800, SR-30 bis/until 0700+1800-SS+30 PPR
Winter 0800-1500, SR-30 bis/until 0800+1500-SS+30 PPR
Schulflüge in der Platzrunde sowie zu Übungszwecken unmittelbar aufeinanderfolgende, wiederholte An- und Abflüge desselben Luftfahrzeuges, Platzrundenflüge und erweiterte Platzflüge von weniger als 20 MIN sind zu folgenden Zeiten untersagt:/ Instuction flights in the traffic circuit as well as repeated approaches and departures of the same aircraft directly succeeding aech other for practice purposes, traffic circuit flights and extended local flightd of less than 20 MIN duration are prohibited in civil flight operations with powered aircraft at Großenhain Airfield at following times:Mon-Fri vor/before 0800(0700), 1200 (1100)-1400 (1300) und nach/after SS. Sat, Sun, HOL vor/before 0800 (0700) und nach/and after 1200 (1100) EXC Schleppstarts zu Überführungs- und Hochleistungsflügen, insbesondere zu Wettbewerbsflügen u ä.
Luftaufsicht / OPS +49 (0)3522 / 52950, 0170 / 7661218
AIS EDDB +49 (0)30 / 60918250
MET (0190) 077226
Gafor 23

Grossenhain Airfield

Zoll / Customs O/R 24 HR
Fuel 100 LL, Jet A1
Oil 80/100, W80/W100, multigrade
Hangar Ja / Yes
Höhe / Elevation 417 ft / 127 m
FIS Berlin Information 125.800
VDF / QDM 122.700
Rufzeichen / Call sign Grossenhain Info
Frequenz Tower 122.700 GE
NAV Aids ABN 354°/18 NM from DRN VOR/DME 114.35/Ch 90y 099°/41 NM from LEG VOR/DME 115.85/Ch 105y - 179°/43 NM from KLF 115.15
Koordinaten 51 18, 42 N / 13 33, 33 E

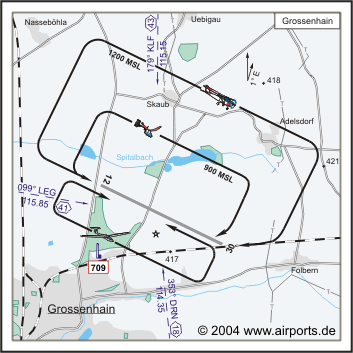

Platzrunde / Traffic circuit N 1200
Landebahnen / RWY 1
RWY 2400 x 48 m, CONCRETE
RWY 12 TKOF 1640 m; LDG 2190 m
RWY 30 TKOF 2190 m; LDG 1640 m
MTOW 5700 kg, PPR 14000 kg
Bemerkungen / Remarks GLD + PJE! UL-Betrieb! Wohngebiete meiden!
Restaurant - Yes

Adresse
Zum Fliegerhorst 25
ZIP / City D-01558 Großenhain

Fon +49 (0)3522 / 52750, 0170 / 7661218

Fax 529555

E-Mail: info at flugplatz-grossenhain com

WWW: Grossenhain Airfield


Images and information placed above are from
http://www.airports.de/airport.php?ICAO=EDAK


We thank them for the data!



General Info
Country Germany
ICAO ID EDAK
Time UTC+1(+2DT)
Latitude 51.308108
51° 18' 29.19" N
Longitude 13.554972
013° 33' 17.90" E
Elevation 417 feet
127 meters
Magnetic Variation 002° E (01/05)
Beacon Yes
Operating Agency CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
INFO 122.7
BERLIN INFO 125.8


Runways
ID
Dimensions Surface PCN ILS
12/30 7874 x 157 feet
2400 x 48 meters
CONCRETE. - NO


Supplies/Equipment
Fuel Unknown fuel type or whether there is any fuel.


Remarks
CAUTION Gldr act.
FUEL (NC-100LL, A1)
OPR HOURS Opr 0800-1500Z; (0700-1600Z Mon-Thu, 0700-1800Z Fri-Sun DT), OT PPR.
RSTD PPR over AUW 12.5 to AUW 31.

Runway 12/30

7874 x 157 feet
2400 x 48 meters

Runway 12
Surface CONCRETE.
True Heading 115.0
Latitude 51.312583
51° 18' 45.30" N
Longitude 13.539694
013° 32' 22.90" E
Landing Distance 7185 feet
2190 meters
Takeoff Distance 7874 feet
2400 meters
Displaced Threshold Length 689 feet
210 meters

Runway 30
Surface CONCRETE.
True Heading 295.0
Latitude 51.303639
51° 18' 13.10" N
Longitude 13.570250
013° 34' 12.90" E
Landing Distance 5381 feet
1640 meters
Takeoff Distance 7874 feet
2400 meters
Displaced Threshold Length 2493 feet
760 meters
