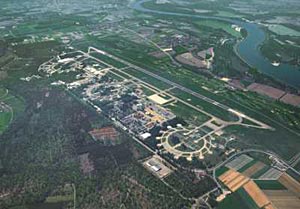

Karlsruhe/Baden-Baden Airport

Karlsruhe/Baden-Baden Airport

With the Baden-Airpark a comprehensive approach to the economic development and industrial location is created: airport, business park and leisure time complement each other to form an attractive location for companies from the most varying branches. Our diverse business and service park with integrated airport offers excellent preconditions for your entrepreneurial plans.
Valuable synergies result from logistics centre / service and communications park / trade and innovation centre / craftsmen's court and technology factory.

As far as the airport is concerned, we embark on the strategy to further develop the two segments tourism and scheduled flights. Reliable and competent partners are here as well part of our chain of services whether it is a question of sunny destinations in the South or scheduled flights for example to Berlin or Sylt...
With Business Charter you are completely independent of airline timetables: You have a destination and your individual airline company flies you there, wherever your business takes you.

ICAO Code EDSB
IATA Code FKB
Name KARLSRUHE - Baden-Baden
Land Deutschland
Bundesland Baden-Württemberg
Letzte Änderung 23. September 2003

Kategorie Verkehrsflughafen / Airport
Betreiber / Operator Baden-Airpark GmbH (BAP) Flughafen Karlsruhe/Baden-Baden

Lage / Location 6.5 NM W Baden-Baden
Nachtflug / NVFR NVFR
Instrumentenflug / IFR IFR PPR
LFZ / ACFT Bis / up to PCN 50, HEL PCN 40,
Helicopter Ja / Yes
Motorsegler / GLDP PPR
UL PPR
UL (dreiachsgesteuert im Rahmen der Erfordernisse am Flughafenansässiger Betriebe für den Bau von UL PPR. Einschränkungen siehe Kartenteil)
Summer 0400-2000, SUN, HOL 0700-1800 CTR H24
Winter 0500-2100, SUN, HOL 0800-1900 CTR H24
Luftaufsicht / OPS +49 (0)7229 / 662333, Fax 662339, 662337
PPR +49 (0)7229 / 662333, Fax 662339
AIS AIS-Centre EDDZ, +49 (0)69 / 78072500
ACC EDDF +49 (0)6103 / 7076200
APP LFST +33 388596313
MET (0190) 077227
Gafor 51

Karlsruhe/Baden-Baden Airport Zoll / Customs Während der Betriebszeit/during operating hours
Fuel 100 LL, Jet A1
Oil 80, 100, AD 80, AD 100, MG 20/50
Hangar Ja / Yes
Höhe / Elevation 407 ft / 124 m
FIS Langen Information 128.950, Reims Information 124.100
VDF / QDM 125.875
Rufzeichen / Call sign Baden Tower/Turm
Frequenz Tower 125.875 EN/GE
Frequenz Ground 121.825 EN/GE
NAV Aids ABNPAPI DME KBD Ch 105/115.80 am Platz/at field: 213°/0.5 NM from KRH VOR/DME 115.95/Ch 106y 054°/26 NM from STR VORTAC 115.60/Ch 103 318°/33 NM from SUL VOR 116.10
Koordinaten 48 46, 70 N / 08 04, 83 E

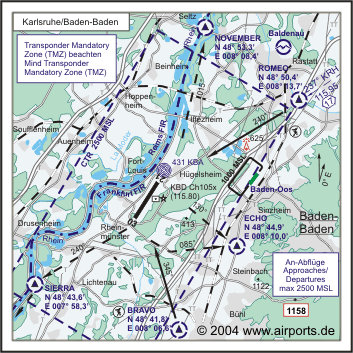

Platzrunde / Traffic circuit E/W 1400
Landebahnen / RWY 1
RWY 2983 x 45 m, ASPHALT / CONCRETE
RWY 03 TKOF 2980 m; LDG 2730 m
RWY 21 TKOF 2980 m; LDG 2730 m
MTOW PCN 40R/B/X/T
Restaurant - Yes

Adresse
Gebäude B 410
ZIP / City D-77836 Rheinmünster

Fon +49 (0)7229 / 662300
Fax 662309

URL http://www.baden-airport.de
eMail info at baden-airport de


Images and information placed above are from http://www.baden-airport.de
http://www.airports.de/airport.php?ICAO=EDSB
We thank them for the data!


General Info
Country Germany
ICAO ID EDSB
Time UTC+1(+2DT)
Latitude 48.779353
48° 46' 45.67" N
Longitude 8.080500
008° 04' 49.80" E
Elevation 408 feet
124 meters
Type Civil
Magnetic Variation 000° E (01/05)
Beacon Yes
Operating Agency CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
Alternate Name SOLLINGEN
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
BADEN TWR 125.875
LANGEN INFO 128.95
BADEN GND 121.825
BADEN ATIS
Opr 0430-2300Z++.
121.275
STRASSBOURG RADAR
Opr H24.
119.45
REIMS INFO 124.1
Communications Remarks
GND Call for start-up and taxi.


Runways
ID
Dimensions Surface PCN ILS
03/21 9787 x 148 feet
2983 x 45 meters
ASPHALT 050RBXT YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
NDB KBA KARLSRUHE BADEN BADEN - 431 1.3 NM 211.0
DME KBD KARLSRUHE BADEN BADEN 105X - At Field -


Supplies/Equipment
Fuel Jet A1+, Jet A1 with icing inhibitor.

100/130 MIL Spec, low lead, aviation gasoline (BLUE)


Remarks
CSTMS/IMG Avbl.
FLUID De-Ice O/R.
FUEL (NC 100LL, A1)
OPR HOURS Opr 0500-2100Z++ Mon-Sat, 0800-1900Z++ Sun and hol.
RSTD Flt OPS proh 2100-0500Z++ Mon-Sat and regional GM hol; 1900-0800Z++ Sun and GM hol; before 0600Z++ or 1200-1400Z++ Mon-Fri; before 0800Z++ and aft 1200Z++ Sat, Sun and hol. Twy N max Wgspan 79'.

Runway 03/21

9787 x 148 feet
2983 x 45 meters

Runway 03
Surface ASPHALT
True Heading 032.0
Latitude 48.767833
48° 46' 04.20" N
Longitude 8.069936
008° 04' 11.77" E
Elevation 403.0 feet
123 meters
Slope 0.0°
Landing Distance 8957 feet
2730 meters
Takeoff Distance 9902 feet
3018 meters
Displaced Threshold Length 830 feet
253 meters
Overrun Length 115 feet
35 meters
Overrun Surface ASPHALT
Lighting System HIRL
T
PAPI

Runway 21
Surface ASPHALT
True Heading 212.0
Latitude 48.790681
48° 47' 26.45" N
Longitude 8.091347
008° 05' 28.85" E
Elevation 403.0 feet
123 meters
Slope 0.0°
Landing Distance 8957 feet
2730 meters
Takeoff Distance 9902 feet
3018 meters
Displaced Threshold Length 830 feet
253 meters
Overrun Length 115 feet
35 meters
Overrun Surface ASPHALT
Lighting System SF
HIRL
BO
PAPI

Navaids

KARLSRUHE BADEN BADEN
Type ID Channel Freq Country State
NDB KBA - 431 Germany -
Latitude Longitude Airport
48.797964
48° 47' 52.67" N
8.097553
008° 05' 51.19" E
EDSB

Navaids

KARLSRUHE BADEN BADEN
Type ID Channel Freq Country State
DME KBD 105X - Germany -
Latitude Longitude Airport
48.780228
48° 46' 48.82" N
8.088486
008° 05' 18.55" E
EDSB




Thanks to: www.worldaerodata.com

The content above was published at Airports-Worldwide.com in 2005.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
