Magdeburg Airport

Magdeburg Airport ICAO Code EDBM
IATA Code ZMG
Name MAGDEBURG
Land Deutschland
Bundesland Sachsen-Anhalt
Letzte Änderung 23. September 2004

Kategorie Verkehrslandeplatz / Public Airfield
Betreiber / Operator Flughafen Magdeburg GmbH

Lage / Location S Magdeburg
Nachtflug / NVFR NVFR
Instrumentenflug / IFR IFR
LFZ / ACFT Bis / up to 5700 kg
Helicopter Ja / Yes
Motorsegler / GLDP Ja / Yes
Segelflugzeuge / GLD Ja / Yes
Ballone Ja / Yes
UL Ja / Yes
Fallschirmspringen / PJE Ja / Yes
Luftschiffe/ Airships
Summer MON-FRI 0600-1800, SAT, SUN, HOL 0700-1800
Winter MON-FRI 0700-1600, SAT, SUN, HOL 0800-1600
O/T PPR
Einschränkungen siehe AD 1-6/ restrictions see AD 1-6
Luftaufsicht / OPS +49 (0)391 / 6227865, Fax 6227010
PPR +49 (0)391 / 6227865, Fax 6227010
AIS AIS-Centre +49 (0)69 / 78072500
MET (0190) 077226
Gafor 22

Magdeburg AirportZoll / Customs Paßabfertigung/Immigration clearence: Bundesgrenzschutzinspektion Magdeburg, Tel.: +49 (0)391 / 5654910, 6227865, Fax 5654920. SUM Mon - Fri 0600 - 1900, Sat, Sun, HOL 0700 - 1800, WIN Mon - Fri 0700 - 1800, Sat, Sun, HOL 0800 - 1700
Zoll / Customs Fon +49 (0)391 / 5074-0, Fax 5074237
Fuel 100 LL, Jet A1
Oil Aero-Oil 80/100, W80, W100, W Multigrade 15W50AW, 15W50
Hangar Ja / Yes
Höhe / Elevation 267 ft / 81 m
FIS Berlin Information 125.800
VDF / QDM 119.300
Rufzeichen / Call sign Magdeburg Info
Frequenz Tower 119.300 EN/GE
NAV Aids 308°/8 NM from MAG VOR/DME 110.45/Ch 41y 119°/35 NM from HLZ DVOR/DME 117.30/Ch 120
Koordinaten 52 04, 42 N / 11 37, 58 E

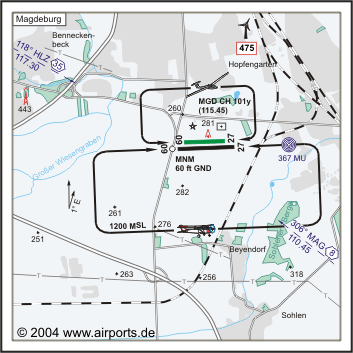

Platzrunde / Traffic circuit S 1200
Landebahnen / RWY 2
RWY 1000 x 30 m, ASPHALT
RWY 09 TKOF 1000 m; LDG 875 m
RWY 27 TKOF 875 m; LDG 1000 m
MTOW PCN 36 F/C/W/T
RWY II 700 x 30 m, Gras
RWY 09 TKOF 700 m; LDG 700 m
RWY 27 TKOF 700 m; LDG 700 m
MTOW RWY II 2000 kg, PPR 5700 kg
Bemerkungen / Remarks Luftraum/Airspace F (HX) GLD + PJE! UL-Betrieb! Hindernis/OBST 3 NM SE des Platzes (904 MSL) VFR-Nachtflüge nur für HEL (PPR) Wohngebiete meiden!
Restaurant - Yes


Adresse
Flughafen Magdeburg GmbH
Ottersleber Chaussee 91
39120 Magdeburg
Tel.: 0391 / 625 99 0
Fax: 0391 / 625 99 99
e-mail: info at flugplatz-magdeburg de

URL http://www.flughafen-magdeburg.de




Images and information placed above are from http://www.airports.de/airport.php?ICAO=EDBM
http://www.flughafen-magdeburg.de
We thank them for the data!



General Info
Country Germany
ICAO ID EDBM
Time UTC+1(+2DT)
Latitude 52.073658
52° 04' 25.17" N
Longitude 11.626467
011° 37' 35.28" E
Elevation 268 feet
82 meters
Type Civil
Magnetic Variation 001° E (01/05)
Beacon Yes
Operating Agency CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
BERLIN RADAR 124.175
INFO 119.3
340.2
BERLIN INFO 125.8


Runways
ID
Dimensions Surface PCN ILS
09/27 3281 x 98 feet
1000 x 30 meters
ASPHALT 036FCWT NO


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
VOR-DME MAG MAGDEBURG 041Y 110.45 7.8 NM 306.0
NDB MU MAGDEBURG - 367 At Field -
DME MGD MAGDEBURG 101Y - At Field -


Remarks
CAUTION Gldr acft using areo tow and cable winch launcher. PJE, ultralgt, airship, balloon act.
CSTMS/IMG CSTMS PPR fone 0391-5074-0 24 hr prior. IMG PPR fone 0391-565491-0 24 hr prior.
FUEL (NC-100LL, A1)
LGT PAPI Rwy 09-27 GS 3.3 MEHT 12'.
NS ABTMT Before 0600Z++, btn 1200-1400Z++, aft SS Mon-Fri; before 0800Z++ and aft 1200Z++Sat, Sun, hol.
OPR HOURS Opr 0700-1600Z Mon-Fri; 0800-1600Z Sat, Sun and hol, O/T PPR. ( 0600-1800Z Mon-Fri; 0700-1800Z Sat, Sun and hol, O/T PPR DT).

Runway 09/27

3281 x 98 feet
1000 x 30 meters

Runway 09
Surface ASPHALT
True Heading 088.0
Latitude 52.073517
52° 04' 24.66" N
Longitude 11.619203
011° 37' 09.13" E
Elevation 267.0 feet
81 meters
Slope -0.5°
Landing Distance 2871 feet
875 meters
Takeoff Distance 3478 feet
1060 meters
Displaced Threshold Length 410 feet
125 meters
Overrun Length 197 feet
60 meters
Overrun Surface ASPHALT
Lighting System HIRL
REIL
PAPI

Runway 27
Surface ASPHALT
True Heading 268.0
Latitude 52.073797
52° 04' 25.67" N
Longitude 11.633756
011° 38' 01.52" E
Elevation 249.0 feet
76 meters
Slope 0.5°
Landing Distance 3281 feet
1000 meters
Takeoff Distance 3478 feet
1060 meters
Overrun Length 197 feet
60 meters
Overrun Surface ASPHALT
Lighting System HIRL
REIL
AI
PAPI

Navaids

MAGDEBURG
Type ID Channel Freq Country State
VOR-DME MAG 041Y 110.45 Germany -
Latitude Longitude Airport
51.994989
51° 59' 41.96" N
11.794306
011° 47' 39.50" E
EDOV

Navaids

MAGDEBURG
Type ID Channel Freq Country State
NDB MU - 367 Germany -
Latitude Longitude Airport
52.074078
52° 04' 26.68" N
11.648333
011° 38' 54.00" E
EDBM

Navaids

MAGDEBURG
Type ID Channel Freq Country State
DME MGD 101Y - Germany -
Latitude Longitude Airport
52.077131
52° 04' 37.67" N
11.630900
011° 37' 51.24" E
EDBM





The content above was published at Airports-Worldwide.com in 2005.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
