Sevilla Airport

Sevilla Airport photo

You will find Sevilla Airport about 10 kms north west of this thriving city.

Although Sevilla is the Capital of Andalucia which is home to the Costa Del Sol, Costa De La Luz, Cost Tropical and Costa Almeria, only around 20% of it's passengers traffic is from outside Spain.

Passenger numbers are climbing and in 2005 just over 3.2 million people passed through the airport compared to just 1.8 million back in 1999.

Getting from the Airport into the center of Sevilla is easy and quick. If you catch a taxi the journey will take you around 15 mins and costs between €15 and €22 depending on which time of day you travel. The taxi rank is just outside the terminal building.

Buses the airport and the City Center run every 30 minutes between 0615 and 2300. The journey takes between 20-30 minutes and a single ticket cost €2.30. For more information call 0034 902 210 317.

Sevilla Airport photo

You could also pre book your own private transfers online through Shuttle Direct.

If you hire a car from the airport you can drive down to Jerez in just under an hour, Marbella on the Costa del Sol in around 3 hours and even Faro in Portugal in around 2½ hours.

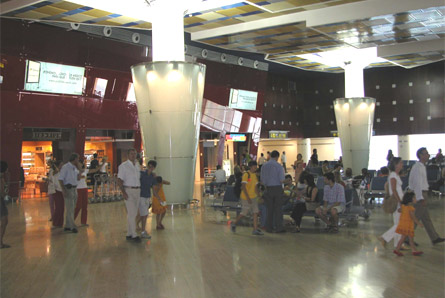

Within the arrivals hall there are 42 check in desks and 8 different boarding gates. In total there are seven shops and a couple of cafes at the airport. The largest shop is the Aldeasa shop that sells everthing from cigarettes to perfume.

History

In 1914 the first plane to fly between the peninsula and Morocco landed at the improvised aerodrome in Tablada - created the previous year for an air show - after the Seville town council provided a piece of land of 240,000 square metres to the Military Aviation Service for the construction of an aerodrome. The preparatory works started in 1915 and was used in the same year for pilot training and observers.

Sevilla Airport photo

In 1919 the first commercial flights between Seville and Madrid were carried out. The following year the airborne postal service between Seville and Larache was established and 1921 saw the first Spanish Seville-Larache commercial flight. In 1923 various facilities, hangers, workshops and offices were inaugurated and the construction was approved for a municipal airport in Tablada on the edge of the airfield of the military aerodrome and measuring 750 by 500 metres.

In April 1927, the Unión Aérea Española (Spanish Airways Union) established the Madrid-Seville-Lisbon route. In February 1929, the Seville airport project was approved and, in March, the Tablada aerodrome opened to air navigation and air traffic although this service would have to stop as soon as the airport project was constructed.

In 1929, the first Madrid-Seville flight took place and in 1930 it was extended to the Canary Islands. In February 1931 the Berlin-Barcelona route included Seville. In December 1933 LAPE started the Seville-Canaries route.

During the Civil War, Seville was the arrival point for African troops whilst Iberia provided air transport services with the Tetuán-Seville-Vitoria, Seville-Salamanca and Seville-Larache-Las Palmas routes.

Sevilla Airport photo

In September 1945, works began on the transoceanic airport of Seville, constructing runways 05-23, 02-20, and 09-27. One year later, it was registered as a customs point and the 05-23 and 02-20 runways were asphalted. In 1948, a direction finder was installed, the runway lighting completed and the runways were named 04-22, 18-36 and 09-27. In 1956, runway 09-27 was extended with the 18-36 runway becoming a taxiway.

In 1957, the works on the terminal building and the control tower were carried out. Seville airport was included in the Spanish-American Agreement in order to install a supply base. The facilities were placed close to the start of runway 04, taking it out of service.

In 1965, ILS was installed. Between 1971 and 1975 the terminal area was remodelled, extending the parking, constructing a new terminal building and developing and preparing new access routes.

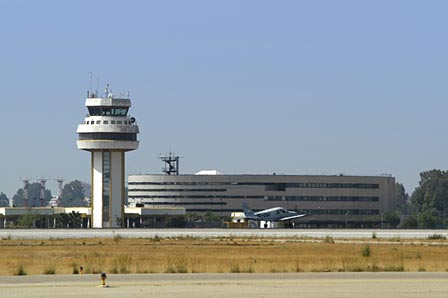

In 1989, with a view to the 1992 Universal EXPO, the platform was extended, a new access route from the N-IV national motorway was constructed as well as a new terminal building and a new control tower to the south of the runway. On 31 July, the new facilities were inaugurated.

Sevilla Airport photo

Sevilla Airport - AENA airport

Address:

Ctra Nal.1V

Madrid - Cadiz KM 532

41020 - Sevilla

Airport Code: SVQ

Telephone: 0034 954 449 000

URL: http://www.aena.es/sevilla

AENA accepts no responsibility for the information posted at this site neither for the possible damages caused for the use of this information.


Images and information placed above are from
http://www.aena.es/sevilla
Sevilla Airport
We thank them for the data!


General Info
Country Spain
ICAO ID LEZL
Time UTC+1(+2DT)
Latitude 37.418000
37° 25' 04.80" N
Longitude -5.893106
005° 53' 35.18" W
Elevation 111 feet
34 meters
Type Civil
Magnetic Variation 002° W (01/06)
Operating Agency CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
Alternate Name SAN PABLO
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
TWR 118.1
358.6
GND 121.7
ATIS 118.175
APP
Opr H24.
120.0
120.8
128.5
261.05


Runways
ID Dimensions Surface PCN ILS
09/27 11024 x 148 feet
3360 x 45 meters
ASPHALT 100FDWT YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
VOR-DME SVL SEVILLA 084X 113.7 6.3 NM 267.9
NDB SPP SEVILLA - 420 4.7 NM 273.4


Supplies/Equipment
Fuel Jet A1, without icing nhibitor.
Oil O-117, 1100, Reciprocating Engine Oil (MIL L 6082)


Remarks
CSTMS/IMG Avbl.
FUEL (NC-100LL, A1)
OIL 0-125
OPR HOURS Opr 0600-2330Z++ 3 hr PPR
RSTD NORDO proh.

Runway 09/27

11024 x 148 feet
3360 x 45 meters

Runway 09
Surface ASPHALT
True Heading 090.0
Latitude 37.417875
37° 25' 04.35" N
Longitude -5.912083
005° 54' 43.50" W
Elevation 83.0 feet
25 meters
Slope 0.3°
Landing Distance 11024 feet
3360 meters
Takeoff Distance 11024 feet
3360 meters
Lighting System CL
HIRL
J
PAPI

Runway 27
Surface ASPHALT
True Heading 270.0
Latitude 37.418003
37° 25' 04.81" N
Longitude -5.874103
005° 52' 26.77" W
Elevation 111.0 feet
34 meters
Slope -0.3°
Landing Distance 11024 feet
3360 meters
Takeoff Distance 11024 feet
3360 meters
Lighting System CL
HIRL
J
PAPI

Navaids

SEVILLA
Type ID Channel Freq Country State
VOR-DME SVL 084X 113.7 Spain -
Latitude Longitude Airport
37.427883
37° 25' 40.38" N
-5.762208
005° 45' 43.95" W
LEZL

Navaids

SEVILLA
Type ID Channel Freq Country State
NDB SPP - 420 Spain -
Latitude Longitude Airport
37.418058
37° 25' 05.01" N
-5.795517
005° 47' 43.86" W
LEZL

Sevilla Airport - AENA airport




The content above was published at Airports-Worldwide.com in 2006.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
