List of ISS spacewalks

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/List_of_ISS_spacewalks

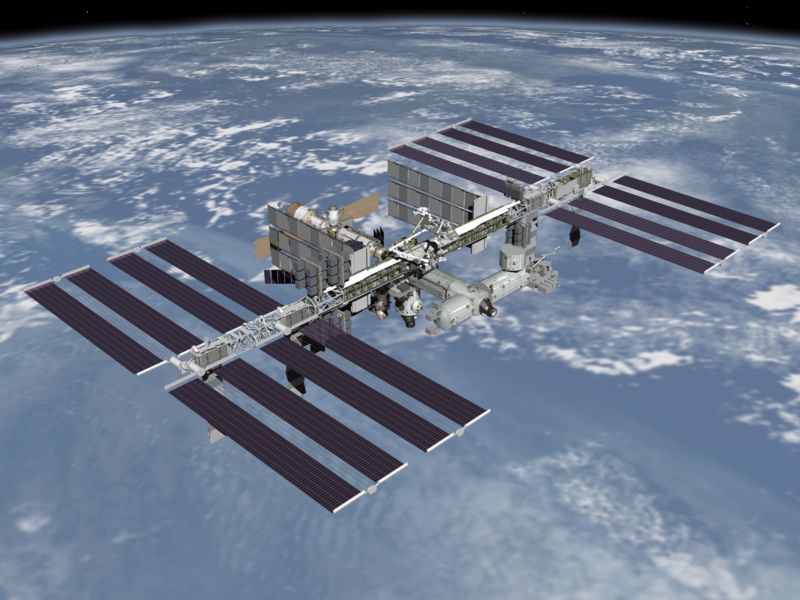

An artist's rendering of the fully assembled International Space Station, as it would appear from a spacecraft flying overhead

The International Space Station (ISS) is a research facility being assembled in space. The station is in a low Earth orbit about 350 km (190 mi) above the surface of the Earth, and can be seen from Earth with the naked eye. Assembly began in 1998, and is expected to continue through 2010. The ISS is a joint project of sixteen countries and six space agencies: the United States' National Aeronautics and Space Administration (NASA), Russian Federal Space Agency (RSA), Japan Aerospace Exploration Agency (JAXA), Canadian Space Agency (CSA/ASC), Brazilian Space Agency (AEB) and the European Space Agency (ESA).

Spacewalks for the support of the International Space Station are major milestones in the building and maintaining of the orbital laboratory. Spacewalks are performed to install new components to the station, to re-wire systems, modules, and equipment, and to monitor, install, and retrieve scientific experiments.

Due to the complexity of building a station in space, NASA and its partners train astronauts extensively, preparing them to encounter surprises during spacewalks, teaching them how to assemble special tools and equipment, and carefully coordinating every activity during spacewalks. From 1998 to 2005, thirty-seven space shuttle missions were scheduled to assemble, outfit and begin experiments and research aboard the station.

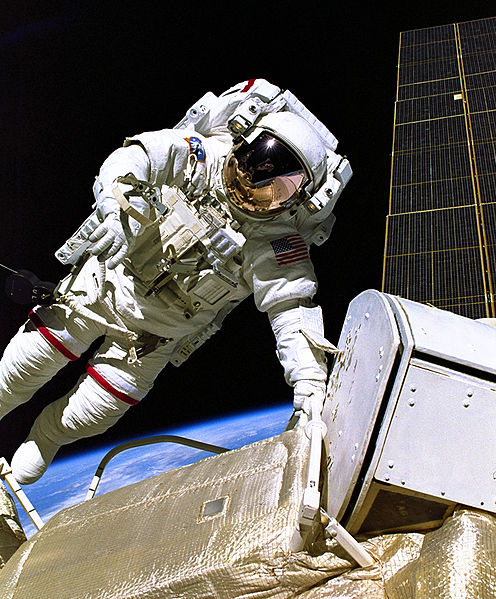

Jerry Ross during one of the first spacewalks that began assembly of the International Space Station

The initial spacewalk to begin the assembly of the International Space Station was held on December 7, 1998, following the launch of the first section of the station, Zarya, from Baikonur Cosmodrome, Kazakhstan, on November 20, 1998. The spacewalk attached the U.S. built Unity node to Zarya. The longest spacewalk was performed on March 11, 2001, when STS-102 crew members Susan J. Helms and James S. Voss conducted a full spacewalk, and then returned to the airlock, but remained in their suits ready to exit the airlock again in case the robotics operations ran into problems. The total time for that spacewalk was eight hours and fifty-six minutes.

As of June 10, 2009, there have been 125 spacewalks devoted to assembly and maintenance of the International Space Station. A total time of 780 hours and six minutes has been spent in extra-vehicular activity (EVA), with 97 of these EVAs performed from the station, totaling 579 hours and 42 minutes in spacewalk time from the station itself.

Twenty-eight spacewalks have been performed from a shuttle, sixty-eight from the Quest Joint Airlock, twenty-seven from the Pirs docking compartment, and two from the transfer compartment at the forward end of the Zvezda Service Module.
‡ denotes spacewalks performed from the Pirs docking compartment in Russian Orlan suits.
† denotes spacewalks performed from the visiting space shuttle's airlock.
All other spacewalks were performed from the Quest airlock.
ISS Expedition spacewalks are separated from shuttle spacewalks by a separator.

1998–1999

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
1.	STS-88 EVA 1 †	Jerry L. Ross James H. Newman	December 7, 1998 22:10	December 8, 1998 05:31	7 hours, 21 minutes
1.	STS-88 EVA 1 †	Connected computer and electrical cables between the Unity node, the two mating adapters attached to either end of Unity, and the Zarya Functional Cargo Block (FCB).^[12]
2.	STS-88 EVA 2 †	Jerry L. Ross James H. Newman	December 9, 1998 20:33	December 10, 1998 03:35	7 hours, 02 minutes
2.	STS-88 EVA 2 †	Installed two box-like antennas on the outside of the Unity module that are part of the S-band early communications system.^[19]
3.	STS-88 EVA 3 †	Jerry L. Ross James H. Newman	December 12, 1998 20:33	December 13, 1998 03:32	6 hours, 59 minutes
3.	STS-88 EVA 3 †	Checked on an insulation cover on a cable connection on the lower Pressurized Mating Adapter (PMA 2) to make sure it is fully installed, attached EVA tools on the side of Unity's upper mating adapter (PMA 1) in preparation for future EVAs, and inspected Orbiter Space Vision System targets on Unity.^[20]
4.	STS-96 †	Tamara E. Jernigan Daniel T. Barry	May 30, 1999 02:56	May 30, 1999 10:51	7 hours, 55 minutes
4.	STS-96 †	Transferred and installed two cranes from the shuttle's payload bay to locations on the outside of the station. Installed two new portable foot restraints that will fit both American and Russian space boots, and attached three bags filled with tools and handrails that will be used during future assembly operations.^[21]

2000

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
5.	STS-101 †	James S. Voss Jeffrey N. Williams	May 22, 2000 01:48	May 22, 2000 08:32	6 hours, 44 minutes
5.	STS-101 †	Inspected and secured U.S.-built cargo crane known as the Orbital Replacement Unit Transfer Device, completed assembly of a Russian cargo crane called Strela, and replaced one of Unity's two early communication antennas.^[22]^[23]
6.	STS-106 †	Edward T. Lu Yuri Ivanovich Malenchenko	September 11, 2000 04:47	September 11, 2000 11:01	6 hours, 14 minutes
6.	STS-106 †	Attached cabling that integrated the Zvezda module fully to the rest of the ISS, and constructed and attached a magnetometer that serves as a backup navigation system for the station.^[24]
7.	STS-92 EVA 1 †	Leroy Chiao William S. McArthur	October 15, 2000 14:27	October 15, 2000 20:55	6 hours, 28 minutes
7.	STS-92 EVA 1 †	Connected two sets of cables to provide power to heaters and conduits located on the Z1 truss, relocated two communication antenna assemblies, and installed a toolbox for use during future on-orbit construction.^[25]
8.	STS-92 EVA 2 †	Michael E. Lopez-Alegria Peter J.K. Wisoff	October 16, 2000 14:15	October 16, 2000 21:22	7 hours, 07 minutes
8.	STS-92 EVA 2 †	Installed the Pressurized Mating Adapter (PMA)-3 docking port, and prepared the Z1 truss for the installation of the solar arrays.^[26]
9.	STS-92 EVA 3 †	Leroy Chiao William S. McArthur	October 17, 2000 14:30	October 17, 2000 21:18	6 hours, 48 minutes
9.	STS-92 EVA 3 †	Installed two DC-to-DC converter units atop the station's Z1 Truss.^[27]
10.	STS-92 EVA 4 †	Michael E. Lopez-Alegria Peter J.K. Wisoff	October 18, 2000 15:00	October 18, 2000 21:56	6 hours, 56 minutes
10.	STS-92 EVA 4 †	Removed a grapple fixture on the Z1 truss, deployed a Z1 utility tray, Manual Berthing Mechanism latches for Z1 were cycled and opened, and demonstrated the Simplified Aid for EVA Rescue (SAFER) pack's abilities.^[28]^[29]
11.	STS-97 EVA 1 †	Joseph R. Tanner Carlos I. Noriega	December 3, 2000 18:35	December 4, 2000 02:08	7 hours, 33 minutes
11.	STS-97 EVA 1 †	Attached the P6 truss to the Z1 Truss, and prepared the solar arrays for deployment. Prepared the radiator for the power system deployment.^[30]^[31]
12.	STS-97 EVA 2 †	Joseph R. Tanner Carlos I. Noriega	December 5, 2000 17:21	December 5, 2000 23:58	6 hours, 37 minutes
12.	STS-97 EVA 2 †	Configured the space station to use power from the P6. Positioned the S-band antenna for use by the space station. Prepared the station for the arrival of the U. S. Laboratory, Destiny.^[32]
13.	STS-97 EVA 3 †	Joseph R. Tanner Carlos I. Noriega	December 7, 2000 16:13	December 7, 2000 21:23	5 hours, 10 minutes
13.	STS-97 EVA 3 †	Positioned a floating potential probe to measure the plasma field surrounding the space station, performed repair work to increase tension in the starboard solar array blankets that did not stretch out completely during deployment, and installed a centerline camera cable outside the Unity node.^[33]

2001

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
14.	STS-98 EVA 1 †	Thomas D. Jones Robert L. Curbeam	February 10, 2001 15:50	February 10, 2001 23:24	7 hours, 34 minutes
14.	STS-98 EVA 1 †	Removed protective launch covers and disconnected power and cooling cables between Destiny and Atlantis, while crewmembers inside moved the 3,800 cubic foot laboratory from the payload bay to its home on the Unity node. Curbeam and Jones then connected electrical, data and cooling lines to the lab, during which a small amount of ammonia crystals leaked from one of the hoses, prompting a decontamination procedure.^[34]^[35]
15.	STS-98 EVA 2 †	Thomas D. Jones Robert L. Curbeam	February 12, 2001 15:59	February 12, 2001 22:49	6 hours, 50 minutes
15.	STS-98 EVA 2 †	Installed the shuttle docking adapter onto Destiny, installed insulating covers over the pins that held Destiny in place during launch, attached a vent to the lab's air system, installed handrails and sockets on the exterior of Destiny, and attached a base for the future space station robotic arm.^[36]
16.	STS-98 EVA 3 †	Thomas D. Jones Robert L. Curbeam	February 14, 2001 14:48	February 14, 2001 20:13	5 hours, 25 minutes
16.	STS-98 EVA 3 †	Attached a spare communications antenna to the station, double-checked connections between the Destiny lab and its docking port, released a cooling radiator on the station, inspected solar array connections at the top of the station, and tested the ability of a spacewalker to carry an immobile crew member back to the shuttle airlock. This was the 100th U.S. spacewalk.^[37]
17.	STS-102 EVA 1 †	James S. Voss Susan J. Helms	March 11, 2001 05:12	March 11, 2001 14:08	8 hours, 56 minutes
17.	STS-102 EVA 1 †	Prepared Pressurized Mating Adapter-3 for repositioning from Unity’s Earth-facing berth to the port-side berth to make room for Leonardo, the Italian Space Agency-built Multi-Purpose Logistics Module. Removed a Lab Cradle Assembly from the shuttle's cargo bay and installed it on the side of Destiny, and installed a cable tray to Destiny for later use by the station’s robot arm. After re-entering the shuttle's airlock, Voss and Helms remained ready to assist if any troubles installing the docking port were encountered by the crew inside the shuttle. Longest space walk in shuttle history.^[13]
18.	STS-102 EVA 2 †	Andrew S. W. Thomas Paul W. Richards	March 13, 2001 05:23	March 13, 2001 11:44	6 hours, 21 minutes
18.	STS-102 EVA 2 †	Installed an External Stowage Platform for spare station parts, attached a spare ammonia coolant pump to the platform, finished connecting several cables put in place on the first EVA for the station's robotic arm. Inspected a Unity node heater connection, and inspected of an exterior experiment, the Floating Potential Probe.^[38]
19.	STS-100 EVA 1 †	Chris Hadfield Scott E. Parazynski	April 22, 2001 11:45	April 22, 2001 18:55	7 hours, 10 minutes
19.	STS-100 EVA 1 †	Installed the station's UHF antenna, and the Canadian Space Agency made Canadarm2. Connected cables to give the arm power and allow it to accept computer commands from inside the lab. Hadfield became the first Canadian spacewalker.^[39]
20.	STS-100 EVA 2 †	Chris Hadfield Scott E. Parazynski	April 24, 2001 12:34	April 24, 2001 20:14	7 hours, 40 minutes
20.	STS-100 EVA 2 †	Connected the Power and Data Grapple Fixture circuits for Canadarm2 onto Destiny, removed an early communications antenna, transferred a spare Direct Current Switching Unit from the shuttle's payload bay to an equipment storage rack on the outside of Destiny.^[40]

21.	Expedition 2	Yury Usachev James Voss	June 8, 2001 14:21	June 8, 2001 14:40	0 hours, 19 minutes
21.	Expedition 2	Installed the docking cone onto the Zarya module, in preparation for the arrival of the Russian Pirs docking compartment. Only EVA to be conducted from the transfer compartment at the forward end of the Zvezda Service Module.^[41]

22.	STS-104 EVA 1 †	Michael L. Gernhardt James F. Reilly	July 15, 2001 03:10	July 15, 2001 09:09	5 hours, 59 minutes
22.	STS-104 EVA 1 †	Installed the Quest Joint Airlock onto the Unity node.^[42]^[43]^[44]
23.	STS-104 EVA 2 †	Michael L. Gernhardt James F. Reilly	July 18, 2001 03:04	July 18, 2001 09:33	6 hours, 29 minutes
23.	STS-104 EVA 2 †	Installed one of two high-pressure nitrogen tanks, and one of two high-pressure oxygen tanks onto Quest, and installed grapple fixture and trunion covers.^[42]^[44]^[45]
24.	STS-104 EVA 3	Michael L. Gernhardt James F. Reilly	July 21, 2001 04:35	July 21, 2001 08:37	4 hours, 02 minutes
24.	STS-104 EVA 3	First EVA conducted from the Quest airlock. Installed the second high-pressure nitrogen tank, and the second oxygen tank onto the Quest airlock.^[44]^[46]^[47]
25.	STS-105 EVA 1 †	Daniel T. Barry Patrick G. Forrester	August 16, 2001 13:58	August 16, 2001 20:14	6 hours, 16 minutes
25.	STS-105 EVA 1 †	Installed an Early Ammonia Servicer onto the station's P6 truss, co-location of the foot restraint in a stowed location, and installed the Materials International Space Station Experiment(MISSE)-1 and 2 containers onto the Quest airlock.^[48]^[49]
26.	STS-105 EVA 2 †	Daniel T. Barry Patrick G. Forrester	August 18, 2001 13:42	August 18, 2001 19:11	5 hours, 29 minutes
26.	STS-105 EVA 2 †	Installed heater cables and handrails onto the station's Destiny laboratory.^[48]^[49]

27.	Expedition 3 EVA 1 ‡	Vladimir Dezhurov Mikhail Tyurin	October 8, 2001 14:24	October 8, 2001 19:22	4 hours, 58 minutes
27.	Expedition 3 EVA 1 ‡	Installed cables between the Pirs docking compartment, and the Zvezda module to allow spacewalk radio communications between the two sections. Installed handrails onto Pirs, and installed an exterior ladder to assist spacewalkers leaving Pirs. Installed a Strela cargo crane.^[50]
28.	Expedition 3 EVA 2 ‡	Vladimir Dezhurov Mikhail Tyurin	October 15, 2001 09:17	October 15, 2001 15:08	5 hours, 51 minutes
28.	Expedition 3 EVA 2 ‡	Installed Russian commercial experiments (MPAC-SEEDS) onto the exterior of the Pirs docking compartment.^[50]
29.	Expedition 3 EVA 3 ‡	Vladimir Dezhurov Frank Culbertson	November 12, 2001 21:41	November 13, 2001 02:46	5 hours, 05 minutes
29.	Expedition 3 EVA 3 ‡	Connected cables on the exterior of Pirs for the Kurs automated docking system, completed checks of the Strela cargo crane, and inspected and photographed a panel of a solar array on Zvezda that had a portion of a panel not fully unfolded.^[50]
30.	Expedition 3 EVA 4 ‡	Vladimir Dezhurov Mikhail Tyurin	December 3, 2001 13:20	December 3, 2001 16:06	2 hours, 46 minutes
30.	Expedition 3 EVA 4 ‡	Removed an obstruction that prevented a Progress resupply ship from firmly docking with the station, and took pictures of the debris and of the docking interface.^[50]

31.	STS-108 †	Linda M. Godwin Daniel M. Tani	December 10, 2001 17:52	December 10, 2001 22:04	4 hours, 12 minutes
31.	STS-108 †	Installed insulating blankets around two Beta Gimbal Assemblies that rotate the station's solar array wings, and performed get-ahead tasks in preparation for STS-110's spacewalks.^[51]^[52]^[53]

2002

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
32.	Expedition 4 EVA 1 ‡	Yury Onufrienko Carl E. Walz	January 14, 2002 20:59	January 15, 2002 03:02	6 hours, 03 minutes
32.	Expedition 4 EVA 1 ‡	Moved the cargo boom for the Russian Strela crane from PMA1 to the exterior of the Pirs docking compartment, installed an amateur radio antenna onto the end of Zvezda.^[54]
33.	Expedition 4 EVA 2 ‡	Yury Onufrienko Daniel W. Bursch	January 25, 2002 15:19	January 25, 2002 21:18	5 hours, 59 minutes
33.	Expedition 4 EVA 2 ‡	Installed six deflector shields for Zvezda's jet thrusters, installed a second amateur radio antenna, attached four science experiments, and retrieved and replaced a device to measure material from the thrusters.^[54]
34.	Expedition 4 EVA 3	Carl E. Walz Daniel W. Bursch	February 20, 2002 11:38	February 20, 2002 17:25	5 hours, 47 minutes
34.	Expedition 4 EVA 3	Tested the Quest airlock, and prepared it for the four spacewalks that will be performed during STS-110. The first spacewalk to be based out of Quest without a space shuttle at the station.^[54]

35.	STS-110 EVA 1	Steven L. Smith Rex J. Walheim	April 11, 2002 14:36	April 11, 2002 22:24	7 hours, 48 minutes
35.	STS-110 EVA 1	Began installing the S0 Truss onto Destiny, initial power and data connections installed between the station and S0, and installed two forward struts that permanently hold the truss in place.^[55]
36.	STS-110 EVA 2	Jerry L. Ross Lee M.E. Morin	April 13, 2002 14:09	April 13, 2002 21:39	7 hours, 30 minutes
36.	STS-110 EVA 2	Continued S0 Truss installation, power and data cable connections installed between S0 and the station, and installed two aft struts that permanently hold the truss in place.^[55]
37.	STS-110 EVA 3	Steven L. Smith Rex J. Walheim	April 14, 2002 13:48	April 14, 2002 20:15	6 hours, 27 minutes
37.	STS-110 EVA 3	Released the claw that was used in the initial attachment of the S0 Truss, installed connectors that will be used to route power to Canadarm2 when it is on the truss, released launch restraints from the Mobile Transporter, and removed a small thermal cover the Mobile Transporter's radiator.^[55]
38.	STS-110 EVA 4	Jerry L. Ross Lee M.E. Morin	April 16, 2002 14:29	April 16, 2002 21:06	6 hours, 37 minutes
38.	STS-110 EVA 4	Pivoted the "Airlock Spur", which will be used by spacewalkers in the future as a path from the airlock to the truss, installed handrails onto S0, partially assembled a platform, and installed two floodlights.^[55]^[56]
39.	STS-111 EVA 1	Franklin Chang-Diaz Philippe Perrin	June 9, 2002 15:27	June 9, 2002 22:41	7 hours, 14 minutes
39.	STS-111 EVA 1	Attached a Power and Data Grapple Fixture to the P6 truss, removed debris panels from Endeavour's payload bay and attached them to a temporary location on PMA1, and removed thermal blankets to prepare the Mobile Base System (MBS) for installation onto the station's Mobile Transporter.^[57]^[58]
40.	STS-111 EVA 2	Franklin Chang-Diaz Philippe Perrin	June 11, 2002 15:20	June 11, 2002 20:20	5 hours, 00 minutes
40.	STS-111 EVA 2	Attached Mobile Base System to the Mobile Transporter, attached power, data and video cables from the station to the MBS.^[57]^[59]
41.	STS-111 EVA 3	Franklin Chang-Diaz Philippe Perrin	June 13, 2002 15:16	June 13, 2002 22:33	7 hours, 17 minutes
41.	STS-111 EVA 3	Replaced Canadarm2's wrist roll joint, and stowed the old joint in the shuttle's payload bay to be returned to Earth.^[57]^[60]

42.	Expedition 5 EVA 1 ‡	Valery Korzun Peggy Whitson	August 16, 2002 09:25	August 16, 2002 13:48	4 hours, 23 minutes
42.	Expedition 5 EVA 1 ‡	Installed six micro meteoroid debris panels onto Zvezda.^[61]
43.	Expedition 5 EVA 2 ‡	Valery Korzun Sergei Treshchev	August 26, 2002 05:27	August 26, 2002 10:48	5 hours, 21 minutes
43.	Expedition 5 EVA 2 ‡	Installed a frame on the outside of Zarya for spacewalk assembly tasks, installed new samples on a pair of Japanese Space Agency experiments housed on Zvezda, installed devices on Zvezda that would simplify the routing of tethers during future spacewalks, and installed two additional ham radio antennas on Zvezda.^[61]

44.	STS-112 EVA 1	David A. Wolf Piers J. Sellers	October 10, 2002 15:21	October 10, 2002 22:22	7 hours, 01 minutes
44.	STS-112 EVA 1	Released launch locks that held the S1 truss radiators in place during launch, attached power, data and fluid lines between the S1 truss and S0, deployed the station's second S-Band communications system, installed the first of two external camera systems, and released launch restraints on the truss' mobile spacewalk workstation, Crew and Equipment Translation Aid (CETA).^[62]^[63]
45.	STS-112 EVA 2	David A. Wolf Piers J. Sellers	October 12, 2002 14:31	October 12, 2002 20:35	6 hours, 04 minutes
45.	STS-112 EVA 2	Installed a second camera system, released more radiator launch locks, removed insulation covers on quick-disconnect fittings near the Z1 and P6 junction and to install Spool Positioning Devices, released starboard-side launch restraints on the CETA cart, and attached Ammonia Tank Assembly cables.^[62]^[64]
46.	STS-112 EVA 3	David A. Wolf Piers J. Sellers	October 14, 2002 14:08	October 14, 2002 20:44	6 hours, 36 minutes
46.	STS-112 EVA 3	Removed and replaced the Interface Umbilical Assembly on the station's Mobile Transporter, installed two jumpers that will allow ammonia coolant to flow between the S1 and S0 Trusses, released a drag link and stowed it, and installed Spool Positioning Devices (SPD) on ammonia lines.^[62]^[65]
47.	STS-113 EVA 1	Michael Lopez-Alegria John Herrington	November 26, 2002 19:49	November 27, 2002 02:34	6 hours, 45 minutes
47.	STS-113 EVA 1	Initial installation of the P1 truss, installed connections between the P1 and the S0 truss, released launch restraints on the CETA cart, installed Spool Positioning Devices (SPDs) onto the station, removed a drag link on P1 that served as a launch restraint, and installed a Wireless video system External Transceiver Assembly onto the Unity node.^[66]^[67]
48.	STS-113 EVA 2	Michael Lopez-Alegria John Herrington	November 28, 2002 18:36	November 29, 2002 00:46	6 hours, 10 minutes
48.	STS-113 EVA 2	Installed fluid jumpers where the S0 and the P1 are attached to each other, removed the P1's starboard keel pin, installed another Wireless video system External Transceiver Assembly onto the P1, and relocated the CETA cart from the P1to the S1 truss.^[66]^[68]
49.	STS-113 EVA 3	Michael Lopez-Alegria John Herrington	November 30, 2002 19:25	December 1, 2002 02:25	7 hours, 00 minutes
49.	STS-113 EVA 3	Installed more Spool Positioning Devices, reconfigured electrical harnesses that route power through the Main Bus Switching Units, and attached Ammonia Tank Assembly lines.^[66]^[69]

2003

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
50.	Expedition 6 EVA 1	Kenneth Bowersox Donald Pettit	January 15, 2003 12:50	January 15, 2003 19:41	6 hours, 51 minutes
50.	Expedition 6 EVA 1	Released the remaining launch locks on the P1 radiator assembly, removed debris on a sealing ring of Unity's docking port, and tested an ammonia reservoir on the station's P6 truss.^[70]
51.	Expedition 6 EVA 2	Kenneth Bowersox Donald Pettit	April 8, 2003 12:40	April 8, 2003 19:06	6 hours, 26 minutes
51.	Expedition 6 EVA 2	Reconfigured cables on the S0 (S-Zero), S1 and P1 trusses, replaced a Power Control Module on the Mobile Transporter, installed Spool Positioning Devices on Destiny, and reinstalled a thermal cover on an S1 Radiator Beam Valve Module.^[70]

2004

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
52.	Expedition 8 ‡	Michael Foale Alexander Kaleri	February 26, 2004 21:17	February 27, 2004 01:12	3 hours, 55 minutes
52.	Expedition 8 ‡	Replaced cassette containers that held sample materials for a microgravity experiment, attached the Russian experiment Matryoshka to Zvezda, and removed a JAXA micro-meteor impact experiment. Spacewalk was cut short due a cooling system malfunction in Kaleri's spacesuit.^[71]
53.	Expedition 9 EVA 1 ‡	Gennady Padalka Edward Fincke	June 24, 2004 21:56	June 24, 2004 22:10	0 hours, 14 minutes
53.	Expedition 9 EVA 1 ‡	Spacewalk cut short due to a pressure problem in Fincke's prime oxygen tank in his spacesuit. Mission managers decided to reschedule the spacewalk for June 30.^[72]^[73]
54.	Expedition 9 EVA 2 ‡	Gennady Padalka Edward Fincke	June 30, 2004 21:19	July 1, 2004 02:59	5 hours, 40 minutes
54.	Expedition 9 EVA 2 ‡	Replaced a Remote Power Controller (RPC) that failed in late April, causing a loss of power in Control Moment Gyroscope No. 2 (CMG 2).^[72]^[74]
55.	Expedition 9 EVA 3 ‡	Gennady Padalka Edward Fincke	August 3, 2004 06:58	August 3, 2004 11:28	4 hours, 30 minutes
55.	Expedition 9 EVA 3 ‡	Removed laser retro reflectors from the Zvezda assembly compartment, and installed three updated laser retro reflectors and one internal videometer target in preparation for the Automated Transfer Vehicle (ATV). Installed two antennas, and removed and replaced Kromka experiment packages.^[72]^[75]
56.	Expedition 9 EVA 4 ‡	Gennady Padalka Edward Fincke	September 3, 2004 16:43	September 3, 2004 22:04	5 hours, 20 minutes
56.	Expedition 9 EVA 4 ‡	Replaced the Zarya Control Module flow control panel, installed four safety tether fairleads on Zarya's handrails, installed three communications antennas, and removed covers from the antennas.^[72]^[76]

2005

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
57.	Expedition 10 EVA 1 ‡	Leroy Chiao Salizhan Sharipov	January 26, 2005 07:43	January 26, 2005 13:11	5 hours, 28 minutes
57.	Expedition 10 EVA 1 ‡	Completed the installation of the Universal Work Platform, mounted the European commercial experiment Rokviss (Robotic Components Verification on ISS) and its antenna, installed the Russian Biorisk experiment, and relocated a Japanese exposure experiment.^[77]^[78]
58.	Expedition 10 EVA 2 ‡	Leroy Chiao Salizhan Sharipov	March 28, 2005 06:25	March 28, 2005 10:55	4 hours, 30 minutes
58.	Expedition 10 EVA 2 ‡	Installed navigational and communications equipment for the arrival of the first Automated Transfer Vehicle (ATV), and deployed an 11-pound Russian Nanosatellite.^[77]^[79]

59.	STS-114 EVA 1 †	Soichi Noguchi Stephen K. Robinson	July 30, 2005 09:48	July 30, 2005 17:36	6 hours, 50 minutes
59.	STS-114 EVA 1 †	Demonstrated shuttle thermal protection repair techniques and enhancements to the Station’s attitude control system. installed a base and cabling for an External Stowage Platform, rerouted power to Control Moment Gyroscope-2 (CMG-2), retrieved two exposure experiments, and replaced a faulty global positioning system antenna on the station.^[80]
60.	STS-114 EVA 2 †	Soichi Noguchi Stephen K. Robinson	August 1, 2005 08:42	August 1, 2005 15:56	7 hours, 14 minutes
60.	STS-114 EVA 2 †	Removed faulty CMG-1 from the Z1 truss, installed faulty CMG-1 into Discovery's payload bay, and installed new CMG-1 onto the Z1 truss segment.^[81]^[82]
61.	STS-114 EVA 3 †	Soichi Noguchi Stephen K. Robinson	August 3, 2005 08:48	August 3, 2005 14:49	6 hours, 1 minute
61.	STS-114 EVA 3 †	Photographed and inspected Discovery’s heat shield, removed two protruding gap fillers from between tiles in the forward area of the orbiter’s underside, and installed amateur radio satellite PCSAT2.^[83]

62.	Expedition 11 EVA 1 ‡	Sergei Krikalev John Phillips	August 18, 2005 19:02	August 19, 2005 00:00	4 hours, 58 minutes
62.	Expedition 11 EVA 1 ‡	Retrieved one of three canisters from the Biorisk experiment, removed Micro-Particles Capturer experiment and Space Environment Exposure Device from Zvezda, retrieved Matroska experiment, installed an Automated Transfer Vehicle (ATV) docking television camera.^[84]^[85]
63.	Expedition 12 EVA 1	William S. McArthur Valery Tokarev	November 7, 2005 15:32	November 7, 2005 20:54	5 hours, 22 minutes
63.	Expedition 12 EVA 1	Installed and setup the P1 Truss camera, retrieved a failed Rotary Joint Motor Controller (RJMC), jettisoned a Floating Potential Probe, and removed and replaced a remote power controller module on the Mobile Transporter. First Quest airlock-based spacewalk since April 2003.^[86]

2006

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
64.	Expedition 12 EVA 2 ‡	William S. McArthur Valery Tokarev	February 3, 2006 9:55	February 3, 2006 16:27	5 hours, 43 minutes
64.	Expedition 12 EVA 2 ‡	Released SuitSat-1, retrieved the Biorisk experiment, photographed a sensor for a micrometeoroid experiment, relocated an adapter for a small crane, and tied off the surviving umbilical of the Mobile Transporter.^[87]
65.	Expedition 13 EVA 1 ‡	Pavel Vinogradov Jeffrey Williams	June 1, 2006 23:48	June 2, 2006 06:19	6 hours, 31 minutes
65.	Expedition 13 EVA 1 ‡	Repaired a vent for the station's oxygen-producing Elektron unit, retrieved a Biorisk experiment, retrieved a contamination-monitoring device from Zvezda, and replaced a malfunctioning camera on the Mobile Base System.^[88]

66.	STS-121 EVA 1	Piers Sellers Michael E. Fossum	July 8, 2006 13:17	July 8, 2006 20:48	7 hours, 31 minutes
66.	STS-121 EVA 1	Installed a blade blocker in the zenith Interface Umbilical Assembly (IUA) to protect the undamaged power, data and video cable, rerouted the cable to prepare for the second EVA. Tested the combination of the Space Shuttle Remote Manipulator System (SSRMS) and the Orbiter Boom Sensor System (OBSS) as a platform for astronauts to make repairs to a damaged orbiter.^[89]
67.	STS-121 EVA 2	Piers Sellers Michael E. Fossum	July 10, 2006 12:14	July 10, 2006 19:01	6 hours, 47 minutes
67.	STS-121 EVA 2	Restored the International Space Station’s Mobile Transporter rail car to full operation, and delivered a spare pump module for the station’s cooling system. Sellers' SAFER pack came loose during the EVA, requiring Fossum to stop twice during the spacewalk to secure the pack with safety tethers.^[90]
68.	STS-121 EVA 3	Piers Sellers Michael E. Fossum	July 12, 2006 7:11	July 12, 2006 13:31	6 hours, 20 minutes
68.	STS-121 EVA 3	Used an infrared camera to shoot 20 seconds of video of selected reinforced carbon-carbon (RCC) panels on the shuttle wing’s leading edge, and then moved to the payload bay to test a shuttle tile repair material known as NOAX on pre-damaged shuttle tiles that were flown in a test container.^[91]

69.	Expedition 13 EVA 2	Jeffrey Williams Thomas Reiter	August 3, 2006 14:04	August 3, 2006 19:58	5 hours, 54 minutes
69.	Expedition 13 EVA 2	Installed: The Floating Potential Measurement Unit (FPMU), two materials on Materials International Space Station Experiment (MISSE) containers, a controller for a thermal radiator rotary joint on the S1 truss, a starboard jumper and spool positioning device (SPD) on S1, a light on the truss railway handcart, and installed and replaced a malfunctioning GPS antenna. Tested an infrared camera designed to detect damage in a shuttle's reinforced carbon-carbon (RCC) thermal protection tiles. Inspection and photography of a scratch on the Quest airlock hatch.^[92]

70.	STS-115 EVA 1	Joe Tanner Heidemarie Stefanyshyn-Piper	September 12, 2006 10:17	September 12, 2006 15:43	5 hours, 26 minutes
70.	STS-115 EVA 1	Initial installation of the P3/P4 truss onto the space station. Connected power cables on the truss, released the launch restraints on the solar array blanket box, the Beta Gimbal Assembly, and the solar array wings. Configured the Solar Alpha Rotary Joint (SARJ), and removed two circuit interrupt devices to prepare for STS-116. Piper became the seventh American woman to conduct a spacewalk.^[93]
71.	STS-115 EVA 2	Dan Burbank Steve MacLean	September 13, 2006 9:05	September 13, 2006 16:16	7 hours, 11 minutes
71.	STS-115 EVA 2	Continued installation of the P3/4 truss onto the station, and activated the SARJ.^[94]
72.	STS-115 EVA 3	Joe Tanner Heidemarie Stefanyshyn-Piper	September 15, 2006 10:00	September 15, 2006 16:42	6 hours, 42 minutes
72.	STS-115 EVA 3	Installed a radiator onto the P3/4 truss, powered up a cooling radiator for the new solar arrays, replaced an S-Band radio antenna, and installed insulation for another antenna. Tanner took photos of the shuttle’s wings using an infrared camera to test the camera's ability to detect damage.^[95]

73.	Expedition 14 EVA 1 ‡	Mikhail Tyurin Michael Lopez-Alegria	November 22, 2006 23:17	November 23, 2006 04:55	5 hours, 38 minutes
73.	Expedition 14 EVA 1 ‡	"Orbiting golf shot" event sponsored by a Canadian golf company through the Russian Federal Space Agency. Lopez-Alegria put the tee on the ladder outside Pirs, while Tyurin set up a camera, and then performed the golf shot. Inspected and photographed a Kurs antenna on Progress 23, relocated an Automated Transfer Vehicle (ATV) WAL antenna, installed a BTN neutron experiment, and jettisoned two thermal covers from the BTN.^[96]

74.	STS-116 EVA 1	Robert Curbeam Christer Fuglesang	December 12, 2006 20:31	December 13, 2006 03:07	6 hours, 36 minutes
74.	STS-116 EVA 1	Installed the ISS P5 Truss, and replaced a video camera on the S1 truss.^[97]
75.	STS-116 EVA 2	Robert Curbeam Christer Fuglesang	December 14, 2006 19:41	December 15, 2006 00:41	5 hours, 00 minutes
75.	STS-116 EVA 2	Reconfigured the station's electrical wiring, channels 2–3 on the P3/P4 truss to take advantage of the new solar arrays, relocated two handcarts that run along rails on the station’s main truss, put a thermal cover on the station’s robotic arm, and installed bags of tools for future spacewalkers.^[98]
76.	STS-116 EVA 3	Robert Curbeam Sunita Williams	December 16, 2006 19:25	December 17, 2006 02:57	7 hours, 31 minutes
76.	STS-116 EVA 3	Completed rewiring the station's electrical system, circuits 1 and 4, to take advantage of the P3/P4 solar array power, installed a robotic arm grapple fixture, and positioned three bundles of Russian debris shield panels outside Zvezda. Additional time was spent trying to help retract the P6 solar array panel by shaking the panel's blanket box from its base. (Williams became the 8th American woman to perform an EVA, and the 9th woman spacewalker.)^[99]
77.	STS-116 EVA 4	Robert Curbeam Christer Fuglesang	December 18, 2006 19:00	December 19, 2006 01:38	6 hours, 38 minutes
77.	STS-116 EVA 4	Assisted ground controllers with retracting the P6 solar array panels. Curbeam, on his seventh spacewalk, set a single-flight EVA record with four spacewalks in a single shuttle mission.^[100]

2007

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
78.	Expedition 14 EVA 2	Michael Lopez-Alegria Sunita Williams	January 31, 2007 15:14	January 31, 2007 23:09	7 hours 55 minutes
78.	Expedition 14 EVA 2	Reconfigured one of the two cooling loops serving Destiny from the temporary to permanent system, connected a cable for the Station-to-Shuttle Power Transfer System (SSPTS), installed six cable cinches and two winch bars to secure the starboard radiator of the P6 Truss, and then installed a shroud over it. Removed one of two fluid lines from the Early Ammonia Servicer (EAS) on the P6 Truss. The EAS would be jettisoned during a later EVA.^[101]
79.	Expedition 14 EVA 3	Michael Lopez-Alegria Sunita Williams	February 4, 2007 13:38	February 4, 2007 20:49	7 hours, 11 minutes
79.	Expedition 14 EVA 3	Reconfigured the second of the two cooling loops serving Destiny from the temporary to permanent system, completed work with the Early Ammonia Servicer (EAS) on the P6 Truss, photographed the inboard end of the P6 starboard solar wing in preparation for its retraction during STS-117, removed a sunshade from a multiplexer-demultiplexer data relay device, and continued work on the SSPTS.^[102]
80.	Expedition 14 EVA 4	Michael Lopez-Alegria Sunita Williams	February 8, 2007 13:26	February 8, 2007 20:06	6 hours, 40 minutes
80.	Expedition 14 EVA 4	Removed two thermal shrouds on two Rotary Joint Motor Controllers (RJMC) on the P3 truss, removed two large shrouds from P3 Bays 18 and 20, and jettisoned the shrouds away from the station. Deployed an Unpressurized Cargo Carrier Assembly Attachment System (UCCAS) on the upper face of the P3 truss, removed two launch locks from the P5 truss, and connected four cables of the SSPTS to the Pressurized Mating Adapter (PMA-2) at the forward end of Destiny where shuttles dock.^[103]
81.	Expedition 14 EVA 5 ‡	Mikhail Tyurin Michael Lopez-Alegria	February 22, 2007 10:27	February 22, 2007 16:45	6 hours, 18 minutes
81.	Expedition 14 EVA 5 ‡	Retracted the antenna of the Progress cargo carrier at the aft port of the Zvezda service module, photographed a Russian satellite navigation antenna, and replaced a Russian materials experiment, inspected and photographed an antenna for the Automated Transfer Vehicle (ATV), photographed a German robotics experiment, and inspected, remated, and photographed hardware connectors.^[104]
82.	Expedition 15 EVA 1 ‡	Fyodor Yurchikhin Oleg Kotov	May 30, 2007 19:05	May 31, 2007 00:30	5 hours, 25 minutes
82.	Expedition 15 EVA 1 ‡	Installed Service Module Debris Protection (SMDP) panels and rerouted a Global Positioning System antenna cable.^[105]
83.	Expedition 15 EVA 2 ‡	Fyodor Yurchikhin Oleg Kotov	June 6, 2007 14:23	June 6, 2007 20:00	5 hours, 37 minutes
83.	Expedition 15 EVA 2 ‡	Installed a section of Ethernet cable on the Zarya module, installed additional Service Module Debris Protection (SMDP) panels on Zvezda, and deployed a Russian scientific experiment.^[106]

84.	STS-117 EVA 1	James F. Reilly John D. Olivas	June 11, 2007 20:02	June 12, 2007 02:17	6 hours, 15 minutes
84.	STS-117 EVA 1	Began the S3/S4 Truss installation.^[107]
85.	STS-117 EVA 2	Patrick G. Forrester Steven Swanson	June 13, 2007 18:28	June 14, 2007 01:44	7 hours, 16 minutes
85.	STS-117 EVA 2	Assisted in retraction of the solar panels on the P6 Truss. Completed the S3/S4 truss installation. Partial failure due to the S3/S4 SARJ motor control circuits being wired in reverse, so some launch restraints were left in place to prevent the possibility of undesired rotation.^[108]
86.	STS-117 EVA 3	James F. Reilly John D. Olivas	June 15, 2007 17:24	June 16, 2007 01:22	7 hours 58 minutes
86.	STS-117 EVA 3	Repaired the Orbital Maneuvering System (OMS) pod thermal blanket, finished the P6 solar array retraction, and installed a hydrogen ventilation valve onto Destiny.^[109]
87.	STS-117 EVA 4	Patrick G. Forrester Steven Swanson	June 17, 2007 16:25	June 17, 2007 22:54	6 hours 29 minutes
87.	STS-117 EVA 4	Retrieved a television camera and its support structure from an External Stowage Platform attached to the Quest airlock, and installed it on the S3 truss, verified the Drive Lock Assembly (DLA) 2 configuration, and removed the last six SARJ launch restraints. Installed a computer network cable on the Unity node, opened the hydrogen vent valve on the Destiny laboratory, and tethered two orbital debris shield panels on the station’s service module.^[110]

88.	Expedition 15 EVA 3	Clayton Anderson Fyodor Yurchikhin	July 23, 2007 10:25	July 23, 2007 18:06	7 hours, 41 minutes
88.	Expedition 15 EVA 3	Replaced components for the Mobile Transporter's redundant power system, jettisoned an ammonia tank and flight support equipment, and cleaned the Common Berthing Mechanism (CBM) on the nadir port of Unity.^[111]^[112]

89.	STS-118 EVA 1	Richard Mastracchio Dafydd Williams	August 11, 2007 16:28	August 11, 2007 23:45	6 hours 17 minutes
89.	STS-118 EVA 1	Attached the Starboard 5 (S5) segment of the station’s truss, and retracted the forward heat-rejecting radiator from the station’s Port 6 (P6) truss.^[113]
90.	STS-118 EVA 2	Richard Mastracchio Dafydd Williams	August 13, 2007 15:32	August 13, 2007 22:00	6 hours, 28 minutes
90.	STS-118 EVA 2	Removed the new Control Moment Gyroscope (CMG) from the shuttle's payload bay and installed it onto the Z1 truss. Installed the failed CMG onto an External Stowage Platform (ESP-2).^[114]
91.	STS-118 EVA 3	Richard Mastracchio Clay Anderson	August 15, 2007 14:38	August 15, 2007 20:05	5 hours, 28 minutes
91.	STS-118 EVA 3	Moved two Crew Equipment Translation Aid (CETA) carts from tracks on the left side of the Canadarm2 Mobile Transporter to its right side. Relocated an antenna base from the P6 truss to P1, and installed a new transponder and signal processor for an S-band communications upgrade. During the EVA, Mastracchio noted a hole in the second layer of material on the thumb of his left glove. The suit has five protective layers, and the small hole did not cause any danger to Mastracchio, but he returned to the airlock early as a precautionary measure.^[115]
92.	STS-118 EVA 4	Dafydd Williams Clay Anderson	August 18, 2007 14:17	August 18, 2007 19:02	5 hours, 02 minutes
92.	STS-118 EVA 4	Retrieved Materials International Space Station Experiment (MISSE) containers 3 and 4, installed the Orbiter Boom Sensor System (OBSS) Boom Stand, installed an External Wireless Instrumentation System (EWIS) antenna, and secured Z1 gimbal locks.^[116]
93.	STS-120 EVA 1	Scott E. Parazynski Douglas H. Wheelock	October 26, 2007 10:02	October 26, 2007 16:16	6 hours, 14 minutes
93.	STS-120 EVA 1	Installed the new Harmony module in its temporary location, retrieved the S-Band Antenna Support Assembly, and prepared for the relocation of the P6 truss by disconnecting fluid lines on the P6/Z1 truss segments.^[117]
94.	STS-120 EVA 2	Scott E. Parazynski Daniel M. Tani	October 28, 2007 09:32	October 28, 2007 16:05	6 hours, 33 minutes
94.	STS-120 EVA 2	Disconnected the Z1-to-P6 umbilicals, detached P6 from Z1, configured the S1 radiator, installed handrails onto Harmony, and inspected the S4 starboard Solar Alpha Rotary Joint (SARJ).^[118]
95.	STS-120 EVA 3	Scott E. Parazynski Douglas H. Wheelock	October 30, 2007 08:45	October 30, 2007 15:53	7 hours, 08 minutes
95.	STS-120 EVA 3	Attached P6 to P5, installed P6/P5 umbilical connections, reconfigured S1 following its redeployment, and inspected the port SARJ.^[119]
96.	STS-120 EVA 4	Scott E. Parazynski Douglas H. Wheelock	November 3, 2007 10:03	November 3, 2007 17:22	7 hours, 19 minutes
96.	STS-120 EVA 4	Inspection and repair of the P6 solar array.^[120]

97.	Expedition 16 EVA 1	Peggy Whitson Yuri Malenchenko	November 9, 2007 09:54	November 9, 2007 16:49	6 hours, 55 minutes
97.	Expedition 16 EVA 1	Disconnected and stored the Station-to-Shuttle Power Transfer System cables, stored the PMA-2 umbilical, and stowed a Harmony node avionics umbilical into a temporary position.^[121]^[122]
98.	Expedition 16 EVA 2	Peggy Whitson Daniel M. Tani	November 20, 2007 10:10	November 20, 2007 17:26	7 hours, 16 minutes
98.	Expedition 16 EVA 2	External configuration of PMA-2 and Harmony: Fluid, electrical, and data lines attached, avionics lines hooked up, heater cables attached, and relocated a fluid tray.^[123]
99.	Expedition 16 EVA 3	Peggy Whitson Daniel M. Tani	November 24, 2007 09:50	November 24, 2007 16:54	7 hours, 04 minutes
99.	Expedition 16 EVA 3	Completion of fluid, electrical, and data line hookups for PMA-2 and Harmony. Loop B Fluid Tray connected to the port side of the Destiny laboratory. Inspected and photographed the starboard Solar Alpha Rotary Joint (SARJ) to assist with troubleshooting on the ground.^[124]
100.	Expedition 16 EVA 4	Peggy Whitson Daniel M. Tani	December 18, 2007 09:50	December 18, 2007 16:46	6 hours, 56 minutes
100.	Expedition 16 EVA 4	Inspected the S4 starboard Solar Alpha Rotary Joint (SARJ), and a Beta Gimbal Assembly (BGA).^[125] Records: 100th EVA in support of assembly and maintenance of the International Space Station. Whitson became the female astronaut with the most EVAs (five) and the most time spent in EVA, with a total of 32 hours, 36 minutes.^[126]^[127]^[128]

2008

	Mission	Spacewalkers	Start (UTC)	End (UTC)	Duration
101.	Expedition 16 EVA 5	Peggy Whitson Daniel M. Tani	January 30, 2008 09:56	January 30, 2008 17:06	7 hours, 10 minutes
101.	Expedition 16 EVA 5	Replaced the Bearing Motor Roll Ring Module on one of the station's solar wings, and inspected and photographed the starboard Solar Alpha Rotary Joint (SARJ).^[129]

102.	STS-122 EVA 1	Rex J. Walheim Stanley G. Love	February 11, 2008 14:13	February 11, 2008 22:11	7 hours, 58 minutes
102.	STS-122 EVA 1	Installed a grapple fixture on Columbus while it was still in the shuttle’s payload bay, prepared electrical and data connections on Columbus, and replaced a large nitrogen tank used for pressurizing the station's ammonia cooling system.^[130]
103.	STS-122 EVA 2	Rex J. Walheim Hans Schlegel	February 13, 2008 14:27	February 13, 2008 21:12	6 hours, 45 minutes
103.	STS-122 EVA 2	Installed the P1 Truss Nitrogen (N2) tank assembly, stowed the old N2 tank assembly into the shuttle's payload bay, and completed routing for the Station-to-Shuttle Power Transfer System (SSPTS).^[131]
104.	STS-122 EVA 3	Rex J. Walheim Stanley G. Love	February 15, 2008 14:27	February 15, 2008 20:32	7 hours, 25 minutes
104.	STS-122 EVA 3	Installed the Solar Monitoring Observatory (SOLAR) telescope and the European Technology Exposure Facility (EuTEF) facility onto an External Stowage Platform (ESP) on Columbus. Retrieved a failed Control Moment Gyroscope (CMG), installed the failed CMG into the shuttle's payload bay, and installed keel pin cloth covers on Columbus.^[132]
105.	STS-123 EVA 1	Richard M. Linnehan Garrett Reisman	March 14, 2008 01:18	March 14, 2008 08:19	7 hours, 01 minute
105.	STS-123 EVA 1	Installed the Japanese Experiment Logistics Module, Pressurized Section (ELM-PS) onto its temporary location on top of Harmony, and began assembly of the Special Purpose Dexterous Manipulator (Dextre) .^[133]
106.	STS-123 EVA 2	Richard M. Linnehan Michael Foreman	March 15, 2008 23:49	March 16, 2008 06:57	7 hours, 08 minutes
106.	STS-123 EVA 2	Dextre assembly continued, two "arms" attached to Dextre.^[134]
107.	STS-123 EVA 3	Richard M. Linnehan Robert L. Behnken	March 17, 2008 22:51	March 18, 2008 05:44	6 hours, 53 minutes
107.	STS-123 EVA 3	Dextre assembly completed. Spare equipment for the station installed onto an external stowage platform (ESP) on the Quest airlock, including a yaw joint for the station’s robotic arm, Canadarm2, and two spare direct current switching units.^[135]
108.	STS-123 EVA 4	Michael Foreman Robert L. Behnken	March 20, 2008 22:04	March 21, 2008 04:28	6 hours, 24 minutes
108.	STS-123 EVA 4	Replaced a Remote Power Control (RPC) module, and tested shuttle thermal tile repair materials and techniques. Removed a cover from the left arm of Dextre, and removed launch locks from the Harmony module. Released launch locks on Harmony’s port and nadir Common Berthing Mechanisms (CBM).^[136]
109.	STS-123 EVA 5	Michael Foreman Robert L. Behnken	March 22, 2008 20:34	March 23, 2008 02:36	6 hours, 02 minutes
109.	STS-123 EVA 5	Stored the shuttle Orbiter Boom Sensor System (OBSS) onto the station, installed a materials experiment on the outside of the Columbus laboratory, and inspected the Solar Alpha Rotary Joint (SARJ).^[137]
110.	STS-124 EVA 1	Michael E. Fossum Ronald J. Garan	June 3, 2008 16:24	June 3, 2008 23:12	6 hours, 48 minutes
110.	STS-124 EVA 1	Released straps on the shuttle's robotic arm elbow joint camera, transferred the OBSS back to the shuttle. Prepared the Japanese Experiment Module, Pressurized Module (JEM-PM), named Kibo, for installation. Replaced a trundle bearing assembly on the starboard Solar Alpha Rotary Joint, and inspected damage on the SARJ.^[138]^[139]
111.	STS-124 EVA 2	Michael E. Fossum Ronald J. Garan	June 5, 2008 15:04	June 5, 2008 22:15	7 hours, 11 minutes
111.	STS-124 EVA 2	Installed covers and external equipment to Kibo, prepared for the relocation of the Japanese Experiment Logistics Module, Pressurized Section (ELM-PS). Prepared a nitrogen tank assembly for removal, and the new tank was stowed on an External Stowage Platform to prepare for installation. Removed a television camera with failed power supply.^[140]
112.	STS-124 EVA 3	Michael E. Fossum Ronald J. Garan	June 8, 2008 13:55	June 8, 2008 20:28	6 hours, 33 minutes
112.	STS-124 EVA 3	Removed and replaced the starboard nitrogen tank assembly. Finished outfitting the Kibo laboratory. Reinstalled a television camera with a repaired power supply.^[141]

113.	Expedition 17 EVA 1 ‡	Sergei Volkov Oleg Kononenko	July 10, 2008 18:48	July 11, 2008 1:06	6 hours 18 minutes
113.	Expedition 17 EVA 1 ‡	Inspected the Soyuz TMA-12 spacecraft, removed a pyrotechnic bolt from the Soyuz, installed a docking target for the new Russian MRM (Multipurpose Research Module) on the Service Module Transfer Compartment.^[142]^[143]
114.	Expedition 17 EVA 2 ‡	Sergei Volkov Oleg Kononenko	July 15, 2008 17:08	July 15, 2008 23:02	5 hours 54 minutes
114.	Expedition 17 EVA 2 ‡	Installed a docking target on the Zvezda service module. Installed the Vsplesk experiment, straightened the ham radio antenna, and retrieved the Biorisk experiment.^[144]^[145]^[146]^[147]

115.	STS-126 EVA 1	Heidemarie Stefanyshyn-Piper Stephen G. Bowen	November 18, 2008 18:09	November 19, 2008 01:01	6 hours, 52 minutes
115.	STS-126 EVA 1	Transferred an empty nitrogen tank assembly from ESP3 to the shuttle’s cargo bay, transferred a new flex hose rotary coupler to ESP3 for future use, removed an insulation cover on the Kibo External Facility berthing mechanism, began cleaning and lubrication of the starboard SARJ, and replacement of its 11 trundle bearing assemblies.^[148]^[149]
116.	STS-126 EVA 2	Heidemarie Stefanyshyn-Piper Robert S. Kimbrough	November 20, 2008 17:58	November 21, 2008 00:43	6 hours, 45 minutes
116.	STS-126 EVA 2	Relocated the two Crew and Equipment Translation Aid (CETA) carts from the starboard side of the Mobile Transporter to the port side, lubricated the station robotic arm’s latching end effector A snare bearings, continued cleaning and lubrication of the starboard SARJ. EVA was conducted on the station's tenth year anniversary.^[150]^[151]^[152]
117.	STS-126 EVA 3	Heidemarie Stefanyshyn-Piper Stephen G. Bowen	November 22, 2008 18:01	November 23, 2008 00:58	6 hours, 57 minutes
117.	STS-126 EVA 3	Completed cleaning and lubrication of all but one of the trundle bearing assemblies (TBA) on the starboard SARJ. The final TBA will be replaced during EVA 4.^[153]^[154]
118.	STS-126 EVA 4	Stephen G. Bowen Robert S. Kimbrough	November 24, 2008 18:24	November 25, 2008 00:31	6 hours, 7 minutes
118.	STS-126 EVA 4	Completed replacement of trundle bearing assemblies on starboard SARJ, lubricated the port SARJ, installed a video camera, re‐installed insulation covers on the Kibo External Facility berthing mechanism, performed Kibo robotic arm grounding tab maintenance, installed spacewalk handrails on Kibo, installed Global Positioning Satellite (GPS) antennae on Kibo, photographed radiators, and photographed trailing umbilical system cables.^[16]^[155]

119.	Expedition 18 EVA 1 ‡	Yuri Lonchakov Michael Fincke	December 23, 2008 00:51	December 23, 2008 06:29	5 hours, 38 minutes
119.	Expedition 18 EVA 1 ‡	Installed the electromagnetic energy measuring device, (Langmuir probe) on Pirs, removed the Russian Biorisk long-duration experiment, installed the Expose-R experiment package on Zvezda, but subsequently removed it after it failed to activate and transmit telemetry on ground command. Installed the Impulse experiment, and photographed external ISS structures as part of the “Panorama-2008” detailed test objective (DTO).^[17]^[156]

External links

Text from Wikipedia is available under the Creative Commons Attribution/Share-Alike License; additional terms may apply.

Published in July 2009.

Click here to read more articles related to aviation and space!
