ATR 42

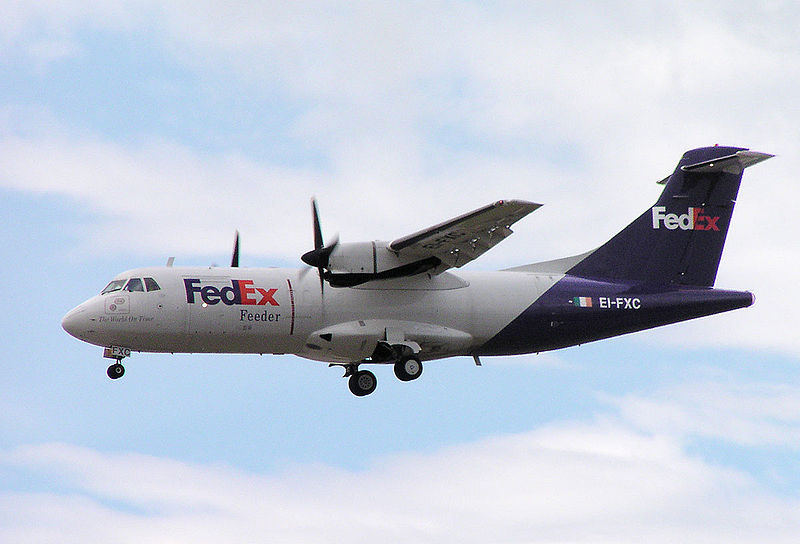

A FedEx Feeder ATR 42-300
Role	Regional Airliner
Manufacturer	ATR
First flight	16 August 1984
Introduced	1985
Status	In revenue service
Primary users	FedEx Feeder Airlinair Aeromar
Produced	1984-present
Number built	401+
Variants	ATR 72

The ATR 42 is a twin-turboprop, short-haul regional airliner built in France and Italy by ATR. The name "42" comes from the aircraft's standard seating, which varies from 40 to 50. The aircraft was the basis for the ATR 72.

Design and development

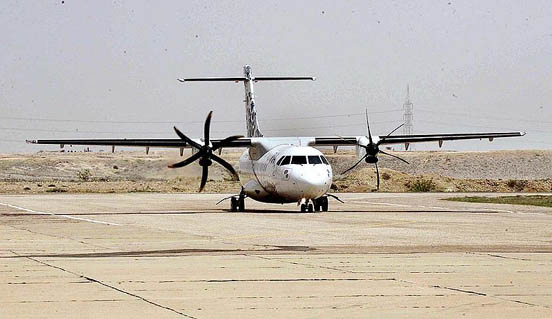

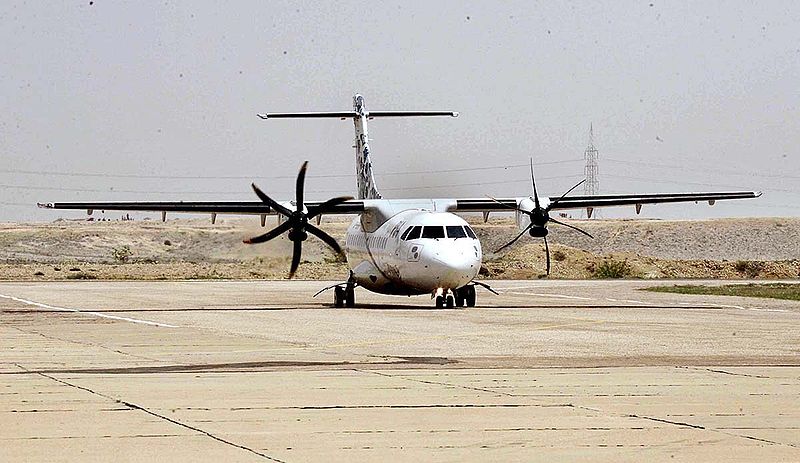

A PIA ATR 42-500 series at Hyderabad Airport

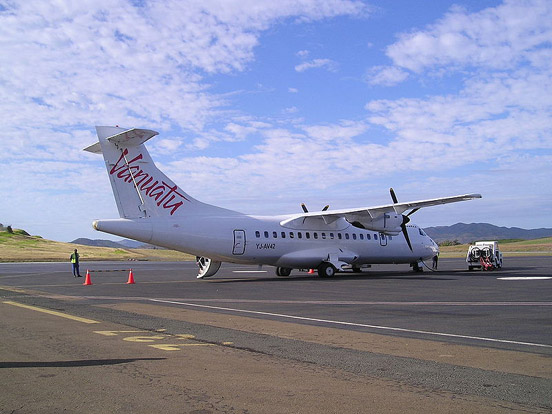

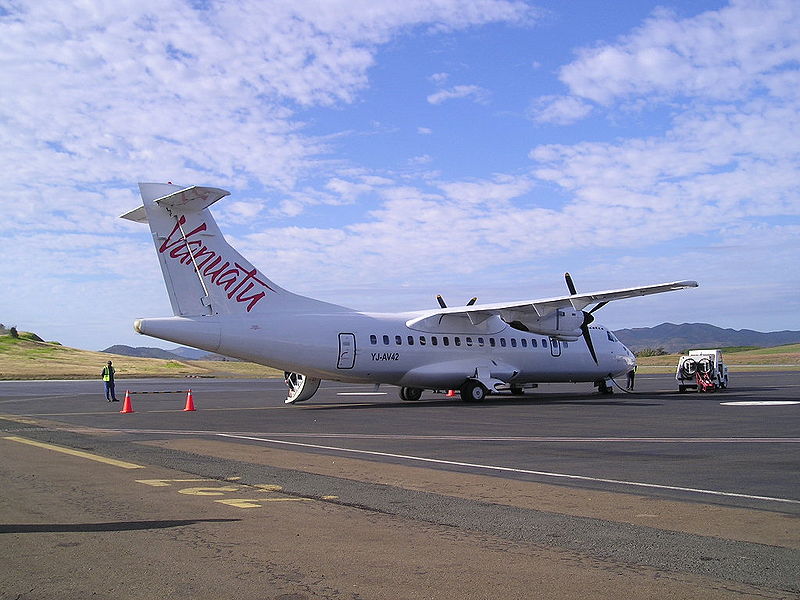

A Vanair ATR-42-320 at Port Vila International Airport

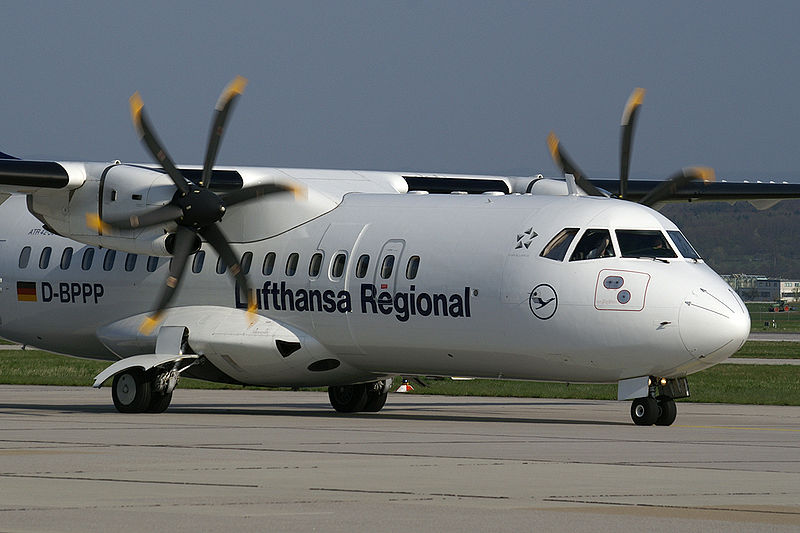

Contact Air/Lufthansa Regional ATR 42-500 at Stuttgart Airport

TAROM ATR 42-500 interior

The ATR 42 was announced in 1981, making its maiden flight on 16 August 1984; French and Italian certification followed in September 1985 and its first revenue flight was in December of the same year with Air Littoral of France.

As of January 2009 at least 401 ATR 42s have been delivered worldwide with up to 18 aircraft on order.

Variants

There are five major variants of the ATR 42.

ATR 42-200/300

The -200 & -300 were the original ATR 42 aircraft, powered by Pratt & Whitney Canada PW120 engines rated at 2000 shp.

ATR 42-320

The -320 was an improved version of the -300 powered by PW121 engines (2100 shp).

ATR 42-400

The -400 is the official name for the passenger version of the ATR 42 "Surveyor". the -400 is an upgraded version of the -200/300/320 using six-bladed propellers on otherwise identical PW120/PW121 engines. The primary users of this aircraft type are Conviasa & CSA Czech Airlines.

ATR 42-500

The ATR-500 is the current production version. It is identical in appearance to earlier 42s with the exception of its six-bladed propellers turned by PW127E engines rated at 2,400 shp (1,800 kW) for improved hot and high performance and greatly increased cruise speed. It also has an increased maximum takeoff weight, allowing for more cargo and greater range (up to 1,500 nm).

ATR 42-600

On Tuesday 2 October 2007, ATR CEO Stéphane Mayer, announced the launch of the new -600 series aircraft at a Press Conference held in Washington, D.C..

The new ATR 42-600 and ATR 72-600 will feature the latest technological enhancements while building upon the well-known advantages of the current aircraft, namely its high efficiency, proven dispatch reliability, low fuel burn and operating cost. It will include the new PW127M as standard engine, Glass Cockpit flight deck featuring five wide LCD screens that will replace the current EFIS (Electronic Flight instrument System). In addition, a multi-purpose computer (MPC) will further enhance Flight Safety and operational capabilities. The new avionics, to be supplied by Thales, will also provide CAT III and RNP capabilities. The -600 series ATR aircraft will be progressively introduced during the second half of 2010.

Other

An STC exists to convert all ATR 42 variants to all-cargo transport aircraft. FedEx, Aviavilsa, UPS, and DHL are major operators of the type.

The ATR 42 "Surveyor" is a maritime patrol version of the -500, and VIP transport and in-flight inspection versions of the -500 also exist.

Operators

Civil operators

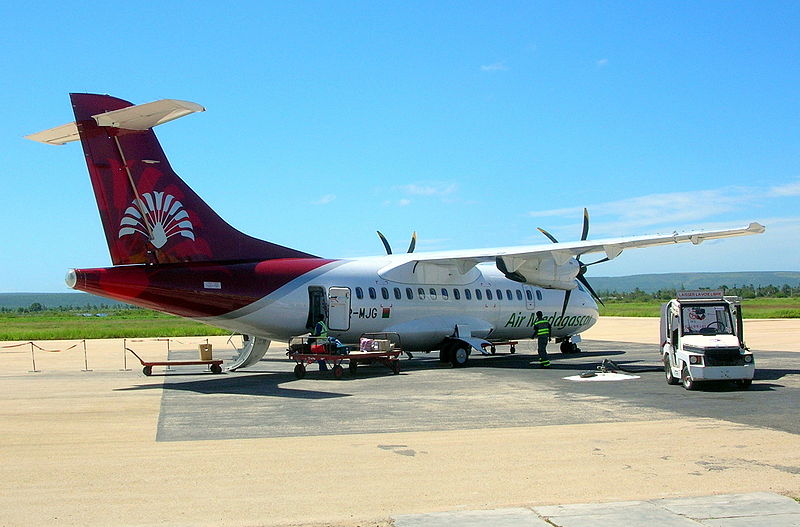

ATR 42-500 at Toliara Airport, Madagascar

The largest operators of the ATR-42 are FedEx Express, Airlinair, and Mexico City-based Aeromar respectively.

Some 70 other airlines operate smaller numbers of the type.

Military and government operators

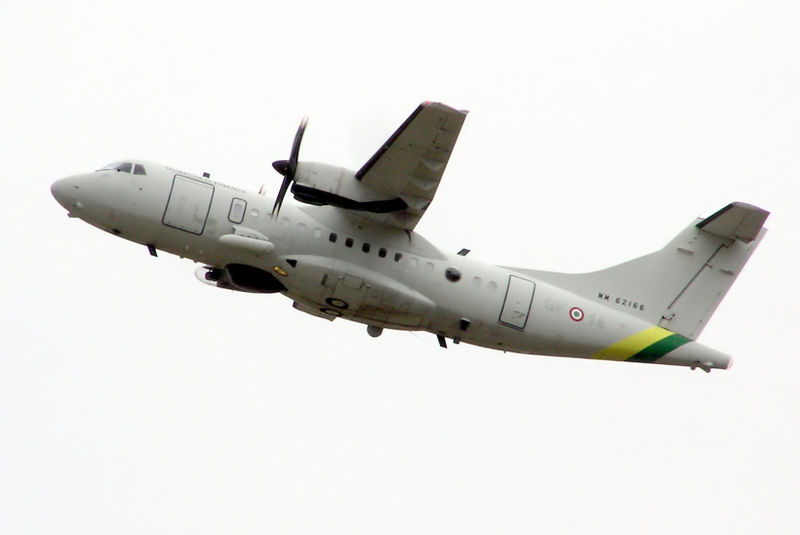

Guardia di Finanza ATR 42MP (MM62166) takes off at the Royal International Air Tattoo, Fairford, Gloucestershire, England

Italy

Guardia di Finanza (5 ATR 42 MPs)

Libya

Libyan Government (One ATR42 MP on order for 2009 delivery)

Nigeria

Nigerian Air Force (Two ATR 42 MPs on order for 2009 delivery)

Accidents and incidents

On 15 October 1987, an Aero Trasporti Italiani (ATI) ATR 42-300 crashed on Conca di Crezzo, Italy during flight from Milan-Linate to Köln, Germany. All 37 on board died. Icing conditions existed.

On 11 October 1999, an Air Botswana captain boarded an ATR 42-320 aircraft and took off. Once in the air, he asked by radio to speak to President Festus Mogae (who was outside the country at the time), Air Botswana's general manager and others. In spite of all attempts to persuade him to land and discuss his grievances, he stated he was going to crash into some planes on the apron. After a flying time of about two hours, he performed two loops and then crashed at 200 knots (230 mph) into Air Botswana's two other ATR 42s parked on the apron. The captain was killed, but there were no other casualties. He had been grounded on medical reasons, refused reinstatement, and regrounded until February 2000.

On 21 February 2008, an ATR 42-300 of Santa Barbara Airlines Flight 518 crashed in the Andes near Mérida, Venezuela, during a flight from Merida to Simon Bolivar International Airport in Caracas. The aircraft was carrying 43 passengers and 3 crew. All died.

On 27 January 2009, an Empire Airlines ATR-42 cargo plane under contract from FedEx Express crashed on landing at Lubbock Preston Smith International Airport at 04:37 CT. The plane, which had been traveling from Fort Worth Alliance Airport, landed short of the touchdown zone and skidded off the runway amid light freezing rain. There was a small fire on the plane and two crew members were taken to hospital with minor injuries.

Specifications (ATR 42-500)

Data from http://www.atr.fr/public/atr/html/products/products.php?aid=508

General characteristics

Capacity: 44-50 passengers
Length: 74 ft 5 in (22.67 m)
Wingspan: 80 ft 7 in (24.57 m)
Height: 24 ft 11 in (7.59 m)
Wing area: 586 ft (54.5 m)
Empty weight: 24,802 lb (11,250 kg)
Useful load: 16,203 lb (7,350 kg)
Max takeoff weight: 41,005 lb (18,600 kg)
Powerplant: 2× Pratt & Whitney Canada PW127E turboprops, 2,160 hp (1,790 kW) each

Performance

Cruise speed: 300 kts (556 km/h)
Range: 870 nm (1,611 km)
Service ceiling: 24,900 ft (7,600 m)
