The Eurocopter SA 365/AS365 Dauphin 2 (Dolphin) is a medium-weight multipurpose twin-engine helicopter manufactured by Eurocopter (originally by Aérospatiale).
Design and development
Developed from the single-engined Aérospatiale SA 360 Dauphin variant, the SA 365/AS365 Dauphin 2 is one of Eurocopter's most successful designs and is widely used as a corporate transport, airborne law enforcement platform, emergency medical services (EMS) helicopter, electronic news gathering platform, and search & rescue helicopter. One of the distinctive features of the Dauphin is its fenestron tail rotor.
The military version of the Dauphin is the Eurocopter Panther. The Dauphin is also used by the United States Coast Guard under the designation HH/MH-65C Dolphin.
The Dauphin is also manufactured in China under licence as the Z-9 by the Harbin Aircraft Manufacturing Corporation, and subsequently developed as the armed versions WZ-9 and WZ-9A-100.
More than 800 AS365/366/565 versions have been produced or ordered, with the 500th Dauphin (counting all models) having been delivered in 1991. More than 90 EC155s have been delivered.
Variants
 | |

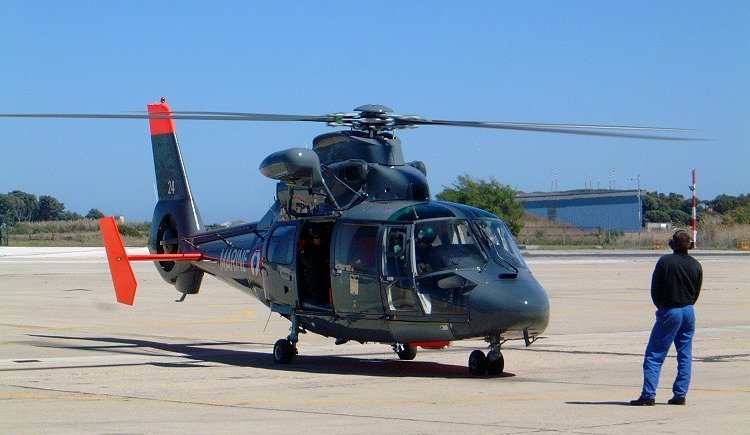

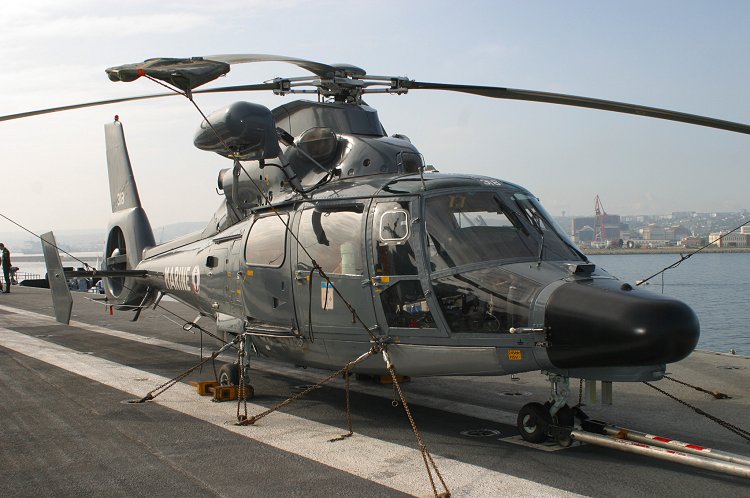

Dauphin SA 365N SP (Public Service) of the French Navy 35F wing detachment in Hyères |
 | |

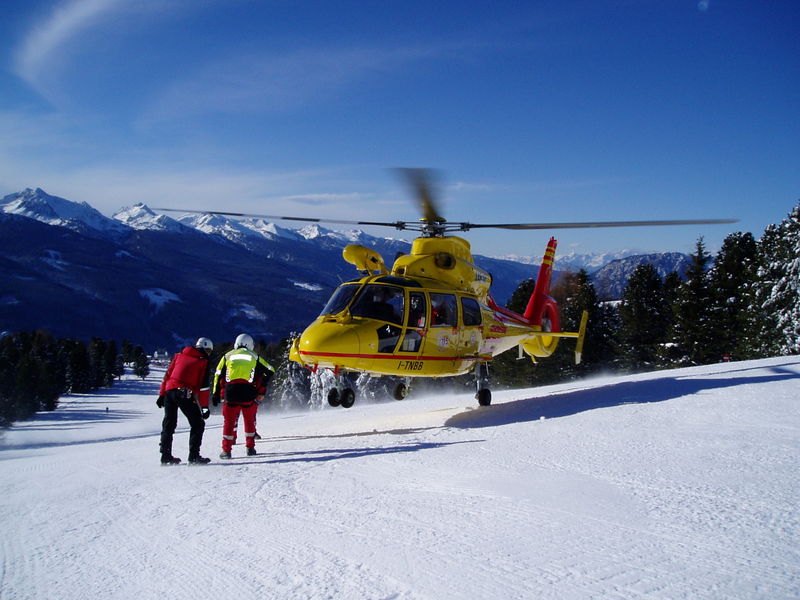

Eurocopter AS365 N3 Dauphin 2 rescue helicopter I-TNBB on Italian skiing area |
Regarding the naming of the different variants, it should be noted that, until January 1990, the AS365 models were designated as SA 365.
Civil Variants
- SA 365 C
- This twin-engined version of the Dauphin, designated as the Dauphin 2, was announced in early 1973. The first flight of the first prototype took place on 24 January 1975, with production model deliveries starting in December 1978. In comparison with the earlier model, the SA 365 C featured twin 470 kW (630 shp) Arriel 1 turboshafts in a new engine fairing, a Starflex main rotor hub and a higher maximum takeoff weight (3,400 kg or 7,495 lb). The aircraft's Fenestron anti-torque device featured 13 metal blades. Production of both the SA 360 and SA 365 C ceased in 1981, by which time approximately 40 SA 360s and 50 SA 365 C/C1s had been built. Both types were replaced by the SA 365 N.
- SA 365 C1
- Minor upgrade of the SA 365 C powered by Arriel 1A1.
- AS365 N (originally SA 365 N)
- This is a much improved version of the SA 365 C Dauphin 2, the first prototype flying on 31 March 1979. This version introduced the uprated 492 kW (660 shp) Arriel 1C turboshafts, a retractable tricycle undercarriage, enlarged tail surfaces, and revised transmission, main rotor, rotor mast fairing and engine cowlings. The aircraft's initial M.T.O.W. of 3,850 kg (8,488 lb) was later raised to 4,000 kg (8,819 lb). Deliveries of the production model began in 1982.
- AS365 N1
- Incorporating many of the improvements developed for the SA 366 G1 (HH-65 Dolphin), this version introduced upgraded 526 kW (705 shp) Arriel 1C1 turboshafts, an improved 11-blade Fenestron with wider-cord blades (which reduced the AS365 N1's noise signature), movable undercarridge doors replaced by simplified fairings and a higher gross weight of 4,100 kg (9,039 lb).
- AS365 N2
- This version - designated AS365 N2 from the outset - introduced the upgraded 549 kW (737 shp) Arriel 1C2 turboshafts, an uprated gearbox, increased maximum take-off weight of 4,250 kg (9,370 lb), redesigned cabin doors and revised interior, enlarged tail fin with all-composite Fenestron. Deliveries of this version started in 1990. Licensed versions, called the Z-9 and Z-9A, were assembled in China.
- AS365 N3
- The high-performance AS365 N3 was developed for operations in 'hot and high' climates, and introduced 635 kW (851 shp) Arriel 2C turboshafts equipped with full authority digital engine control (FADEC), mated to an uprated main transmission for better single engine performance. The AS365 N3 also features a new-generation 10-blade composite Fenestron anti-torque device with asymimmetic blade distribution, offering a further reduction in noise signature. The AS365 N3's gross weight is 4,300 kg (9,480 lb). Production deliveries began in December 1998 and this version is currently still in production.
- AS365 N4
- Produced as the EC155.
- AS365 X
- Better known as the DGV 200 or Dauphin Grand Vitesse (High Speed Dauphin), the AS365 X was developed from the X-380 DTP (Developpement Technique Probatoire or Probatory Technical Development) testbed, first flown on 20th March 1989. The aircraft was first flown in the AS365 X configuration two years later in March 1991, and featured a smaller Fenestron, a new main rotor with five high-inertia blades with swept tips, a composite rotor hub/mast and 624 kW (837 shp) Turbomeca Arriel IX turboshafts. On 19 November 1991, this aircraft set a Class E1e (3,000 to 4,500 kg) speed record of 201 knots (372 km/h or 231 mph) over a 3 km triangular course.
- EC155 B/B1
 | |

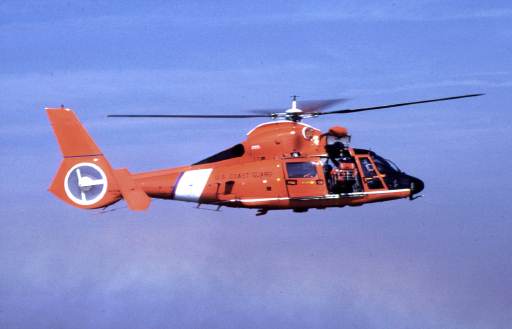

US Coast Guard HH-65A Dolphin |
- This version was originally to follow the N3 as the AS365 N4, and was announced at the 1997 Paris Airshow before being redesignated as the EC155 B. As with the N3 version, it has twin Arriel 2C/2C2 turboshafts equipped with FADEC as well as a five-blade Spheriflex main rotor (derived from the AS365 X DGV). It also features a 30% larger main cabin (achieved with bulged doors and cabin plugs). The first flight of the first prototype took place on 17 June 1997 and this version is currently in production (as the EC155 B1).
Military versions
For a more detailed discussion of the military versions of the Dauphin, see: Eurocopter Panther.
- MH/HH-65 Dolphin
- The SA 366 G1 Dauphin version was selected by the United States Coast Guard (USCG) in 1979 as its new air-sea rescue helicopter and given the designation HH-65A Dolphin. In total 99 helicopters, optimised for the USCG's short-range recovery (SRR) search and rescue role, were initially acquired, with additional aircraft later procured.
- SA 365 F/F1
- Naval version of the AS365 N.
- SA 365 H
- Military version of the SA 365 C.
- SA 365 K
- Military version of the AS365 N2.
- SA 365 M
- Military version of the AS365 N2.
Military AS365 Ns are designated as AS 565 Panthers and are available in the following versions:
- AS565 AA/AB
- Attack versions.
- AS565 MA/MB
- Naval search & rescue versions.
- AS565 SA/SB
- ASW (Anti Submarine Warfare) versions.
- AS565 UA/UB
- Utility versions.
Operators
 | |

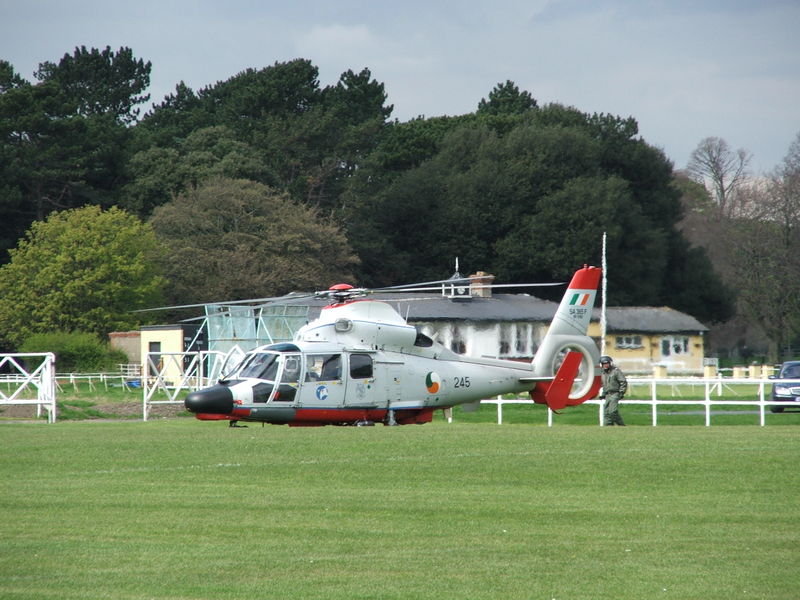

SA 365 F originally operated by the Irish Air Corps |
Military Operators
 Argentina
 Brazil Burkina Faso Cambodia Chile
- Coast Guard and Navy SAR (3 second-hand machines bought on civil market, plus four former Irish Air Corps acquired by the end of 2008. Total requirement of 8)
 People's Republic of China- as variant Harbin Z-9 and WZ-9 by the PLAAF, PLANF and PLAGF
 Democratic Republic of the Congo Côte d'Ivoire Dominican Republic Fiji France
 Greece
 Hong Kong
 Israel
 Malawi Mexico
- Mexican Navy - (There's good possibility that SEMAR will purchase 6 more.)
 Morocco Rwanda Saudi Arabia South Africa
 Sri Lanka
 United Kingdom
 United States
 Uruguay Vietnam
Governmental / Law Enforcement operators
 | |

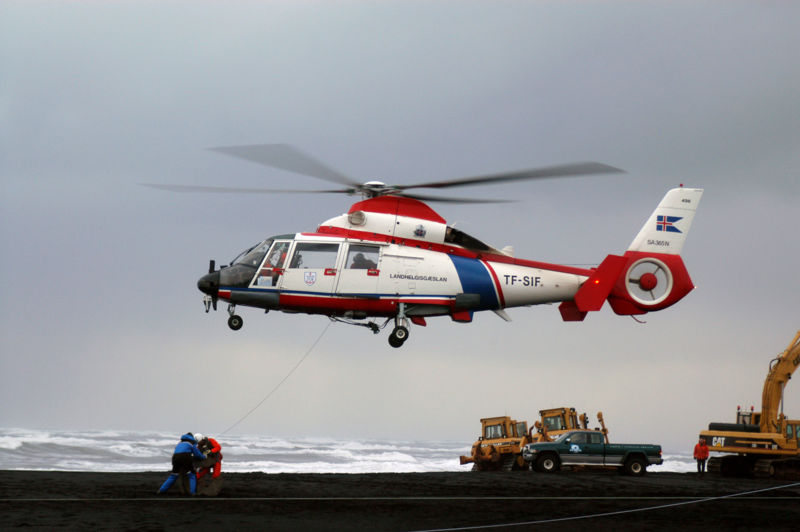

AS365 N2 Dauphin 2 of the Icelandic Coast Guard |
 Australia

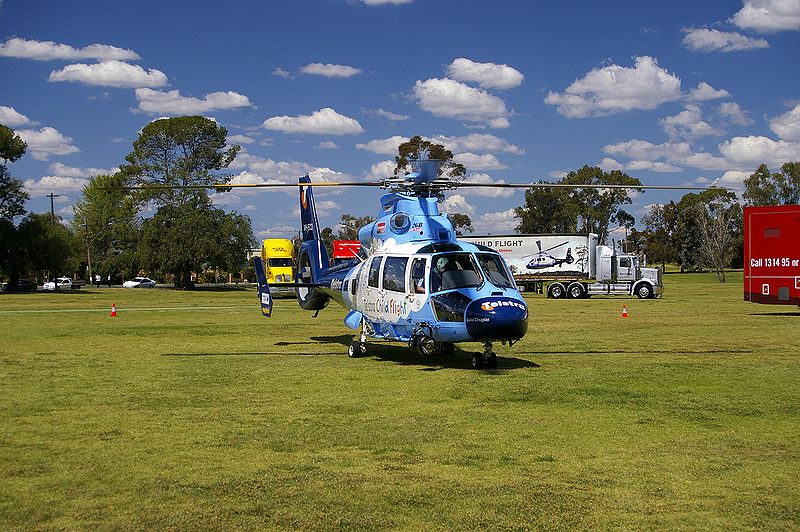

- Victoria Police Air Wing operates a number of Dauphin AS365 N3s and SA 365 Cs as a patrol helicopter as well as for search and rescue missions.
- Brazil
 Germany
 Hong Kong
 Iceland
- Icelandic Coast Guard, although currently only operating a rental Dauphin. Originally owned a Dauphin which has since been lost in a crash.
 Indonesia
 Malaysia
 Romania
 Spain
 Switzerland
 Thailand
 Taiwan
- United States
- Maryland State Police operates 12 SA/AS365s, primarily as a search and rescue helicopter and emergency medical services platform, though other law enforcement and homeland security duties can be assigned to them.
Civilian operators
 | |

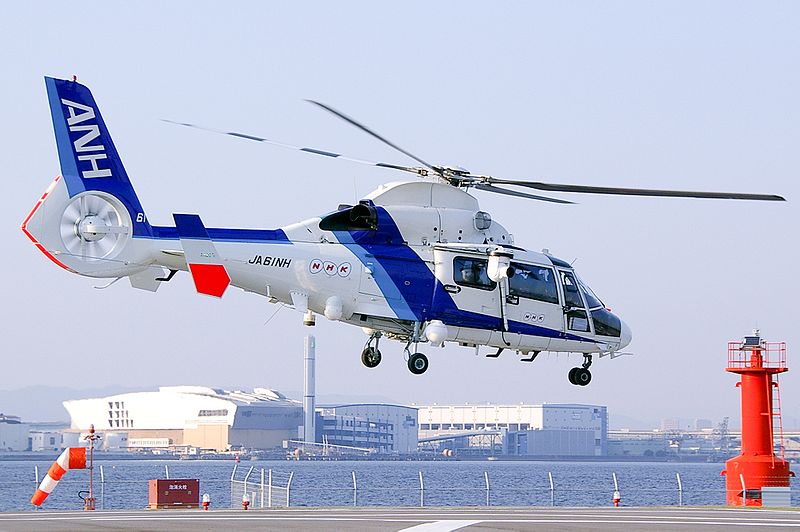

All Nippon Helicopter AS365 N2 |
- Australia
 Belgium
- North Sea Helicopters Vlaanderen (NHV) based at Ostend International Airport. Primary role is shipping control, organ transport and various essential transport work.
 Canada
- CHC Scotia operates 7 AS365s for offshore support and search & rescue.
- Chile
- One example with Aerofan S.A.
- France
- Heli-Union, the biggest civilian operator of the Dauphin, has 21 AS 365 C2, C3, N2 and N3 all around the world for offshore operations
 India
 Iran
- Search and Rescue, Maritime Surveillance.
 Italy
- Fireman Helicopters Group, Autonomous Province of Trentoutilizes two AS365 N3 for health emergency, mountain rescue, fire service and various civil defence activities.
- Indonesia
 Japan
- All Nippon Helicopter, a subsidiary of All Nippon Airways, operates 6 AS365 N2s for news gathering of NHK.
 Niger
 Tunisia
- AS365 N and N3 by Tunisavia used mainly for the offshore oil and gas drilling projects.
 United Arab Emirates
- United Kingdom
- United States
Specifications (AS365 N3)Data from {Eurocopter.com}
General characteristics
- Crew: 1 or 2 pilots
- Capacity: 12 passengers
- Length: 13.73 m (45.06 ft)
- Rotor diameter: 11.94 m (39.17 ft)
- Height: 4.06 m (13.32 ft)
- Empty weight: 2,411 kg (5,315 lb)
- Max takeoff weight: 4,300 kg (9,480 lb)
- Powerplant: 2× Turbomeca Arriel 2C turboshafts, 625 kW (838 shp) each
