Avro 618 Ten

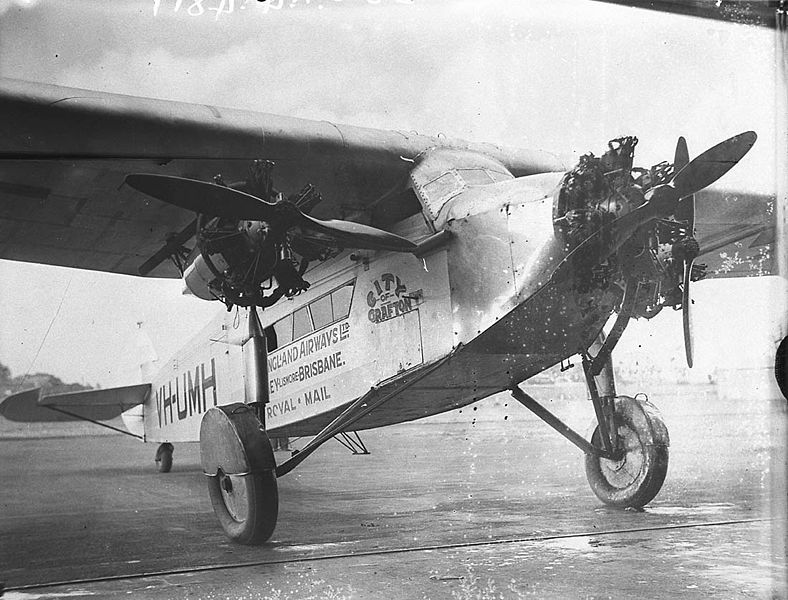

VH-UMH as New England Airways' City of Grafton
Role	Passenger & military transport
Manufacturer	Avro
Designed by	Anthony Fokker
Introduced	1930
Primary user	Australian National Airways, Imperial Airways

The Avro 618 Ten or X was a passenger transport aircraft of the 1930s. It was a licenced copy by Avro of the Fokker F.VIIB/3m.

Development

In 1928 Avro came to an arrangement with Fokker to license production of its successful F.VIIB/3m for sale in the British Empire (except Canada).

The Avro designation 618 Ten was adopted as the aircraft was capable of carrying two crew and eight passengers.

After a modification of the centre motor mounting to accommodate British airworthiness requirements, the aircraft was first displayed at the 1929 Olympia Aero Show.

Operational history

Australia

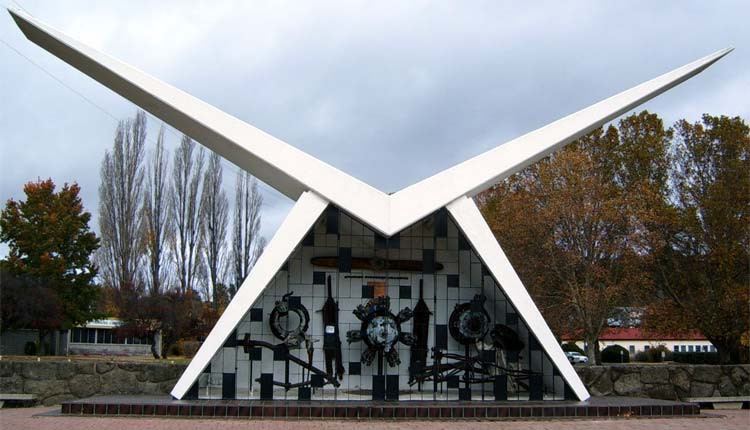

Aviation Pioneers Memorial at Cooma, New South Wales, Australia, with artifacts recovered from the Southern Cloud.

The first five aircraft were sold to the new Australian National Airways. The type entered service on 1 January of 1930 on the Brisbane-Sydney route, and later Melbourne-Sydney. They were:

VH-UMF Southern Cloud

VH-UMG Southern Star

VH-UMH Southern Sky

VH-UMI Southern Moon

VH-UNA Southern Sun

Two of this fleet were lost in accidents: Southern Cloud in the Toolong range of the Australian Alps on 21 March 1931 (the wreckage was not found until 1958) and Southern Sun in Malaya in November 1931, while attempting the first airmail flight to the United Kingdom. The airline folded and the remaining aircraft were sold.

Southern Moon was rebuilt in 1933 for long-range flights, fitted with 330 hp (250 kW) Wright Whirlwind radial engines and restyled as VH-UXX Faith in Australia. The last surviving 618 Ten in Australia, it evacuated many people from New Guinea in 1941.

Another two 618 Ten aircraft were also sold to Australian companies.

Three of the 619 Five aircraft went to two Australian airlines, as did (after commercial service in Britain) the sole 642/2m.

Britain and elsewhere

Four 618 Tens were delivered directly to British customers. Two went to Imperial Airways (April and June 1931) and were chartered to the Iraq Petroleum Transport Company before returning to Britain in 1933. One went to Midland & Scottish Air Ferries (May 1933) and at the end of 1931 one went to Indian State Airways for the use of the Viceroy of India.

Two Tens went to the Egyptian Army air force in January 1932, one of them surviving to join Indian National Airways in September 1934.

The last production Ten was delivered to the Royal Aircraft Establishment's Wireless and Equipment Flight in July 1936 with the RAF serial K2682.

One of the 624 Sixes was used by A.S.T Ltd; the other two were eventually sold to the Chinese government.

The sole 642/4m was used by the Indian state as Viceregal transport, and ended in RAF service as L9166.

Variants

• Type 618 Ten : Ten-seat civil transport aircraft. Fourteen built.

• Type 619 Five : Five-seat civil transport aircraft. Scaled down version of Avro Ten. Three 105 hp (78 kW) Armstrong Siddeley Genet Major 1 engines. Four aircraft built.

• Type 624 Six : Six-seat civil transport aircraft. Revised version of Avro Five with accommodation for two pilots and four passengers. Three Genet engines again, but outers in fairings merged into underside of the wing. Three aircraft built.

• Type 642 Eighteen : 18-seat civil transport aircraft, using same wing as Avro Ten.
  • Type 642-2m : Two 450 hp (336 kW) Armstrong Siddeley Jaguar VID engines mounted on the wings. One built.
  • Type 642-4m : Four 215 hp (160 kW) Armstrong Siddeley Lynx engines. One built.

Operators

Civil operators

 Australia

• Airlines of Australia
• Australian National Airways
• Australian Transcontinental Airways
• W.R.Carpenter Airlines (later Mandated Airlines)
• Commercial Air Hire
• Far Eastern Aviation Company
• Hart Aircraft Co.
• Kingsford Smith Air Service Ltd.
• New England Airways (see Keith Virtue)
• Queensland Air Navigation Co.
• Stephens Aviation (New Guinea based)

 China

• The Government of China

British India

• Indian National Airways
• Indian State Airways

 United Kingdom

• Air Service Training Ltd.
• Imperial Airways
• Midland and Scottish Air Ferries
• Wilson Airways (Kenya based)

Military operators

 Egypt

• Egyptian Army Air Force

 United Kingdom

• Royal Air Force
• Royal Aircraft Establishment

Specifications (Avro 618)

Data from Avro Aircraft since 1908

General characteristics

• Crew: Two
• Capacity: Eight passengers
• Length: 47 ft 6 in (14.48 m)
• Wingspan: 71 ft 3 in (21.72 m)
• Height: 12 ft 9 in (3.89 m)
• Wing area: 772 ft² (71.7 m²)
• Empty weight: 6,020 lb (2,736 kg)
• Max takeoff weight: 10,600 lb (4,818 kg)
• Powerplant: 3× Armstrong Siddeley Lynx IVB or IVC radial engine, 240 hp (179 kW) each

Performance

• Maximum speed: 100 kn (115 mph, 185 km/h)
• Cruise speed: 87 kn (100 mph, 161 km/h)
• Range: 348 nmi (400 mi, 644 km)
• Service ceiling: 16,000 ft (7,270 m)
• Rate of climb: 675 ft/min (3.43 m/s)
