Learjet 35

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Learjet_35/36

Learjet 35/36

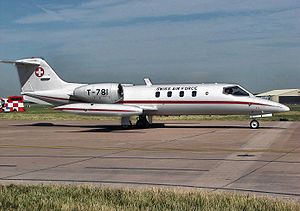

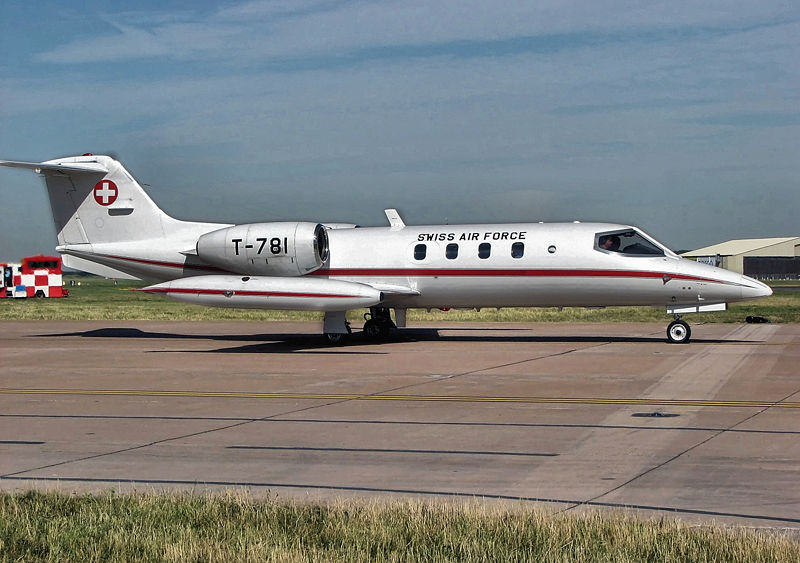

Swiss Luftwaffe Learjet 35A
Role Business jet
Manufacturer Learjet
First flight 22 August 1973
Status Operational
Primary user United States Air Force
Number built 738
Developed from Learjet 25

The Learjet Model 35 and Model 36 are a series of American multi-role business jets and military transport aircraft. When used by the United States Air Force they carry the designation C-21A.

The aircraft are powered by two Garrett TFE731-2 turbofan engines. Its cabin can be arranged for 6-8 passengers. The Model 36 has a shortened passenger area in the fuselage, in order to provide more space in the aft fuselage for fuel tanks. It is designed for longer-range mission capability.

The engines are mounted in nacelles on the sides of the aft fuselage. The wings are equipped with single-slotted flaps. The wingtip fuel tanks distinguish the design from other aircraft having similar functions.

Development

The concept which became the LJ35 began as the Learjet 25BGF (with GF referring to "Garrett Fan"), a Learjet 25 with a then-new TFE731 turbofan engine mounted on the left side in place of the 25's General Electric CJ610 turbojet engine. This testbed aircraft first flew in May, 1971. As a result of the increased power and reduced noise of the new engine, Learjet further improved the design, and instead of being simply a variant of the 25, it became its own model, the 35.

Operational History

In 1976 American professional golfer Arnold Palmer used a Learjet 36 to establish a new round-the-world class record of 22,894 miles (36990 km) completed in 57 hours 25 minutes 42 seconds.

Learjet 35s made the bulk of Escuadrón Fénix during the 1982 Falklands War (Spanish: Guerra de las Malvinas ) mainly on diversion flights.

Production on the 35/36 series ceased in 1994.

As of January, 2007, the U.S. National Transportation Safety Board database lists 19 fatal accidents for the 35/35A, and two for the 36/36A.

Variants

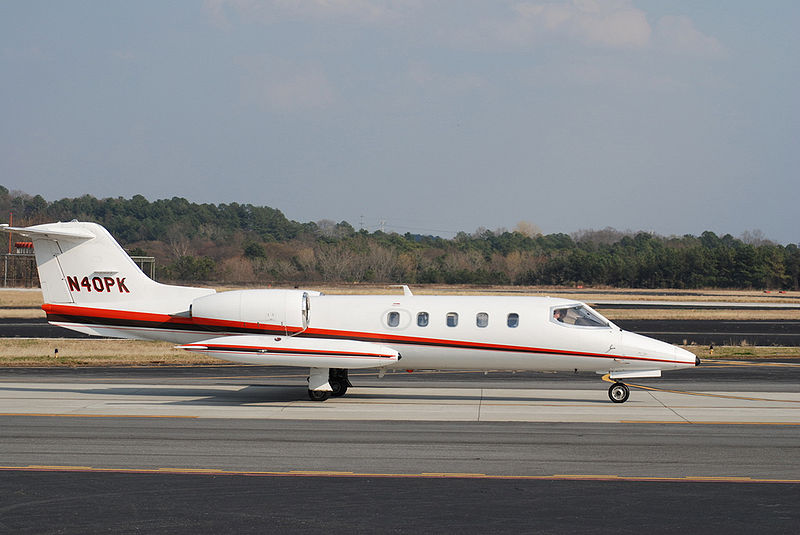

The Learjet 35A.
The Learjet 35A.

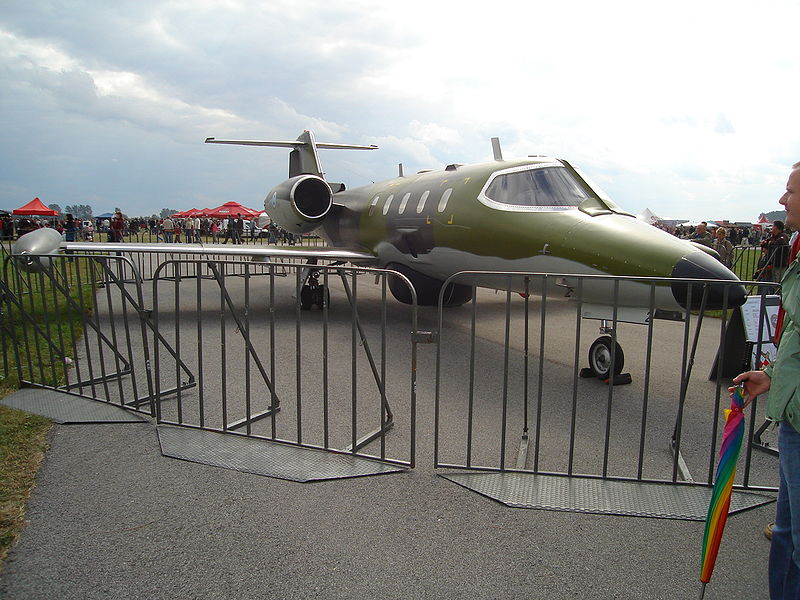

The Learjet 35AS.
The Learjet 35AS.

Learjet 35

The original Model 35 was powered by two TFE731-2-2A engines and was 13 inches longer than its predecessor, the Model 25. First flight of the prototype Model 35 was on 22 August, 1973, and the aircraft was FAA certified in July, 1974. It could carry up to eight passengers. There were 64 base-model 35s built.

Learjet 35A

The Model 35A is an upgraded Model 35 with TFE731-2-2B engines and a range of 2,789 miles, with a fuel capacity of 931 US gallons (3,524 L) with refueling accomplished at ground level through each wingtip tank. It was introduced in 1976, replacing the 35. Over 600 35As were built, with a production line that ended with serial number 677, in 1993.

C-21A

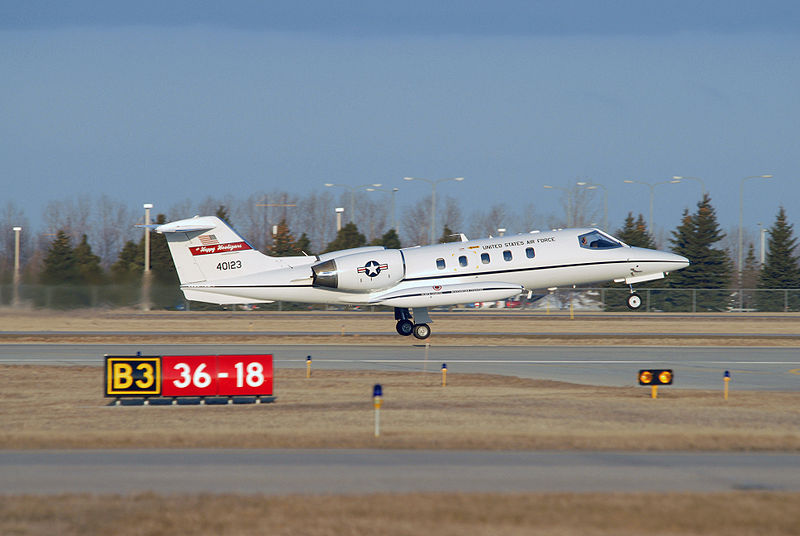

A C-21A Learjet attached to the North Dakota Air National Guard's (NDANG) 119th Fighter Wing.
A C-21A Learjet attached to the North Dakota Air National Guard's (NDANG) 119th Fighter Wing.

The C-21A is a military variant of the Learjet 35A, with room for eight passengers and 42 ft³ (1.26 m³) of cargo. In addition to its normal role, the aircraft is capable of transporting litters during medical evacuations.

Delivery of the C-21A fleet began in April 1984 and was completed in October 1985. Dyncorp International provides full contractor logistics support at seven worldwide locations.

There are 38 Air Force active duty aircraft, and 18 Air National Guard aircraft in the C-21A fleet. On 1 April 1997, all continental U.S.-based C-21As were realigned under Air Mobility Command, with the 375th Airlift Wing at Scott Air Force Base, Illinois, as the lead command. C-21As stationed outside the continental United States are assigned to the theater commanders.

EC-21A

Electronic warfare training version of the Learjet 35A.

PC-21A

Maritime patrol, anti-submarine warfare version of the Learjet 35A, equipped with a search radar, FLIR, infra-red linescanner, ESM and MAD systems, high-resolution TV, plus a hardpont under each wing, able to carry up to 454-kg (1,000-lb) in weight.

RC-21A

Reconnaissance version of the Learjet 35A, equipped with a long-range oblique photography cameras, side-looking synthetic aperture radar, podded surveillance camera systems.

UC-35A

Utility transport version of the Learjet 35A.

Learjet 36

The Model 36 is essentially identical to the 35, except that it has a larger fuselage fuel tank, giving it 500 miles longer range, but reducing the passenger area's length by 18 inches (0.46 m). It was certified, along with the 35, in July, 1974.

Learjet 36A

Like the 35A, the Model 36A has upgraded engines and a higher maximum gross weight. It was introduced in 1976, replacing the 36.

R-21A

Reconnaissance version of the Learjet 36A, equipped with a long-range oblique photography cameras, SLAR and a survellance camera system.

U-21A

Utility transport, training version of the Learjet 36A. Four were built for the Japan Maritime Self-Defense Force.

Notable accidents and incidents

  • The 1996 New Hampshire Learjet crash on Christmas Eve, 24 December 1996, in which a Learjet 35A crashed in New Hampshire, leading to the longest missing aircraft search in that state's history, lasting almost three years, and eventually resulted in Congressional legislation mandating improved emergency locator transmitters (ELTs) be installed in U.S.-registered business jets.
  • On 29 August 1999, a U.S. registered Learjet 35A owned by Corporate Jets, Inc., was shot down near Adwa, Ethiopia, while flying from Luxor, Egypt, to Nairobi, Kenya, with the loss of three persons.
  • On 25 October 1999, professional golfer Payne Stewart was killed in the crash of a Learjet 35. The plane apparently suffered a loss of cabin pressure at some point early in the flight. All on board are thought to have died of hypoxia, lack of oxygen. The plane, apparently still on autopilot, continued flying until one engine flamed out, most likely due to fuel starvation crashed near Aberdeen, South Dakota after an uncontrolled descent. The exact cause of the pressurization failure and the reason behind the crew's failure or inability to respond to it has not been definitively determined.
  • On 9 March 2006 Argentine Air Force Learjet 35A serial T-21 struck terrain and broke up shortly after takeoff from El Alto International Airport in La Paz, Bolivia killing all 6 on board. The Learjet was sent to Bolivia to deliver humanitarian aid.
  • On 4 November 2007, a Learjet 35A crashed in São Paulo, Brazil, after a failed takeoff attempt. It destroyed a house in a residential area near the Campo de Marte Airport, killing the pilot, co-pilot and 6 people of the same family who were in the house.

Operators

Military operators

 Argentina
 Brazil
 Finland
 Japan
 Switzerland
 United States

Specifications (C-21A)

Data from {GlobalSecurity}

General characteristics

  • Crew: two (pilot and co-pilot)
  • Capacity: 8 passengers and 3,153 lb (1,433 kg) of cargo
  • Length: 48 ft 7 in (14.71 m)
  • Wingspan: 39 ft 6 in (11.97m)
  • Height: 12 ft 3 in (3.71 mm)
  • Wing area: 253.3ft² (23.53m²)
  • Empty weight: 10,119 lb (4,590kg)
  • Loaded weight: lb (kg)
  • Useful load: lb (kg)
  • Max takeoff weight: 18,300 lb (8,235 kg)
  • Powerplant:Garrett TFE731-2-2B turbofan, 3,500 lbf (16kN) each
  • *Unit cost: $3.1 million (fiscal 1996 constant dollars)

Performance
