Sikorsky S-62

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Sikorsky_S-62

S-62 / HH-52A Seaguard

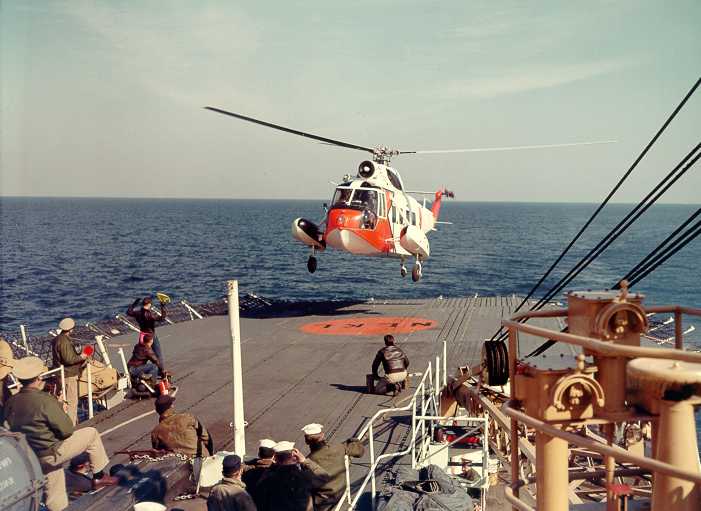

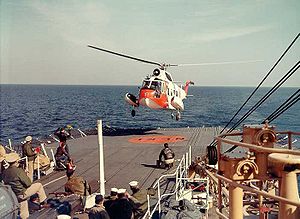

A USCG HH-52A Seaguard landing on an icebreaker
Role SAR/utility helicopter
Manufacturer Sikorsky Aircraft
First flight 1959
Introduced 1961
Primary user United States Coast Guard

The Sikorsky S-62 was a single turbine engine, single rotor amphibious helicopter originally developed as a commercial venture by the Sikorsky Aircraft Corporation of Stratford, Connecticut. It was used by the United States Coast Guard as the HH-52A Seaguard primarily for search and rescue, and now has been replaced by non-amphibious types such as the HH-65 Dolphin which rely on using a winch to retrieve passengers from a hover.

Design and development

A number of S-62s were bought by the US Navy Bureau of Aeronautics for the US Coast Guard for use as a search and rescue helicopter. Intitially designated HU2S-1G Seaguard, it was re-designated as the HH-52A Seaguard in 1962.

The HH-52A used a boat hulled shaped fuselage, smaller but similar to the US Navy's SH-3 (Sikorsky S-61), and was employed aboard the larger Coast Guard cutters and icebreakers. The S-62 used a single 1,250 hp (930 kW) General Electric T58-GE-8 turboshaft engine, the same powerplant used on the larger twin-engined SH-3.

The turbine powered S-62 could carry more weight and fly faster than the H-19 (S-55). The aircraft was first conceived and designed to be amphibious so that flotation gear would not be required for over water flights, and rescues could be made by landing on the water. The fuselage is watertight for landings on water or snow. Two outrigger floats resist pitching and rolling on the water. Although the HH-52A looks very different from the Sikorsky H-19, it used many of the same components.

Variants

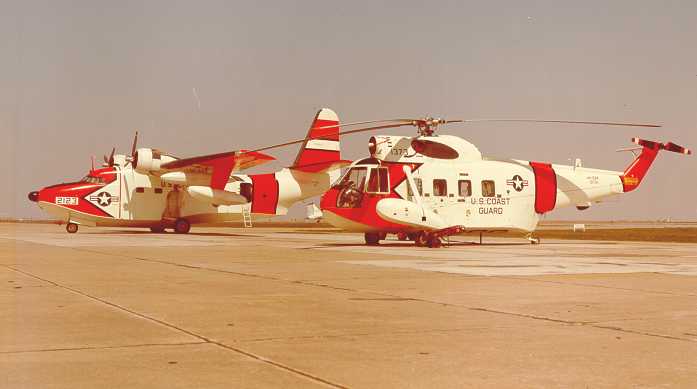

A Coast Guard Grumman HU-16E Albatross and a Sikorsky HH-52A Seaguard in March, 1964, probably at CG Air Station Mobile
A Coast Guard Grumman HU-16E Albatross and a Sikorsky HH-52A Seaguard in March, 1964, probably at CG Air Station Mobile
S-62
Prototype. First flew on the 22nd of may 1958.
S-62A
Amphibious transport helicopter, powered by a General Electric CT58-110-1 turboshaft engine, with accommodation for up to 11 passengers. The S-62A was the first production version.
S-62B
One S-62 was fitted with the main rotor system of the S-58.
S-62C
Company designation of the HH-52A Seaguard.
HU2S-1G
Original designation of the HH-52A Seaguard. Redesignated HH-52A in 1962.
HH-52A Seaguard
Search and rescue helicopter for the United States Coast Guard. 99 built including one transferred to Iceland.

Operators

Military operators

 Iceland
 India
 Japan
 Philippines
 Thailand
 United States

Survivors

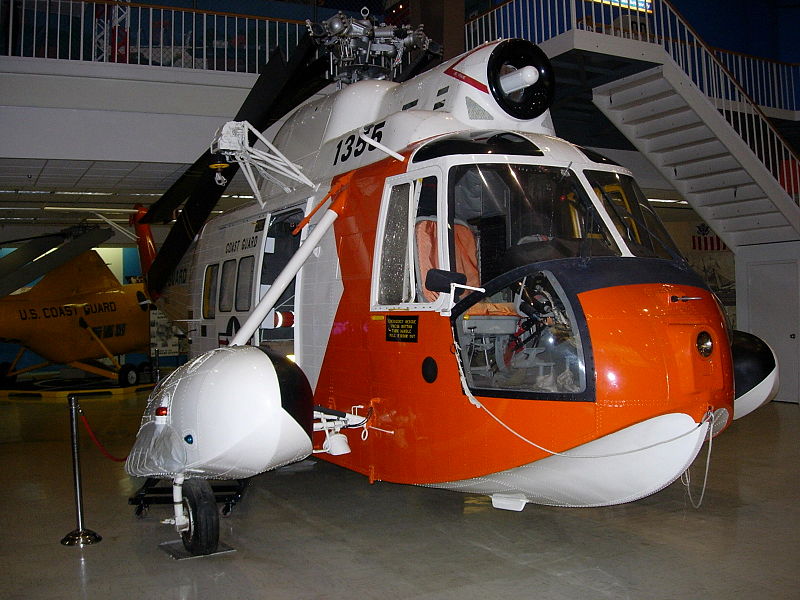

HH-52A Seaguard 'USCG1355' at the National Museum of Naval Aviation in Pensacola FL
HH-52A Seaguard 'USCG1355' at the National Museum of Naval Aviation in Pensacola FL

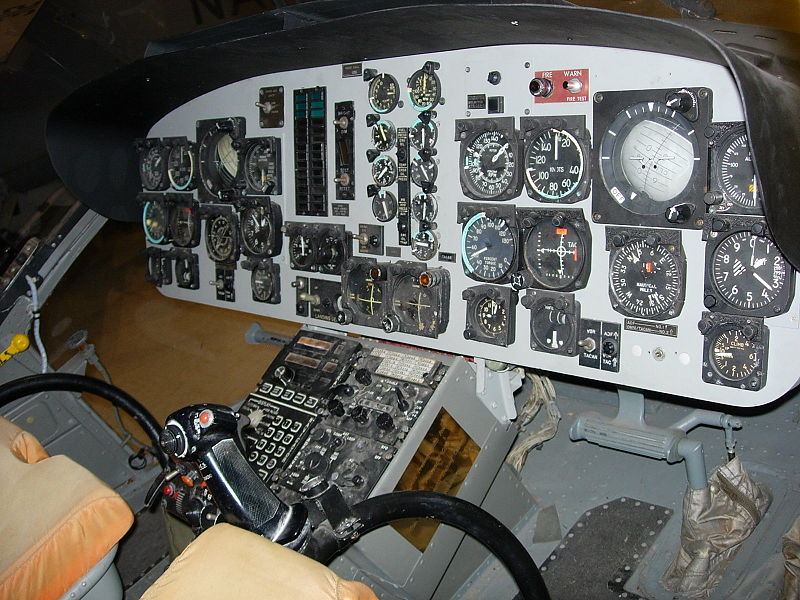

Cockpit of HH-52A Seaguard 'USCG1355' at the National Museum of Naval Aviation in Pensacola FL
Cockpit of HH-52A Seaguard 'USCG1355' at the National Museum of Naval Aviation in Pensacola FL
USCG1355
On display at the National Museum of Naval Aviation in Pensacola, Florida
USCG1357
Dillingham Airport HI
USCG1378
At the USS Alabama Museum in Mobile AL
USCG1383
American Helicopter Museum & Education Center - Westchester, PA
USCG1384
Gate guard at USCG Air Station Elizabeth City, NC
USCG1389
Delgado Community College, New Orleans LA
USCG1394
Mid-Atlantic Air Museum, Reading PA
USCG1398
In a mechanics school in Pocahantas AR
USCG1415
Museum of Flight (Seattle) Restoration Facility - Everett, WA
USCG1423
Cockpit section only at National Museum of Naval Aviation in Pensacola, Florida
USCG1428
On display at the New England Air Museum, Windsor Locks, CT
USCG1429
U.S.S. Intrepid Sea, Air & Space Museum - New York City
USCG1450
On display at the Pima Air & Space Museum

Specifications (HH-52A)

General characteristics

  • Crew: 3
  • Length: 44 ft 7 in (13.57 m)
  • Rotor diameter: 53 ft (16.16 m)
  • Height: 14 ft 2 in (4.33 m)
  • Empty weight: 4,956 lb (2,248 kg)
  • Useful load: 3,047 lb (1,382 kg)
  • Max takeoff weight: 8,300 lb (3,764.816 kg)
  • Powerplant:General Electric T58-GE-8 turboshaft, 1250 shp derated to 730 shp (500 kW)

Performance
