Albatros C.V

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Albatros_C.V

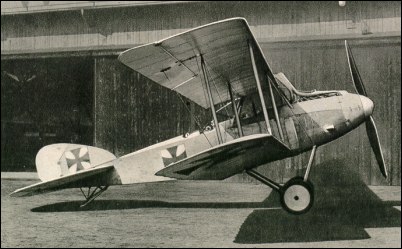

Albatros C.V
Role Reconnaissance aircraft
Manufacturer Albatros Flugzeugwerke
Primary user Luftstreitkräfte
Number built ~400

The Albatros C.V was a German military reconnaissance aircraft which saw service during World War I.

Design and development

The C.V was Albatros Flugzeugwerke's first revision of their B- and C-type reconnaissance aircraft since Ernst Heinkel left the firm for Hansa-Brandenburg. While retaining the same basic layout as the Heinkel-designed aircraft, the C.V featured considerably refined streamlining. The forward fuselage was skinned in sheet metal and a neat, rounded spinner covered the propeller boss. Power was provided by the new Mercedes D.IV, a geared eight-cylinder engine.

Operational history

The initial production version, designated C.V/16, suffered from heavy control forces and inadequate engine cooling. Albatros therefore produced the C.V/17 with a new lower wing, as well as balanced ailerons and elevators. The fuselage-mounted radiators were replaced by a single flush radiator in the upper wing.

These changes improved both handling qualities and engine cooling, but the downfall of the C.V was the unreliable Mercedes D.IV engine, which suffered from chronic crankshaft failures. The C.V was therefore replaced in production by the Albatros C.VII.

Variants

C.V/16
Original design with radiators on fuselage sides.
C.V/17
Revised aircraft with radiator on upper wing, and redesigned lower wing.

Operators

 German Empire

Specifications (C.V)

General characteristics

  • Crew: two, pilot and observer
  • Length: 8.95 m (29 ft 4 in)
  • Wingspan: 12.78 m (41 ft 11 in)
  • Height: 4.5 m (14 ft 9 in)
  • Wing area: 43.4 m² (467 ft²)
  • Empty weight: 1,069 kg (2,357 lb)
  • Gross weight: 1,585 kg (3,494 lb)
  • Powerplant: 1 × Mercedes D.IV, 164 kW (220 hp)

Performance

  • Maximum speed: 170 km/h (110 mph)
  • Range: 450 km (280 miles)
  • Service ceiling: 3,000 m (9,840 ft)
  • Rate of climb: 2.1 m/s (410 ft/min)

Armament

See also

  • Grosz, Peter M. (2002). Windsock Datafile 81 Albatros C.V. Berkhamsted: Albatros Productions Ltd..
