Albatros C.XII

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Albatros_C.XII

Albatros C.XII

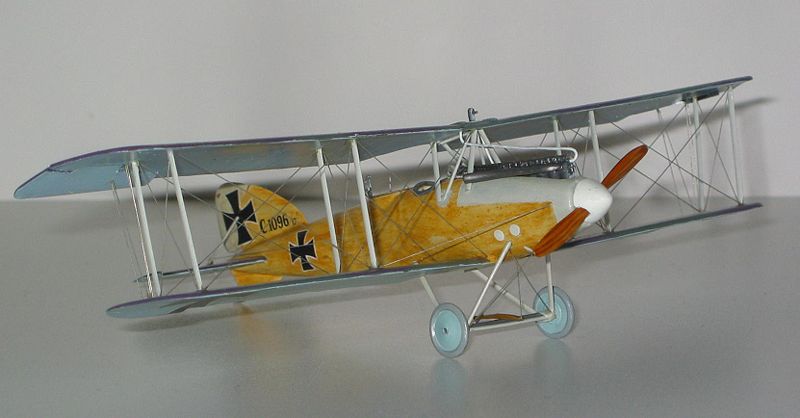

1/72 scale model by Paul Thompson
Role Reconnaissance aircraft
Manufacturer Albatros Flugzeugwerke
Primary user Germany

The Albatros C.XII was a German military reconnaissance aircraft which saw service during World War I. It differed markedly from previous Albatros C-type aircraft by adopting an elliptical-section fuselage similar to that of the Albatros D.V. The C.XII also featured a tailplane of reduced area, but it retained the wings of the earlier Albatros C.X.

Despite the aerodynamic advantages, no significant increase in performance was achieved over the C.X. Examples remained in service until the end of the War.

Operators

 German Empire

Specifications (C.XII)

General characteristics

  • Crew: two, pilot and observer
  • Length: 8.84 m (29 ft 0 in)
  • Wingspan: 14.12 m (46 ft 4 in)
  • Height: 3.25 m (10 ft 8 in)
  • Wing area: 42.7 m² (459 ft²)
  • Empty weight: 580 kg (1,280 lb)
  • Gross weight: 1,061 kg (2,340 lb)
  • Powerplant: 1 × Mercedes D.IVa, 190 kW (260 hp)

Performance

  • Maximum speed: 178 km/h (110 mph)
  • Endurance: 4 hours  20 min
  • Service ceiling: 5,640 m (18,500 ft)
  • Rate of climb: 4.2 m/s (820 ft/min)

Armament

  • 1 × forward-firing 7.92 mm (.312 in) Spandau LMG 08/15 machine gun
  • 1 × 7.92 mm (.312 in) Parabellum MG14 machine gun for observer

See also




Text from Wikipedia is available under the Creative Commons Attribution/Share-Alike License; additional terms may apply.
