Rumpler C.IV

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Rumpler_C.IV

Rumpler C.IV
Role Reconnaissance aircraft
Manufacturer Rumpler Flugzeugwerke
Designed by Dr. Edmund Rumpler
Introduced 1917
Primary user Luftstreitkräfte
Variants Rumpler 6B-2

The Rumpler C.IV was a German single-engine, two-seat reconnaissance biplane. The C.IV was a development of C.III with different tail surfaces and using a Mercedes D.IVa engine in place of C.III's Benz Bz.IV. In addition to the parent company, the aircraft was also built by Pfalz Flugzeugwerke as the Pfalz C.I. Another variant of the basic design was the Rumpler 6B-2 single-seat floatplane fighter, with a 120 kW (160 hp) Mercedes D.III engine, built for the Kaiserliche Marine (Imperial Navy).

For a two-seater reconnaissance aircraft, Rumpler C.IV had an excellent performance, which enabled it to remain in front-line service until the end of World War I on the Western Front, as well as in Italy and Palestine. Its exceptional ceiling allowed pilots to undertake reconnaissance secure in the knowledge that few allied aircraft could reach it.

Specifications (C.IV)

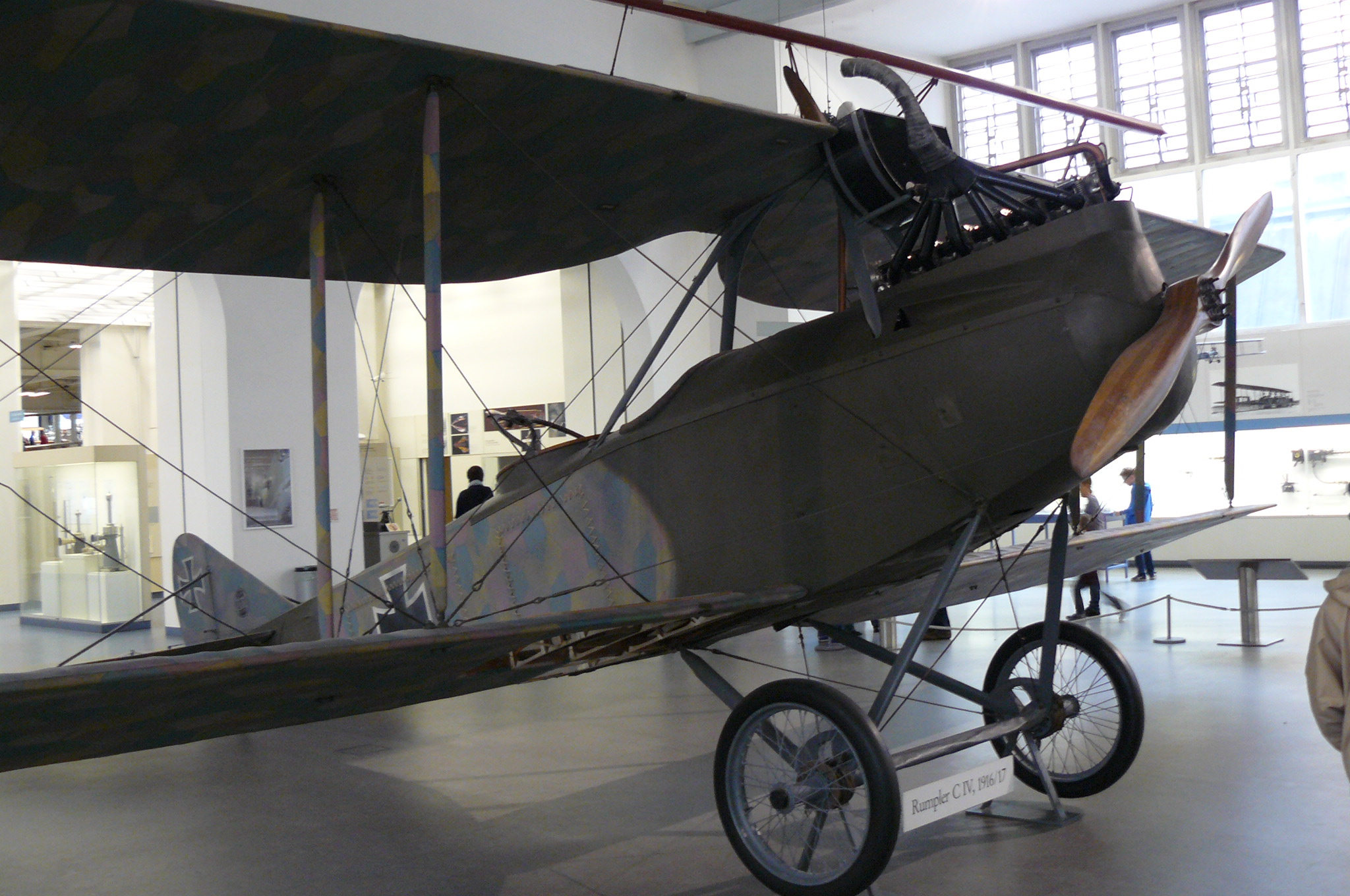

Rumpler C.IV as seen in Deutsches Museum



Rumpler C.IV as seen in Deutsches Museum

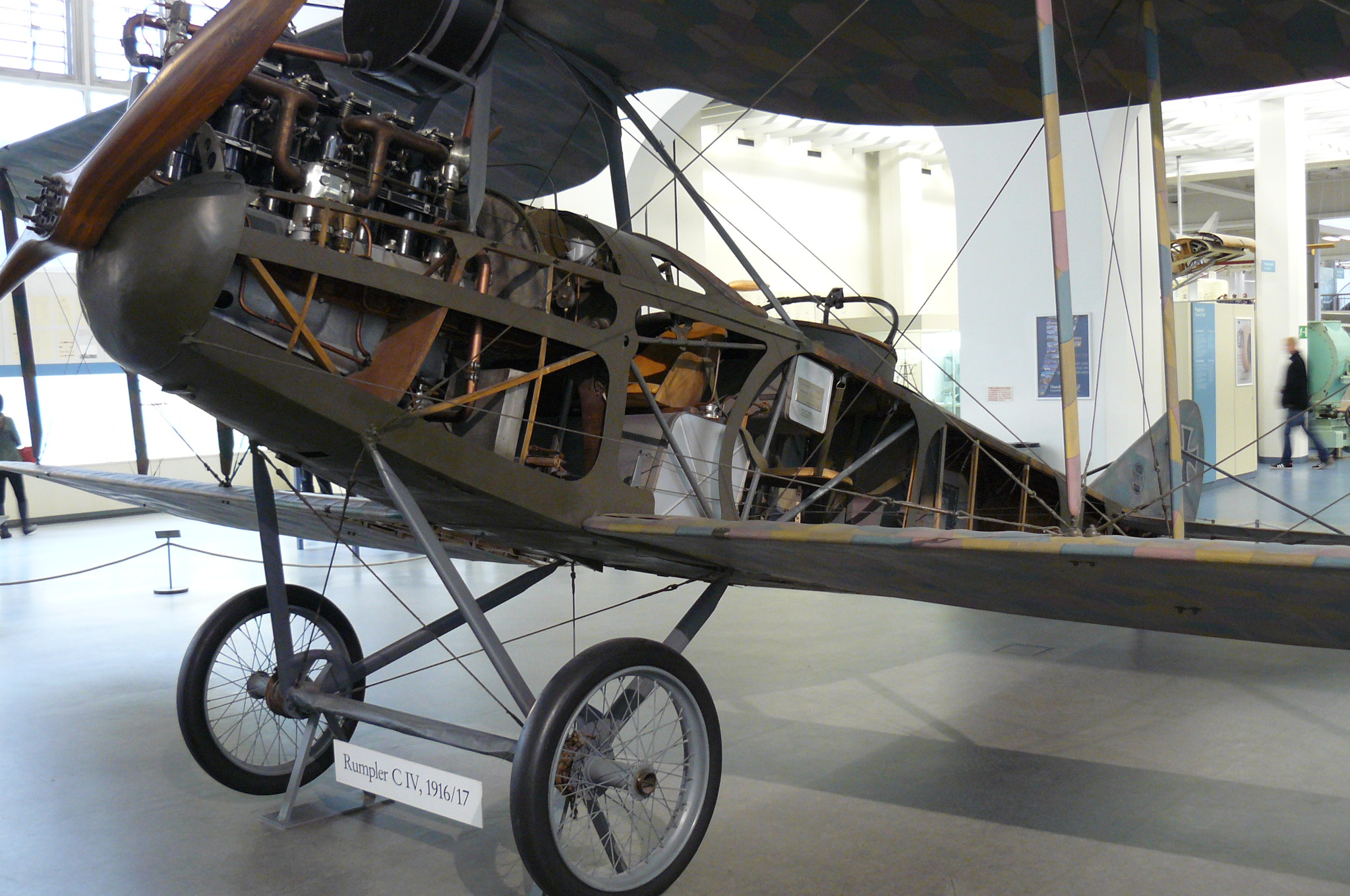

Rumpler C.IV inside visible



Rumpler C.IV inside visible

General characteristics

  • Crew: 2, pilot and observer
  • Length: 8.41 m (27 ft 7 in)
  • Wingspan: 12.66 m (41 ft 6½ in)
  • Height: 3.25 m (10 ft 8 in)
  • Wing area: 33.5 m² (361.8 ft)
  • Empty weight: 1,080 kg (2,376 lb)
  • Loaded weight: 1,530 kg (3,366 lb)
  • Powerplant:Mercedes D.IVa water-cooled in-line, 194 kW (260 hp)

Performance

Armament

  • 1 × fixed, forward-firing 7.92 mm (.312 in) LMG 08/15 with an interruptor gear
  • 1 × 7.92 mm (.312 in) Parabellum MG14 machine gun on a ring mounting
  • 100 kg (220 lb) of bombs

See also

Comparable aircraft

Bibliography

  • Gray, Peter and Thetford, Owen. German Aircraft of the First World War. London, Putnam, 1962.
  • Munson, Kenneth. Aircraft of World War I. London: Ian Allan, 1967. ISBN 0-7110-0356-4.
  • Munson, Kenneth. Bombers, Patrol and Reconnaissance Aircraft 1914 - 1919. ISBN 0-7537-0918-X
  • Munson, Kenneth. Fighters, Attack and Training Aircraft 1914 - 1919. ISBN 0-7537-0916-3.
  • Taylor, John W. R. Jane's All The World's Aircraft 1969–70. London: Sampson Low, Marston & Company, 1969. ISBN 0-354-00051-9.
