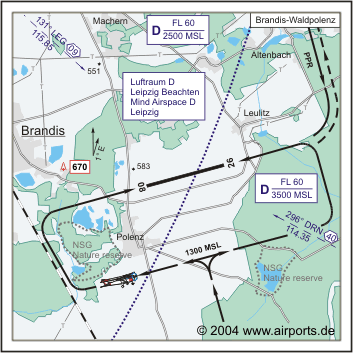

Brandis Waldpolenz Airport |
ICAO Code EDBN
Name BRANDIS - Waldpolenz
Land Deutschland
Bundesland Sachsen
Letzte Änderung 30. Juni 2001
Kategorie Verkehrslandeplatz / Public Airfield
Betreiber / Operator ABC Flugwerft Leipzig GmbH
Adresse Bornaische Str. 60
ZIP / City D-04416 Markkleeberg
Fon +49 (0)34292 / 72012
Fax 68264
Internet Nein
Lage / Location 1.5 NM E Brandis
LFZ / ACFT Bis / up to 5700 kg, 14000 kg PPR
Helicopter Ja / Yes
Motorsegler / GLDP Ja / Yes
Ballone PPR
UL PPR
Luftschiffe / Airships PPR
Summer 0700-1700, SR-30-0700 und / and 1700-SS+30 PPR
Winter 0800-1800, SR-30 - 0700 und / and 1800-SS+30 PPR
O/T PPR
Einschränkungen siehe AD 1-6/ restrictions see AD 1-6
Luftaufsicht / OPS +49 (0)34292 / 72012, Fax 68264
AIS EDDB +49 (0)30 / 60918250
MET (0190) 077226
Gafor 22
Zoll / Customs Nein / No
Fuel 100 LL, Jet A1
Oil 15W50, D 100, D 80, Aero 100
Hangar Beschränkt / Limited
Höhe / Elevation 535 ft / 180 m
FIS Berlin Information 125.800, Berlin Radar 124.175
Rufzeichen / Call sign Brandis Info
Frequenz Tower 129.250 GE
NAV Aids 131°/9 NM from LEG 115.85 296°/40 NM from DRN 114.35
Koordinaten 51 19, 72 N / 12 39, 49 E
Platzrunde / Traffic circuit S 1300
Landebahnen / RWY 1
RWY 1400 x 30 m, ConcreTE
RWY 08 TKOF 1400 m; LDG 1400 m
RWY 26 TKOF 1400 m; LDG 1400 m
MTOW 5700 kg, PPR 14000 kg
Bemerkungen / Remarks Direktanflügge PPR (Brandis Info) / Direct
approaches PPR, Wohngebiete meiden
WWW: http://www.airports.de/airport.php?ICAO=EDBN
Images and information placed above are from
http://www.airports.de/airport.php?ICAO=EDBN
We thank them for the data!
| General Info
|
| Country |
Germany
|
| ICAO ID |
EDUB
|
| Time |
UTC+1(+2DT)
|
| Latitude |
52.438500
52° 26' 18.60" N
|
| Longitude |
12.458333
012° 27' 30.00" E
|
| Elevation |
103 feet
31 meters
|
| Magnetic Variation |
001° E (01/05)
|
| Operating Agency |
CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
|
| Operating Hours |
NO OPERATING HOURS LISTED
|
| Daylight Savings Time |
Last Sunday in March to last Sunday in October
|
| Communications
|
| BRIEST INFO |
130.125
|
| BERLIN INFO |
126.35
|
| Runways
|
ID
|
Dimensions |
Surface |
PCN |
ILS
|
| 07/25 |
4916 x 98 feet
1498 x 30 meters |
CONCRETE. |
- |
NO
|
| Remarks
|
| FUEL |
(NC-100LL, A1)
|
| OPR HOURS |
Opr HX
|
| RSTD |
PPR.
|
Runway 07/25
4916 x 98 feet
1498 x 30 meters
| Runway 07
|
| Surface |
CONCRETE.
|
| True Heading |
073.0
|
| Latitude |
52.436467
52° 26' 11.28" N
|
| Longitude |
12.447669
012° 26' 51.61" E
|
| Landing Distance |
4916 feet
1498 meters
|
| Takeoff Distance |
5408 feet
1648 meters
|
| Overrun Length |
492 feet
150 meters
|
| Overrun Surface |
CONCRETE.
|
| Runway 25
|
| Surface |
CONCRETE.
|
| True Heading |
253.0
|
| Latitude |
52.440475
52° 26' 25.71" N
|
| Longitude |
12.468706
012° 28' 07.34" E
|
| Landing Distance |
4916 feet
1498 meters
|
| Takeoff Distance |
5408 feet
1648 meters
|
| Overrun Length |
492 feet
150 meters
|
| Overrun Surface |
CONCRETE.
|
The content above was published at Airports-Worldwide.com in 2005.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
|
|
