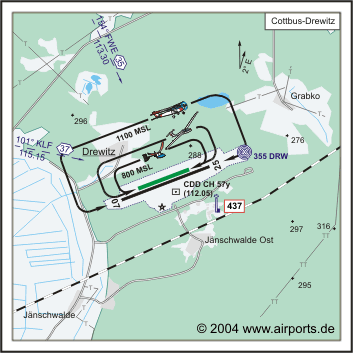

Cottbus - Drewitz Airfield

Cottbus - Drewitz Airfield

ICAO Code EDCD
Name COTTBUS - Drewitz
Land Deutschland
Bundesland Brandenburg
Letzte Änderung 8. Dezember 2004

Kategorie Verkehrslandeplatz / Public Airfield
Betreiber / Operator Flughafen Süd-Brandenburg-Cottbus GmbH

Lage / Location 9.7 NM NE Cottbus, 0.8 NM SE Drewitz
Nachtflug / NVFR NVFR
Instrumentenflug / IFR IFR
LFZ / ACFT Bis / up to PCN 45/R/A/W/T,
Helicopter Ja / Yes
Motorsegler / GLDP Ja / Yes
Segelflugzeuge / GLD Ja / Yes
Ballone Ja / Yes
UL Ja / Yes
Fallschirmspringen / PJE Ja / Yes
Luftschiffe/Airships
Summer MON-FRI, SAT, SUN, HOL 0600-1800
Winter 0700-SS+30 max 1700 O/T O/R
O/T PPR
Luftaufsicht / OPS +49 (0)35607 / 695, 73345, Fax 73341
AIS EDDB +49 (0)30 / 60918250
Tower Turm +49 (0) 3473 799833
MET (0190) 077222
Gafor 19

Zoll / Customs O / R 24 hours vorher/prior
Fuel 100 LL, Jet A1
Oil D 80, D 100, 15W50, W 80, W 100
Hangar Ja / Yes
Höhe / Elevation 271 ft / 83 m
FIS Berlin Information 125.800
VDF / QDM 118.125
Rufzeichen / Call sign Drewitz Info
Frequenz Tower 118.125 EN / GE
NAV Aids 248°/06 NM from DRW NDB 355 154°/35 NM from FWE VOR/DME 113.30/Ch 80 101°/37 NM from KLF VOR/DME 115.15/Ch 98y DME CCD 112.05/Ch 57y am Platz/at field
Koordinaten 51 53, 37 N / 14 31, 92 E
Platzrunde / Traffic circuit N 1100
Landebahnen / RWY 2
RWY 2484 x 45 m, CONCRETE
RWY 07 TKOF 2484 m; LDG 2484 m
RWY 25 TKOF 2484 m; LDG 2484 m
MTOW PCN 45/R/A/W/T
RWY II 2000 x 50 m, Gras
RWY 07 TKOF 2000 m; LDG 2000 m
RWY 25 TKOF 2000 m; LDG 2000 m
MTOW RWY II 5700 kg
Bemerkungen / Remarks Segelflug ist auf der nördlichen RWY durchzuführen/Flight operations of gliders shall be performed on the northern RWY
Restaurant - Yes

Opened before 1945. Base for East German Airforce fighter until 1982 and East German Army helicopters from 1982 until 1990. Used by German Army since 1990. Aviation museum.

Adresse

Flugplatz
ZIP / City D-03197 Jänschwalde Ost

Fon +49 (0)35607 / 693
Fax 694

WWW: http://www.airports.de/airport.php?ICAO=EDCD

More information about this airfield can be found at:
http://www.mil-airfields.de/de/list_C.htm




Images and information placed above are from
http://www.airports.de/airport.php?ICAO=EDCD

We thank them for the data!



General Info
Country Germany
ICAO ID EDCD
Time UTC+1(+2DT)
Latitude 51.889475
51° 53' 22.11" N
Longitude 14.531986
014° 31' 55.15" E
Elevation 274 feet
84 meters
Type Civil
Magnetic Variation 002° E (01/05)
Beacon Yes
Operating Agency CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
DREWITZ INFO 118.125
BERLIN INFO 125.8


Runways
ID
Dimensions Surface PCN ILS
07/25 8150 x 148 feet
2484 x 45 meters
CONCRETE. 045RAWT NO
07L/25R 6562 x 164 feet
2000 x 50 meters
GRASS OR EARTH NOT GRADED OR ROLLED. - NO


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
NDB DRW DREWITZ - 355 1.2 NM 246.7
DME CDD DREWITZ 057Y - At Field -


Remarks
CAUTION Gldr act.
CSTMS/IMG CSTMS 24 hr PPR.
FUEL (NC-100LL, A1)
MISC Sod parl strip N of rwy.
OPR HOURS Opr 0700Z-SS+30/1700Z, OT O/R (0600-1800Z, PPR 1800-0600Z DT).
RSTD IFR trng PPR, fone C030-6951-2488.

Runway 07/25

8150 x 148 feet
2484 x 45 meters

Runway 07
Surface CONCRETE.
True Heading 071.0
Latitude 51.885897
51° 53' 09.23" N
Longitude 14.514900
014° 30' 53.64" E
Elevation 251.0 feet
77 meters
Slope 0.2°
Landing Distance 8150 feet
2484 meters
Takeoff Distance 8150 feet
2484 meters
Lighting System HIRL
S
PAPI

Runway 25
Surface CONCRETE.
True Heading 251.0
Latitude 51.893047
51° 53' 34.97" N
Longitude 14.549078
014° 32' 56.68" E
Elevation 271.0 feet
83 meters
Slope -0.2°
Landing Distance 8150 feet
2484 meters
Takeoff Distance 8150 feet
2484 meters
Lighting System HIRL
S
PAPI

Runway 07L/25R

6562 x 164 feet
2000 x 50 meters

Runway 07L
Surface GRASS OR EARTH NOT GRADED OR ROLLED.
True Heading 071.3
Latitude 51.887917
51° 53' 16.50" N
Longitude 14.519678
014° 31' 10.84" E
Landing Distance 6562 feet
2000 meters
Takeoff Distance 6562 feet
2000 meters

Runway 25R
Surface GRASS OR EARTH NOT GRADED OR ROLLED.
True Heading 251.3
Latitude 51.893675
51° 53' 37.23" N
Longitude 14.547200
014° 32' 49.92" E
Landing Distance 6562 feet
2000 meters
Takeoff Distance 6562 feet
2000 meters

Navaids

DREWITZ
Type ID Channel Freq Country State
NDB DRW - 355 Germany -
Latitude Longitude Airport
51.896739
51° 53' 48.26" N
14.562514
014° 33' 45.05" E
EDCD

Navaids

DREWITZ
Type ID Channel Freq Country State
DME CDD 057Y - Germany -
Latitude Longitude Airport
51.886978
51° 53' 13.12" N
14.531969
014° 31' 55.09" E
EDCD


The content above was published at Airports-Worldwide.com in 2005.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
