Francisco Bangoy Intl Airport



Francisco Bangoy International Airport
Paliparang Pandaigdig ng Francisco Bangoy
Tugpahanang Pangkalibutanon sa Francisco Bangoy

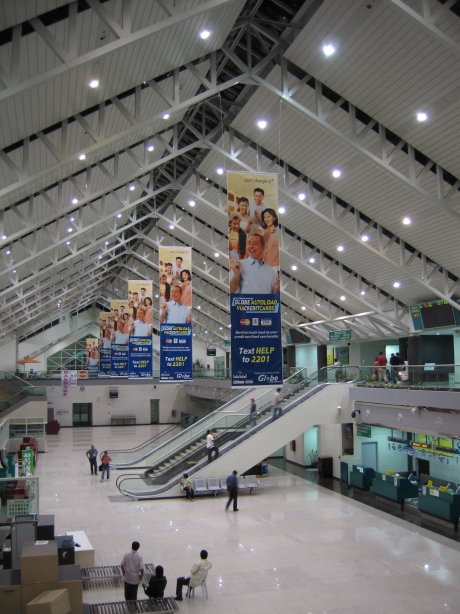

Inside the Davao International Airport terminal
IATA: DVO – ICAO: RPMD
Summary
Airport type Public
Operator Civil Aviation Authority of the Philippines
Serves Davao City
Location Barangay Sasa, Buhangin, Davao City
Hub for Cebu Pacific
Elevation AMSL 18 m / 59 ft
Coordinates 7°7′31.88″N 125°38′44.80″E / 7.1255222°N 125.645778°E / 7.1255222; 125.645778
Runways
Direction Length Surface
m ft
05/23 3,000 9,842 Asphalt concrete
Statistics (2009)
Passengers 1,967,825
Aircraft movements 16,194
Metric tonnes of cargo 53,302
Statistics from the Civil Aviation Authority of the Philippines.

Francisco Bangoy International Airport (Filipino: Paliparang Pandaigdig ng Francisco Bangoy, Cebuano: Tugpahanang Pangkalibutanon sa Francisco Bangoy), also called Davao International Airport (IATA: DVO, ICAO: RPMD), is the main airport serving Davao City in the Philippines. It is the busiest airport in the Mindanao. The airport has a single 3,000-meter precision runway.

A new terminal replaces the previous airport terminals, which lie just across it, in handling both domestic and international flights operating to and from Davao. The modern facility is designed to handle approximately 2 million passengers annually and 84,600 tons of cargo annually. The added capacity is also complemented by the latest navigational, security, and baggage handling equipment.

The modernization and upgrading of the airport facilities aims to cement Davao as a hub for tourism and foreign investment in the region. Development was funded by a forty million-dollar loan from the Asian Development Bank, co-financed by the European Investment Bank for twenty-five million ECUs, and through budgetary allocations from the government. The total cost of the project amounted to $128 million.

After almost a decade, the new terminal was finally inaugurated on December 2, 2003. Initial construction began in 2000 while plans for construction were announced in 1992.

On November 12, 2007, Cebu Pacific announced this airport as its third hub.

Despite the fact that Davao International Airport is considered "international", it currently services only one international destination, Singapore. However, there are occasional charter flights to Davao from Manado by Wings Air. Cebu Pacific used to serve Davao-Hong Kong and Singapore, however these flights have been discontinued in 2009.

History

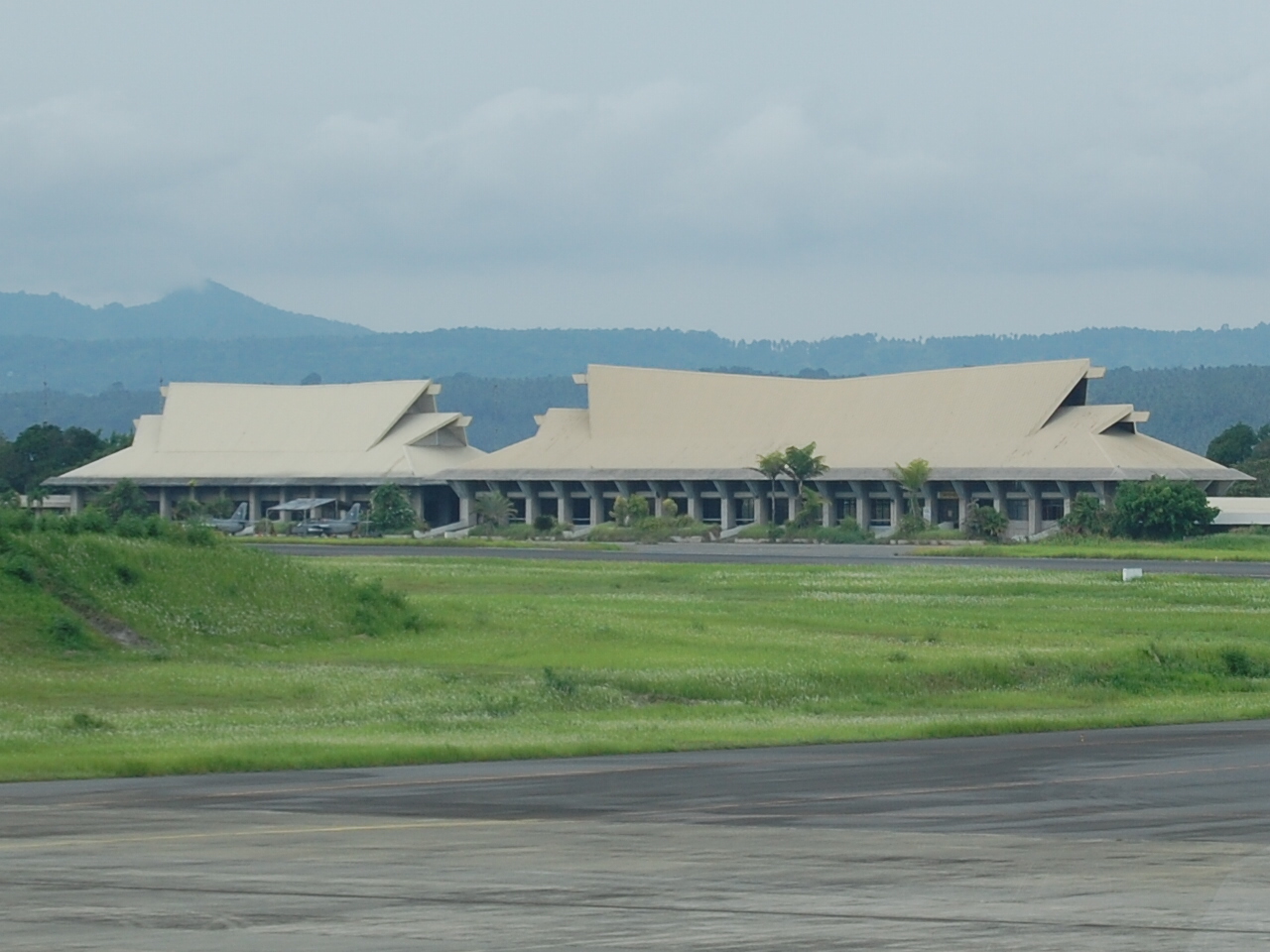

The airport's old terminal buildings were in use until 2003.
The airport's old terminal buildings were in use until 2003.

Francisco Bangoy International Airport began operations in the 1940s with a donation of land in Barangay Sasa, located in the Buhangin district of Davao City, by Francisco Bangoy, the patriarch of an influential family residing in the city. At the time it began operation, the airport merely consisted of a 1,200-meter unpaved grass runway and quonset huts serving as terminal buildings. At the time, and throughout much of the 1940s and 1950s, both Philippine Airlines and the Philippine Air Force provided air service to the city.

By 1959, the complex consisted of a small control tower and several low-rise buildings. A new terminal designed by a Filipino architect Leandro Locsin, with a capacity of one million passengers, was constructed in 1980 and the runway was progressively extended from its original length of 1,200 meters to its current 3,000 meters. Both projects were funded during the term of then-Congressman Manuel Garcia, whose congressional district covers the airport perimeter.

Rapid growth at the airport precipitated the construction of a P15 million interim international terminal beside the airport's then-existing terminal, and then eventually a new, larger terminal building which would consolidate the two existing terminals. In planning since 1992, construction began in 2000 and subsequently inaugurated on December 2, 2003, with a capacity double that of the old airport terminal. The construction of the new P2.7 billion building was funded by both the Asian Development Bank and the European Investment Bank.

Structure

Terminal

The P2.7 billion passenger terminal is a Malay architecture-inspired building which is four times larger than the old terminal. It is highly computerized, more secure and has more commercial spaces for concessionaries at approximately 9,000 sq. meter. It has four units of jet bridges (2 for domestic planes and 2 for international) for passengers. It has also a Flight Information Display System and Closed Circuit Television System complementing the terminal's security system.

The terminal has 14 domestic and international counters that can handle a steady flow of passenger traffic. The Check-in counters are equipped with electronic weighing scales and conveyors and its baggage handling system is also computerized.

The Cargo Terminal Building covers almost 5,580 sq. meters and can handle up to 84,600 tons of cargo a year.

Runway

The airport has a single 3,000-meter long runway that can handle wide-bodied aircraft such as the Airbus A330, the Airbus A340 and the Boeing 747. The installation of a new instrument landing system (ILS) for both Runways 05 and 23 upgraded its compliance to International Civil Aviation Organization (ICAO) operating category-Precision Approach Category 1. It can accommodate 8-10 aircraft landings per hour, depending on size and has the equivalent 8 gate holding areas for those aircraft. The airport has also a taxiway.

Other structures


The airport's Air Traffic Control Tower is considered as one of the most sophisticated in the Philippines.
The airport's Air Traffic Control Tower is considered as one of the most sophisticated in the Philippines.

Besides the main terminal building, there are also new support facilities like the Administration Building, Airfield Maintenance Building, Central Plant Building, Hangar for Military and Training aircraft and Fire/Crash/Rescue Building. It has a 688-slot car parking area and 4 slots for shuttle buses. It has a 3-megawatt standby power generator. The Air Traffic Control tower is considered as the most advanced in the Philippines. There are also 2 Mabuhay lounges of Philippine Airlines inside the airport premises.

Airlines and destinations

Airlines Destinations
Airphil Express Cagayan De Oro, Cebu, Manila, Zamboanga
Cebu Pacific Cagayan de Oro, Cebu, Iloilo, Manila, Zamboanga
Philippine Airlines Manila
SilkAir Singapore
Zest Airways Manila
Notes

Accidents and Incidents

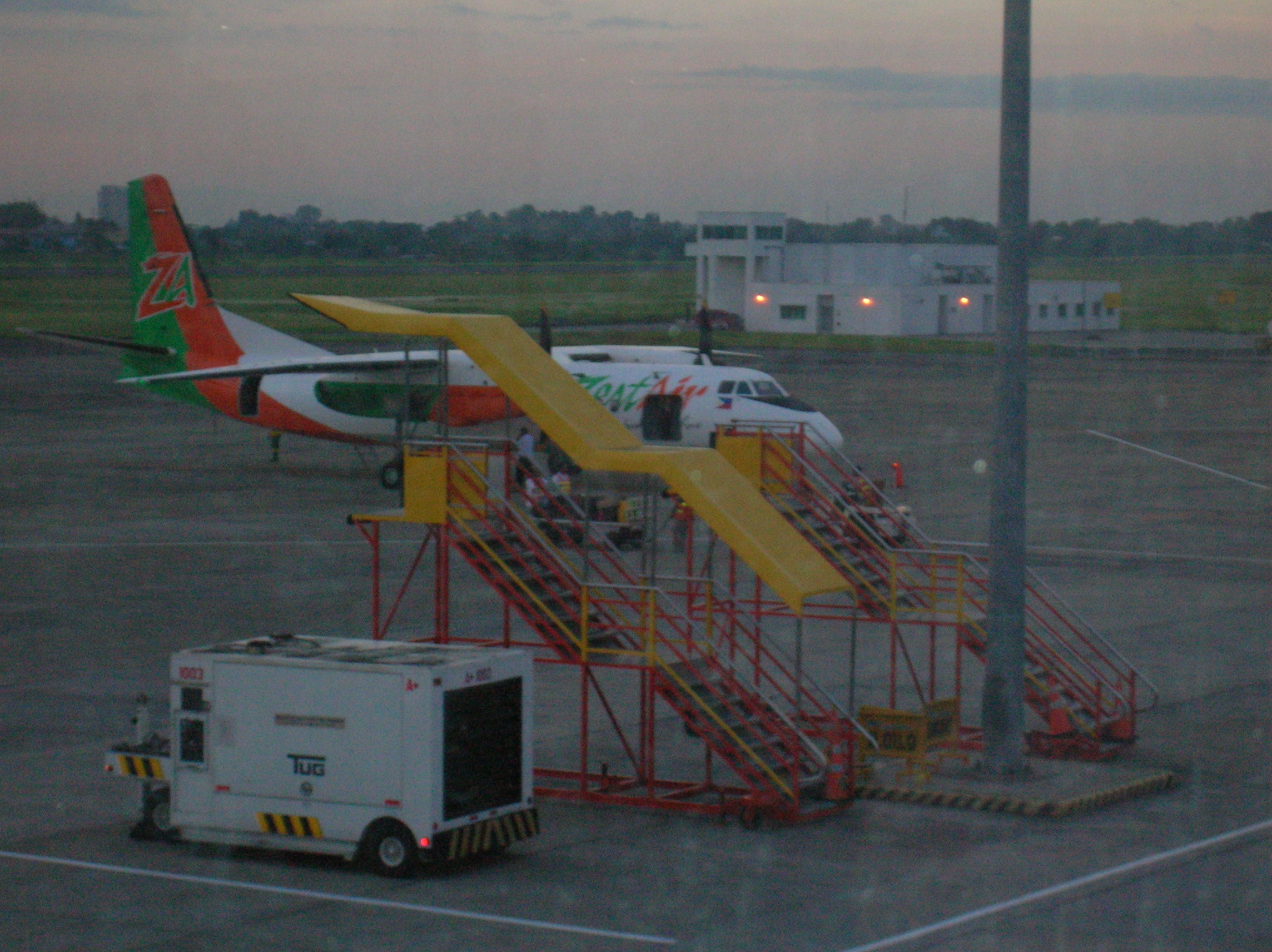

Zest Airways Modern Ark 60 (MA60) on the ramp.
Zest Airways Modern Ark 60 (MA60) on the ramp.
  • On April 19, 2000, Air Philippines Flight 541, a Boeing 737-200 en route from Manila to Davao crashed near the airport killing 131 people.
  • On March 4, 2003, a bomb exploded in the waiting shed outside the old terminal building, killing 21 people. At least 145 others were injured when the bomb went off.
  • On the night of August 25, 2008, a Philippine Air Force, C-130 Hercules bound for Iloilo City crashed into Davao Gulf shortly after take off from Davao International Airport. The aircraft sank 800 ft. into the gulf. After several days of a search-and-retrieval operation, the heavy transport aircraft was found with the help of a US Naval Ship. The incident killed all crew on board including 2 Philippine Army soldiers.


The above content comes from Wikipedia and is published under free licenses – click here to read more.


General Info
Country Philippines
ICAO ID RPMD
Time UTC+8
Latitude 7.125522
07° 07' 31.88" N
Longitude 125.645778
125° 38' 44.80" E
Elevation 96 feet
29 meters
Type Civil
Magnetic Variation 000° E (01/06)
Operating Agency CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
Near City Davao
Island Group Mindanao I
Operating Hours 24 HOUR OPERATIONS
International Clearance Status Airport of Entry


Communications
DAVAO TWR 118.1
DAVAO RDO 124.0
6802
3671
ATIS 127.0
DAVAO APP 122.4


Runways
ID Dimensions Surface PCN ILS
05/23 9842 x 148 feet
3000 x 45 meters
ASPHALT 073FCWT YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
VOR-DME DAO DAVAO 058X 112.1 At Field -
NDB DAO DAVAO - 364 At Field -


Supplies/Equipment
Fuel Jet A1+, Jet A1 with icing inhibitor.

100/130 octane gasoline, leaded, MIL-L-5572F (GREEN)

80/87 octane gasoline, leaded, MIL-L-5572F (RED)


Remarks
CAUTION Hill 145' 1500' fr thld of Rwy 05.
CSTMS/AG/IMG CSTMS and IMG avbl 0000-0900Z PN rqr.
FUEL Avbl 2200-1000Z. (NC-A1; AvGas O/R - Petron Fuel Depot).
LGT Rwy 05 GS 3.3 . Rwy 23 GS 3.0 .
RSTD Two-way rdo rqr. Acft abv 143,000 lbs AUW 180 turn at rwy ends only. All acftmax rad turns.



The content above was published at Airports-Worldwide.com in 2010.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
