Málaga Airport

Málaga Airport is located 8km (5 miles) southwest of Malaga City and although it has 2 Terminals 99% of flights arrive at the newer and larger Terminal 2, all information within this guide relates to Terminal 2. Málaga Airport in Spanish is known as Aeropuerto de Malaga.

The airport is the fourth busiest Airport in Spain and handles around 12,000,000 (12 Million) passengers per year. With a flying time of only 2½-3 hours from the UK and Ireland. The Costa del Sol offers the fantastic year long weather and is the perfect destination for a full holiday or long weekend break.

At the moment there is a huge amount of building work going on at Málaga Airport and this is causing a little bit of disruption, not to flights but to the amount of time it takes you to get to and from the airport.

When the building work is completed in a few years there will be a new terminal building which give give the airport the ability to deal with 50% more passengers at peak times. The Málaga Airport parking area is doubling in size and there will be a huge undercover transport area where you will be able to catch the Málaga Airport buses and Málaga Airport trains.

For the time being the main Malaga arrivals is on the ground floor of both terminal buildings and the large Malaga departures hall is on the upper floor. The Málaga Airport taxis can be found on the ground floor just outside the arrivals hall and when you return they will simply drop you off on the upper level.

Málaga Airport has for a long time been the only real airport of merit in Andalucia. This is changing a little as low cost airlines such as Ryanair and Monarch have started to offer direct flights from the UK to Jerez Airport, Granada Airport, Seville Airport and Almeria Airport.

The use of these other airports has done little to stifle demand for flights into Malaga and each year the Airport seems to exceed record passenger numbers. This is due in part to the large number of expats who have made the Costa del Sol their home and a huge rise in the number of holiday home owners.

History

The history of Malaga Airport began on 9 March 1919, when a Salmson 2A plane which was flying over the city looking for a place to land touched down on a plot of land known as “El Rompedizo”.

Travelling in the aeroplane was Pierre Latécoère, who at that time was looking for locations in Spain to set up various aerodromes. Latécoère's aim was to establish a commercial airline to link France with its African colonies through Spain and, later, to reach South America.

After several test flights, Didier Daurat, future manager of the Malaga aerodrome, began scheduled service between Toulouse, Barcelona, Alicante, Malaga, Tangiers and Casablanca on 1 September 1919.

In 1937, Malaga Airport became an air station and the schools for Air Force Crew Members, Observers and Specialists were set up there.

On 12 July 1946, the airport was opened to domestic and international traffic and classified as a customs post. All passenger services were conducted in the air station offices, since the civil passenger station was not opened until 1948.

Airport growth

Throughout 1960 the design of the airport was changed radically as, apart from extending the runway and building a parallel taxiway, a new terminal area was laid out at the geometric centre of the airfield. This area was located 1.5 km to the north of the existing terminal, where a new aircraft parking area, the control tower, a power plant and a passenger terminal were to be built. This work also included the installation of different navigational aids: a VASIS and a VOR in 1965, an ILS system in 1966 and a radar system in 1970.

The airport, which has at different times been known as “El Rompedizo” or “García Morato”, became officially known as Malaga Airport by a Ministerial Order issued in September 1965. This name is still used today.

The new passenger terminal was opened on 29 January 1968, and both the domestic services, which were handled at the civil station, and the international services, handled at the provisional station, were immediately transferred there.

The growing increase in traffic, mainly of non-scheduled flights (about thirty companies operated in Malaga with this type of traffic in 1965) meant a specific terminal had to built, known as a Modular Station for non-scheduled traffic. The new building was identical to those built in Palma, Girona, Alicante and Ibiza; it was opened on 30 June 1972.

Ruiz Picasso Terminal

The persistent growth in traffic meant that construction of a new terminal had to be considered. It was finally opened on 30 November 1991 with the name of Pablo Ruiz Picasso. The terminal, designed by the architect Ricardo Bofill, has two separate floors differentiating the flows of arrival and departure passengers. The building is joined to the old international terminal and is combined operationally with it.

To complete the terminal, a vehicle car park building was constructed, which came into service in the summer of 1995. It is connected to the basement of the passenger terminal by means of a tunnel and was remodelled to house car hire services.

In 1995, restructuring and restoration began on the old 1940s passenger building, which became the general aviation terminal. In the northern area of the airport, a hangar was built for large aircraft maintenance, and next to it, a cargo terminal. Both went into service in 1996.

In 1997, a new extension to the aircraft parking area was carried out and, at the same time, it was fitted with a fuel supply system by means of pumps to all the positions connected to the airbridges.

In November 2002, the airport took a further step in its development with the opening of a modern control tower with the latest technology, incorporating, for the first time in a tower, the VICTOR system. This system allows the visual presentation of all necessary data on a single console table, thereby facilitating the work and the operational agility of the controller.

The Malaga Plan has been established to meet the rapid increase in the number of passengers, owing primarily to the rapid growth of tourism on the Costa del Sol. It includes, among other things, the construction of a new terminal and a new car park, as well as the extension of the airfield.

Málaga Airport photo

Málaga Airport - AENA airport

Address:

Apdo. Correos 371 y 375 29004 Málaga

Telephone: 952 048 838

Airport Code: AGP

URL: http://www.aena.es/malaga

AENA accepts no responsibility for the information posted at this site neither for the possible damages caused for the use of this information.


Images and information placed above are from
http://www.aena.es/malaga
We thank them for the data!

Information from www.malagaweb.com

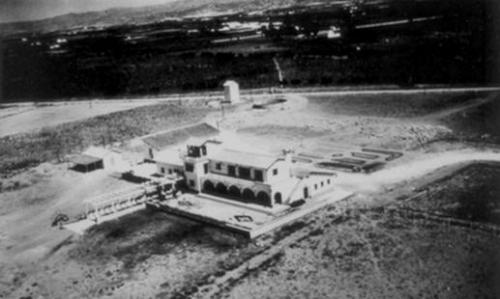

Aerial picture from Malaga airport at 1948

Aerial picture from Malaga airport at 1948

An old picture of the surroundings of Malaga airport in 1948

An old picture of the surroundings of Malaga airport in 1948

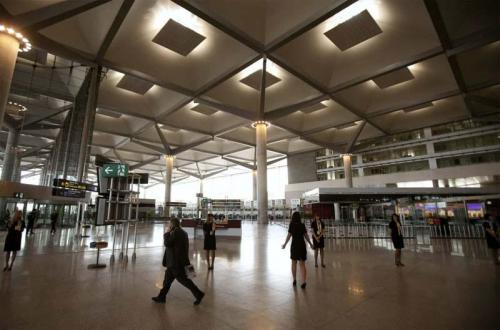

People walking in terminal T3 at Malaga airport.

People walking in terminal T3 at Malaga airport

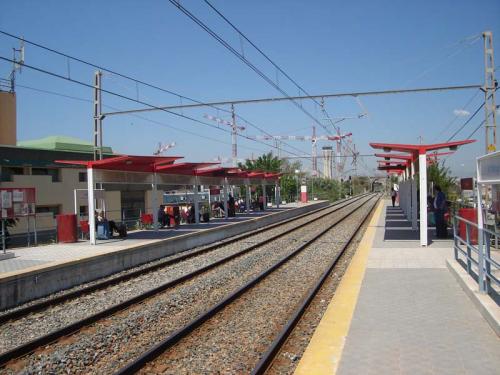

Picture of the train station next to Malaga airport

Picture of the train station next to Malaga airport

Malaga airport contact

Malaga airport address
Malaga airport
Avda. García Morato
29004 Málaga
España

Malaga airport telephone number
Telephone: 902 404 704
Email: infoagp@e-externas.aena.es

Malaga Airport codes :
IATA: AGP
ICAO: LEMG

Official website

Malaga airport - Contact official website from AENA-Aeropuertos.es in english

Malaga airport pictures

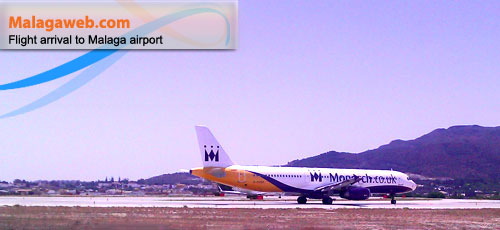

Photo of a plane landing at Malaga airport

Photo of a plane landing at Malaga airport

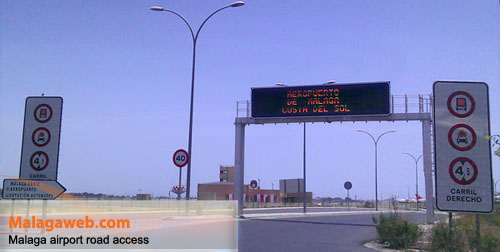

New road access to Malaga airport from the north

New road access to Malaga airport from the north

Picture of the new access to Malaga airport by car in 2012

Picture of the new access to Malaga airport by car in 2012


Images and information placed above are from
http://www.malagaweb.com/malaga-airport.php
We thank them for the data!


General Info
Country Spain
ICAO ID LEMG
Time UTC+1(+2DT)
Latitude 36.674900
36° 40' 29.64" N
Longitude -4.499106
004° 29' 56.78" W
Elevation 52 feet
16 meters
Type Joint (Civil and Military)
Magnetic Variation 002° W (01/06)
Operating Agency MILITARY - CIVIL JOINT USE AIRPORT
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
TWR 118.15
257.8
GND 121.7
CLR DEL 121.85
ATIS 120.375
APP 123.85
123.95
118.45
358.675


Runways
ID Dimensions Surface PCN ILS
14/32 10500 x 148 feet
3200 x 45 meters
ASPHALT 060FBXU YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
VOR-DME MLG MALAGA 082Y 113.55 At Field -
NDB RMA MALAGA - 330 1.4 NM 314.1


Supplies/Equipment
Fuel Jet A1, without icing nhibitor.
Oil O-128, 1100,(Dispersant)Reciprocating Engine Oil(MIL L 22851 Type II)


Remarks
FUEL A1 (AVCARD, fone C34-91-337-6144)(NC-100LL, J8)
LGT PAPI Rwy 14 GS 3.2 .
OIL 0-128
OPR HOURS Opr Mil SR-SS.
RSTD NORDO proh. Acft rqr to have VHF freq avbl.

Runway 14/32

10500 x 148 feet
3200 x 45 meters

Runway 14
Surface ASPHALT
True Heading 132.0
Latitude 36.684533
36° 41' 04.32" N
Longitude -4.512594
004° 30' 45.34" W
Elevation 52.0 feet
16 meters
Slope -0.2°
Landing Distance 10500 feet
3200 meters
Takeoff Distance 10500 feet
3200 meters
Lighting System CL
HIRL
J
PAPI

Runway 32
Surface ASPHALT
True Heading 312.0
Latitude 36.665408
36° 39' 55.47" N
Longitude -4.485822
004° 29' 08.96" W
Elevation 31.0 feet
9 meters
Slope 0.2°
Landing Distance 10500 feet
3200 meters
Takeoff Distance 10500 feet
3200 meters
Lighting System CL
HIRL
J
PAPI

Navaids

MALAGA
Type ID Channel Freq Country State
VOR-DME MLG 082Y 113.55 Spain -
Latitude Longitude Airport
36.678739
36° 40' 43.46" N
-4.506669
004° 30' 24.01" W
LEMG

Navaids

MALAGA
Type ID Channel Freq Country State
NDB RMA - 330 Spain -
Latitude Longitude Airport
36.658919
36° 39' 32.11" N
-4.476744
004° 28' 36.28" W
LEMG

Málaga Airport - AENA airport




The content above was published at Airports-Worldwide.com in 2006.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
