Bettles Airport



Bettles Airport
IATA: BTT – ICAO: PABT – FAA LID: BTT
Summary
Airport type Public
Owner State of Alaska DOT&PF
Serves Bettles, Alaska
Elevation AMSL 647 ft / 197 m
Coordinates 66°54′50″N 151°31′45″W / 66.91389°N 151.52917°W / 66.91389; -151.52917
Runways
Direction Length Surface
ft m
1/19 5,190 1,582 Gravel
9W/27W 1,500 457 Water
18W/36W 2,000 610 Water
Statistics (2005)
Aircraft operations 4,150
Based aircraft 11
Source: Federal Aviation Administration

Bettles Airport (IATA: BTT, ICAO: PABT, FAA LID: BTT) is a state-owned public-use airport located in Bettles, a city in the Yukon-Koyukuk Census Area of the U.S. state of Alaska.

Facilities and aircraft

Bettles Airport covers 1,195 acres 1,195 acres (484 ha) which contains one runway designated 1/19 with a 5,190 x 150 ft (1,582 x 46 m) gravel surface. It also has two seaplane landing areas: 9W/27W which measures 1,500 x 1,200 ft (457 x 366 m) and 18W/36W which measures 2,000 x 1,200 ft (610 x 366 m).

For the 12-month period ending December 31, 2005, the airport had 4,150 aircraft operations, an average of 11 per day: 72% general aviation, 24% air taxi and 4% military. There are 11 aircraft based at this airport: 91% single-engine and 9% multi-engine.

Airlines and destinations

  • Arctic Circle Air (Fairbanks)
  • Everts Air
  • Warbelow's Air Ventures
  • Wright Air Service (Allakaket, Anaktuvuk Pass, Fairbanks)

Accidents and incidents

On 30 October 1970, Douglas C-47B N99663 of Frontier Flying Service was written off in a landing accident. The aircraft struck three parked aircraft. It was on a cargo flight from Fairbanks International Airport, Alaska, to Ambler Airport, Alaska via Bettles. All four aircraft were substantially damaged.



The above content comes from Wikipedia and is published under free licenses – click here to read more.

Bettles Airport

Bettles is a city located in Yukon-Koyukuk Census Area, Alaska, U.S., at the 2000 census the population was 43.

Bettles is located at 66°54'48"N, 151°31'21"W (66.913419, -151.522374)GR1.

According to the United States Census Bureau, the city has a total area of 4.2 km² (1.6 mi²), all land.

Location & QuickFacts

FAA Information Effective:

2005-10-27

Airport Identifier:

BTT

Longitude/Latitude:

151-31-41.0000W/66-54-55.0320N
-151.528056/66.915287 (Estimated)

Elevation:

643 ft / 195.99 m (Surveyed)

Land:

1195 acres

From nearest city:

0 nautical miles N of Bettles, AK

Location:

Yukon-koyukuk County, AK

Magnetic Variation:

27E (1985)

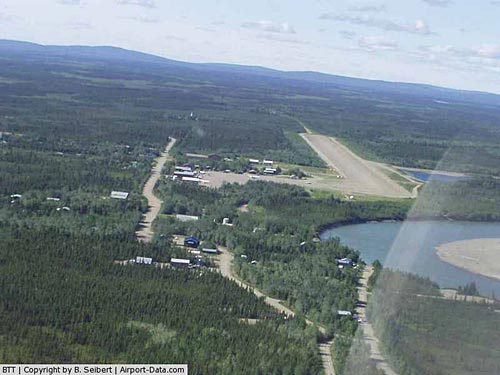

Bettles Airport
(Click on the photo to enlarge)

Owner & Manager

Ownership:

Publicly owned

Owner:

State Of Alaska Dotpf

Address:

2301 Peger Rd
Fairbanks, AK 99709

Phone number:

907-451-5250

Manager:

Bill O'halloran

Address:

2301 Peger Rd
Fairbanks, AK 99709

Phone number:

907-451-5250

Airport Operations and Facilities

Airport Use:

Open to public

Wind indicator:

Yes

Segmented Circle:

Yes

Control Tower:

No

Attendance Schedule:

ALL/ALL/ALL

Lighting Schedule:

DUSK-DAWN
ACTVT VASI RYS 01 & 19; MALSR RY 01 & MIRL RY 01/19 - CTAF.

Beacon Color:

Clear-Green (lighted land airport)

Sectional chart:

Fairbanks

Region:

AAL - Alaska

Boundary ARTCC:

ZAN - Anchorage

Tie-in FSS:

FAI - Fairbanks

FSS on Airport:

No

FSS Phone:

907-474-0788

FSS Toll Free:

1-866-248-6516

NOTAMs Facility:

BTT (NOTAM-d service avaliable)

Federal Agreements:

N

Airport Communications

CTAF:

122.900

Airport Services

Fuel available:

100LLA1+ B
FUEL AVBL 24 HRS; CTC FREQS 122.77 & 130.1. UNLEADED FUEL AVBL.

Runway Information

Runway 01/19

Dimension:

5200 x 150 ft / 1585.0 x 45.7 m

Surface:

GRVL, Good Condition

Edge Lights:

Medium



Runway 01

Runway 19

Longitude:

151-32-19.5390W

151-31-09.9480W

Latitude:

66-54-28.5210N

66-55-11.7700N

Elevation:

631.00 ft

643.00 ft

Alignment:

32

127

ILS Type:

LOC/DME



Traffic Pattern:

Left

Left

Crossing Height:

36.00 ft

52.00 ft

VASI:

4-box on left side

4-box on left side

Visual Glide Angle:

3.00°

3.00°

Approach lights:

MALSR



Obstruction:

15 ft road, 150.0 ft from runway, 10:1 slope to clear

15 ft road, 15.0 ft from runway, 1:1 slope to clear



Runway 09W/27W

Dimension:

1500 x 1200 ft / 457.2 x 365.8 m

Surface:

WATER,



Runway 09W

Runway 27W

Traffic Pattern:

Left

Left



Runway 18W/36W

Dimension:

2000 x 1200 ft / 609.6 x 365.8 m

Surface:

WATER,



Runway 18W

Runway 36W

Traffic Pattern:

Left

Left



Radio Navigation Aids

ID

Type

Name

Ch

Freq

Var

Dist

EAV

NDB

Evansville



391.00

27E

1.6 nm

PPC

NDB

Prospect



340.00

27E

21.9 nm

BTT

VOR/DME

Bettles

107X

116.00

27E

0.6 nm

Remarks

  • RIVER SOMETIMES VERY LOW; RCMD VISUAL CHECK PRIOR TO LNDG.
  • SNOW REMOVAL OPERATIONS DURING WINTER--MONITOR CTAF.
  • RY 01 19 FT TREE 310 FT FM THR 70 FT R OF CNTRLN.
  • WX OBSERVER AVBL FOR LOCAL ARPT WX ON CTAF (CALL SIGN: BETTLES WEATHER) & PHONE 907-692-5533.
  • FLOATPLANE OPNS .5 NM OFF END OF RY 19 IN KOYUKUK RIVER.
  • RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.

Based Aircraft

Aircraft based on field:

11

Single Engine Airplanes:

10

Multi Engine Airplanes:

1

Operational Statistics

Aircraft Operations:

80/Week

Air Taxi:

24.1%

General Aviation Local:

24.1%

General Aviation Itinerant:

48.2%

Military:

3.6%


Bettles Airport

Address: Yukon-koyukuk County, AK

Tel: 907-451-5250


Images and information placed above are from
http://www.airport-data.com/airport/BTT/
http://en.wikipedia.org/wiki/Bettles%2C_Alaska

We thank them for the data!




General Info
Country United States
State ALASKA
FAA ID BTT
Latitude 66-54-55.032N
Longitude 151-31-41.000W
Elevation 643 feet
Near City BETTLES
