Ted Stevens Anchorage International Airport



Anchorage International Airport
IATA: ANC – ICAO: PANC – FAA LID: ANC

+
ANC

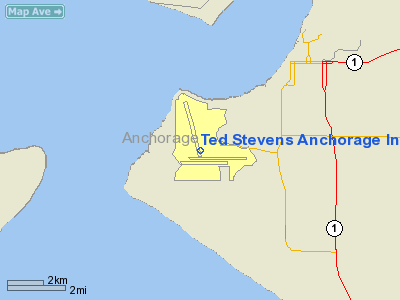

Location of ANC
Summary
Airport type Public
Owner State of Alaska DOT&PF
Serves Anchorage, Alaska
Hub for
  • Alaska Airlines
  • Era Alaska
  • FedEx Express
  • PenAir
  • Polar Air Cargo
Elevation AMSL 152 ft / 46 m
Coordinates 61°10′28″N 149°59′47″W / 61.17444°N 149.99639°W / 61.17444; -149.99639 ((P)ANC Anchorage International)Coordinates: 61°10′28″N 149°59′47″W / 61.17444°N 149.99639°W / 61.17444; -149.99639 ((P)ANC Anchorage International)
Website www.dot.state.ak.us/anc/
Runways
Direction Length Surface
ft m
7L/25R 10,600 3,231 Asphalt
7R/25L 10,900 3,322 Asphalt
14/32 11,584 3,531 Asphalt
Statistics (2006/2007)
Aircraft operations 289,472
Based aircraft 169
Passengers 5,235,000 (2007)
Source: Federal Aviation Administration

Anchorage International Airport (IATA: ANC, ICAO: PANC, FAA LID: ANC) is a major airport in the U.S. state of Alaska located 4 nautical miles (7 km) southwest of downtown Anchorage.

Constructed in 1951 as Anchorage International Airport, it was renamed by the Alaska Legislature in 2000 to honor former long-standing U.S. Senator Ted Stevens; however the naming was unusual since Ted Stevens was still living and was active in the Senate at the time of the renaming. It is Alaska Airlines' second-largest hub, after Seattle. It is also a major cargo hub and, as of 2008, ranks as the world's fifth-busiest airport by cargo traffic, after Memphis, Hong Kong, Shanghai and Seoul. Most major U.S. passenger carriers serve ANC, with the majority of passenger flight operations by Alaska Airlines to and from Seattle (an average of 20 flights per day) and Fairbanks (an average of 13 flights per day).

Anchorage was a common stopover for passengers flying to East Asia from the 1960s to the 1980s because Chinese and Soviet airspace was off-limits and because the first generation of jets and widebody airliners did not have the range to fly nonstop across the Pacific Ocean. Some passenger aircraft still stop at Anchorage on flights between Asia and the eastern United States. Cargo carriers, which benefit from short route segments, continue to use Anchorage frequently.

Ted Stevens Anchorage International Airport's passenger traffic has hovered around the five million mark for the last 10 years, apart from in 2002 when the airport suffered a 13% drop in traffic. Fairbanks and Juneau are the next busiest airports though neither managed more than half a million passengers last year. Anchorage traffic peaks in June, July and August when passenger numbers are twice as high as between October and April.

FedEx Express and United Parcel Service operate major hubs at Anchorage International for cargo heading to and from the Far East. NWA Cargo used to operate a major hub at the airport until December 28,2009 when it closed all operations for Northwest Cargo at all Airports. FedEx Express is the airport's largest cargo facility and can handle as many as 13,400 packages per hour, employing more than 1,200 people and providing a full customs clearance system. United Parcel Service's hub handles about 5,000 parcels per hour. Both companies forecast a large growth in traffic over the next several years as trade with China and other Far East countries increases and plan to expand their Anchorage facilities comparatively. The United States Postal Service also operates a large sectional center facility (SCF) for the 995xx ZIP codes. It processes mail and parcels headed to and from all Alaska cities.

Anchorage is also envisioned as a future connecting point for air traffic to the Russian Far East. During the summer season 2008, there was one weekly flight to Russia by Vladivostok Air. Also, there are plans to add flights to Sakhalin in the near future to meet the demands of U.S. oil companies. Many of Alaska's North Slope workers live either in Anchorage or elsewhere in the Lower 48 states and fly through the airport to their jobs in Prudhoe Bay.

The eastern end of the airport's southernmost runway connects to Kulis Air National Guard Base, which is actually located on land leased by the airport.

Facilities and aircraft

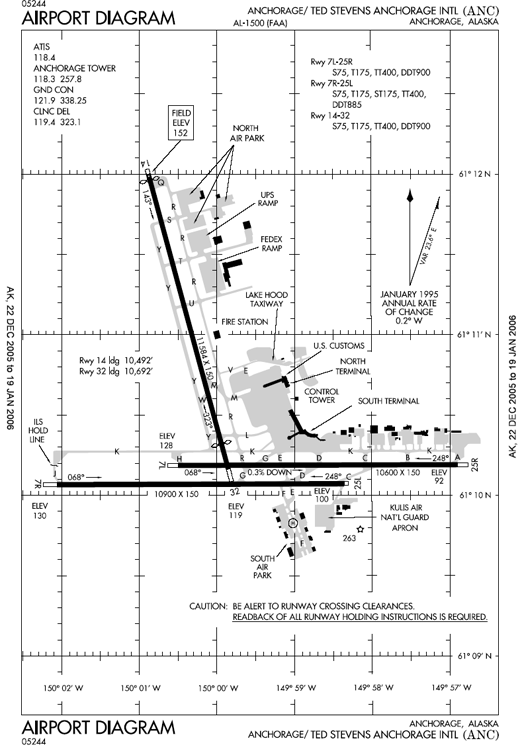

Runway layout at ANC
Runway layout at ANC

Ted Stevens Anchorage International Airport covers 4,500 acres (1,821 ha) and has three asphalt paved runways: 7L/25R measuring 10,600 x 150 ft (3,231 x 46 m), 7R/25L at 10,900 x 150 ft (3,322 x 46 m) and 14/32 at 11,584 x 150 ft (3,531 x 46 m).

For 12-month period ending December 14, 2006, the airport had 289,472 aircraft operations, an average of 793 per day: 37% scheduled commercial, 35% general aviation, 27% air taxi and 1% military. There are 169 aircraft based at this airport: 59% multi-engine, 27% helicopters, 11% military and 3% jet aircraft.

Terminals

South Terminal (Domestic)

The South Terminal serves Air Canada, Alaska Airlines, American Airlines, Continental Airlines, Delta Air Lines, Frontier Airlines, Sun Country, United Airlines and US Airways. All regional intrastate carriers also use the South Terminal.

North Terminal (International)

The North Terminal serves China Airlines, Condor, and international seasonal charter flights. In addition to these airlines, a few cargo airlines use the north side of the terminal for parking.

Airlines and destinations

Airlines Destinations Concourse
Air Canada Vancouver [seasonal] B
Alaska Airlines Adak Island, Barrow, Bethel, Chicago-O'Hare, Cordova, Fairbanks, Honolulu, Juneau, Ketchikan, Kodiak, Kotzebue, Nome, Portland (OR), Deadhorse/Prudhoe Bay, Red Dog Mine [charter], Seattle/Tacoma
Seasonal: Denver, Dillingham, Kahului, King Salmon, Los Angeles, San Francisco
C


American Airlines Chicago-O’Hare, Dallas/Fort Worth [all seasonal] B
China Airlines Taipei-Taoyuan N International
Condor Frankfurt [seasonal] N International
Continental Airlines Newark, Seattle/Tacoma
Seasonal: Houston-Intercontinental, Portland (OR)
B
Delta Air Lines Minneapolis/St. Paul, Salt Lake City
Seasonal: Atlanta, Detroit
B
Era Aviation
dba Era Alaska
Bethel, Cordova, Emmonak, Fairbanks, Homer, Kenai, Kodiak, Valdez A
Frontier Airlines Denver [seasonal] B
Frontier Flying Service
dba Era Alaska
Aniak, Bethel, Fairbanks, Galena, St. Mary’s A
Grant Aviation Emmonak, Kenai, Kodiak, Homer, Valdez L
Hageland Aviation Services
dba Era Alaska
Aniak, Unalakleet A
Korean Air Seoul-Incheon [seasonal charter] N International
Omni Air International Las Vegas [seasonal charter] N International
PenAir Aniak, Cold Bay, Dillingham, King Salmon, McGrath, Sand Point, St. George, St. Paul, Unalakleet, Unalaska/Dutch Harbor L
Shared Aviation Services Deadhorse/Prudhoe Bay, Kuparuk B
Sun Country Airlines Minneapolis/St. Paul [seasonal] B
Trans Northern Aviation Alaska Bush Charters [seasonal] L
United Airlines Chicago-O’Hare, Denver, San Francisco [all seasonal] B
US Airways Phoenix
Seasonal: Philadelphia
B
Vladivostok Air Petropavlovsk-Kamchatsky N International

:A:^ China Airlines' flights to/from New York–JFK are only for non-domestic, connecting traffic.

Scheduled cargo airlines and destinations

  • ABX Air
  • Aeroflot-Cargo
  • Air Canada Cargo operated by World Airways
  • Air China Cargo
  • Air Atlanta Icelandic
  • Alaska Air Cargo
  • Alaska Central Express
  • ANA & JP Express
  • Asiana Cargo
  • Atlas Air
  • Cargolux
  • China Airlines Cargo
  • Cathay Pacific Cargo
  • Emirates SkyCargo
  • Empire Airlines
  • Era Aviation
  • EVA Air Cargo
  • Evergreen International Airlines
  • Everts Air Cargo
  • FedEx Express
  • Great Wall Airlines
  • JAL Cargo [ends 29 October] [2]
  • Kalitta Air
  • Korean Air Cargo
  • Lynden Air Cargo
  • Nippon Cargo Airlines
  • Northern Air Cargo
  • Polar Air Cargo
  • Singapore Airlines Cargo
  • Southern Air
  • Trans Northern
  • Transmile Air Services
  • Tradewinds Airlines
  • UPS Airlines
  • World Airways

Ground transport

Inter-terminal

A shuttle bus runs approximately every 15 minutes between the North and South terminals and the employee and long-term parking lots. A land-side inter-terminal walkway was completed in 2009. Air-side connections between the sterile areas of each terminal are not available.

To/from airport

Route 7A of the Anchorage People Mover bus system serves the airport's North and South terminals once every hour in each direction, connecting it with the downtown Transit Center and the Dimond Center mall.

Taxi queues are available in front of each terminal. Courtesy vans and other ground transportation options pick up from designated areas in front of each terminal.

Major national rental car chains are represented in an on-site consolidated rental facility attached to the South terminal.

Renovations

Renovations began on the A and B concourses in fall 2006. These renovations are designed to bring the older portions into compliance with current seismic, heating, ventilation, electrical and safety codes, and also include new baggage handling systems and renovations to the interior of the concourses. Since the completion of the construction, all domestic flights are operated out of the South Terminal.

Commissioned Art Pieces

  • Euphony, 2004: Glass Artist - Warren Carther

The piece consists of nine towers of glass, collectively adding up to 42 meters (130 feet) of in span and reaching to 8 meters (26feet) at its highest point. The series of panels are inspired by Alaska's immensely rugged landscape of glaciers and mountains. The ambiguous images embedded within the sculpture address Alaska’s continual balancing of the forces of technology with the vast powers of the natural world.

Programs

The airport features an innovative customer service program, which partners with most on-site (and some nearby) vendors and concessionaires and aims to promote a positive image of the airport and the State of Alaska in the minds of travelers. This volunteer, self-funded committee mystery shops at partnering companies and provides awards of cash, free covered parking, and donated prizes to winning employees.

Accidents and incidents

  • On 6 November 1974, Douglas C-47 N76 of the Federal Aviation Administration along with Lockheed L-188 Electra N7140C and NAMC YS-11A N172RV of Reeve Aleutian Airways were destroyed in a hangar fire.


The above content comes from Wikipedia and is published under free licenses – click here to read more.

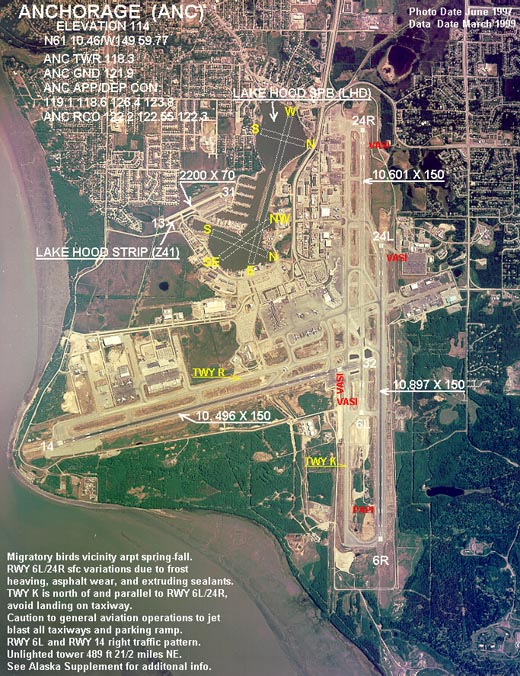

Ted Stevens Anchorage International Airport  picture

Location & QuickFacts

FAA Information Effective:

2006-02-16

Airport Identifier:

ANC

Longitude/Latitude:

149-59-46.9000W/61-10-27.7000N
-149.996361/61.174361 (Estimated)

Elevation:

152 ft / 46.33 m (Surveyed)

Land:

4500 acres

From nearest city:

4 nautical miles SW of Anchorage, AK

Location:

Anchorage County, AK

Magnetic Variation:

21E (2005)

Owner & Manager

Ownership:

Publicly owned

Owner:

State Of Alaska Dotpf

Address:

Box 196960
Anchorage, AK 99519-6960

Phone number:

907-266-2525

Manager:

Morton Plumb Jr

Address:

Box 196960
Anchorage, AK 99519-6960

Phone number:

907-266-2525

Airport Operations and Facilities

Airport Use:

Open to public

Wind indicator:

Yes

Segmented Circle:

No

Control Tower:

Yes

Attendance Schedule:

ALL/ALL/ALL

Lighting Schedule:

DUSK-DAWN

Beacon Color:

Clear-Green (lighted land airport)

Landing fee charge:

Yes

Sectional chart:

Anchorage

Region:

AAL - Alaska

Boundary ARTCC:

ZAN - Anchorage

Tie-in FSS:

ENA - Kenai

FSS on Airport:

No

FSS Phone:

800-478-3576

FSS Toll Free:

1-800-WX-BRIEF

NOTAMs Facility:

ANC (NOTAM-d service avaliable)

Certification type/date:

I ES 3/1973

Federal Agreements:

NGSY

Airport Communications

Unicom:

122.950

Airport Services

Fuel available:

100 100LLA A1

Airframe Repair:

MAJOR

Power Plant Repair:

MAJOR

Bottled Oxygen:

HIGH/LOW

Bulk Oxygen:

HIGH/LOW

Runway Information

Runway 07L/25R

Dimension:

10600 x 150 ft / 3230.9 x 45.7 m

Surface:

ASPH, Good Condition

Weight Limit:

Single wheel: 75000 lbs.
Dual wheel: 175000 lbs.
Dual tandem wheel: 400000 lbs.
Dual dual tandem wheel: 900000 lbs.

Edge Lights:

High



Runway 07L

Runway 25R

Longitude:

150-00-29.9992W

149-56-53.8803W

Latitude:

61-10-11.1512N

61-10-11.3171N

Elevation:

128.00 ft

92.00 ft

Alignment:

90

127

ILS Type:

ILS/DME



Traffic Pattern:

Right

Left

Markings:

Precision instrument, Good Condition

Precision instrument, Good Condition

Crossing Height:

54.00 ft

0.00 ft

VASI:

4-light PAPI on right side

6-box on left side
UPWND TCH 64.19' GA 3.25 DEG; DWNWND TCH 39.31' GA 3.00 DEG.

Visual Glide Angle:

3.00°

0.00°

RVR Equipment:

touchdown



Approach lights:

MALSR



Centerline Lights:

Yes

Yes

Touchdown Lights:

Yes





Runway 07R/25L

Dimension:

10900 x 150 ft / 3322.3 x 45.7 m

Surface:

ASPH, Good Condition

Surface Treatment:

Saw-cut or plastic Grooved

Weight Limit:

Single wheel: 75000 lbs.
Dual wheel: 175000 lbs.
Dual tandem wheel: 400000 lbs.
Dual dual tandem wheel: 885000 lbs.

Edge Lights:

High



Runway 07R

Runway 25L

Longitude:

150-02-03.7527W

149-58-21.5270W

Latitude:

61-10-04.1527N

61-10-04.3694N

Elevation:

130.00 ft

100.00 ft

Alignment:

90

127

ILS Type:

ILS/DME



Traffic Pattern:

Right

Left

Markings:

Precision instrument, Good Condition

Precision instrument, Good Condition

Crossing Height:

68.00 ft

0.00 ft

VASI:

4-light PAPI on left side

6-box on left side
UPWND TCH 101' GLIDE ANGLE 3.25 DEG; DWNWND TCH 58' GLIDE ANGLE 3.00 DEG.

Visual Glide Angle:

3.00°

0.00°

RVR Equipment:

touchdown, midfield, rollout

touchdown, midfield, rollout

Approach lights:

ALSF2



Runway End Identifier:



No

Centerline Lights:

Yes

Yes

Touchdown Lights:

Yes

No



Runway 14/32

Dimension:

11584 x 150 ft / 3530.8 x 45.7 m

Surface:

ASPH, Good Condition

Surface Treatment:

Saw-cut or plastic Grooved

Weight Limit:

Single wheel: 75000 lbs.
Dual wheel: 175000 lbs.
Dual tandem wheel: 400000 lbs.
Dual dual tandem wheel: 900000 lbs.

Edge Lights:

High



Runway 14

Runway 32

Longitude:

150-00-52.8436W

149-59-51.2117W

Latitude:

61-11-59.9742N

61-10-09.8508N

Elevation:

152.00 ft

119.00 ft

Alignment:

127

127

ILS Type:

ILS/DME



Traffic Pattern:

Right

Left

Markings:

Precision instrument, Good Condition

Precision instrument, Good Condition

Crossing Height:

75.00 ft

65.00 ft

Displaced threshold:

200.00 ft

893.00 ft

VASI:

4-light PAPI on left side

4-light PAPI on left side

Visual Glide Angle:

3.20°

3.00°

RVR Equipment:

touchdown, midfield, rollout

touchdown, midfield, rollout

Approach lights:

ODALS



Runway End Identifier:



Yes

Centerline Lights:

Yes

Yes

Touchdown Lights:

No

No

Decleard distances:

Take off run available 10492.00 ft
Take off distance available 10492.00 ft
Actual stop distance available 10492.00 ft
Landing distance available 10492.00 ft

Take off run available 11584.00 ft
Take off distance available 12584.00 ft
Actual stop distance available 11584.00 ft
Landing distance available 10692.00 ft



Radio Navigation Aids

ID

Type

Name

Ch

Freq

Var

Dist

CMQ

NDB

Campbell Lake



338.00

21E

1.5 nm

BOB

NDB

Bruck



387.00

21E

5.3 nm

GRP

NDB

Granite Point



356.00

24E

40.9 nm

IWW

NDB

Wildwood



379.00

20E

49.6 nm

OLT

NDB/DME

Soldotna

106X

346.00

24E

49.4 nm

EDF

TACAN

Elmendorf

081X



21E

8.2 nm

ANC

VOR/DME

Anchorage

090X

114.30

25E

6.3 nm

ENA

VOR/DME

Kenai

123X

117.60

25E

48.6 nm

BGQ

VORTAC

Big Lake

072X

112.50

25E

23.8 nm

ANC

VOT

Anchorage



108.40



0.4 nm

MRI

VOT

Merrill



111.00



5.0 nm

Remarks

  • MIGRATORY BIRDS INVOF ARPT SPRING THROUGH FALL.
  • NOISE SENSITIVE AREA IN EFFECT; CTC AMGR AT 907-266-2525 OR APRT OPNS 907-266-2600 FOR FURTHER INFO.
  • TO COORDINATE NON-TRANSPONDER OR NON-RADIO OPNS CTC ANC ATCT AT 907-271-2700 DURG ADMIN HRS (0730-1600 WKDAYS). DURG NON-ADMIN HRS & HOLIDAYS CTC FAA AT 907-271-5936.
  • KULIS ANG BASE PPR; CONTACT DSN (317) 626-1131 OR C (907) 249-1131. OPERTIONS MON-FRI 0730-1600. LIMITED ACFT PARKING; MARGINAL WINGTIP CLNC WHILE TAXIING ON PARKING RAMP. NO TRANS ALERT. NO SVC OR MAINT; EXCEPT C130H & HH60G; OR HANGAR SPACE.
  • COMMAND POST (CAMPER) MANNED 24 HRS; DSN (317) 626-1131 OR C (907) 249-1131. CONTACT CAMPER 30 MIN OUT.
  • TWY V RESTRICTED TO ACFT WEIGHING 12500 LBS OR LESS.
  • UNLGTD 489 FT TWR 2 1/2 MILES NORTHEAST.
  • V TWY SUBJ TO JET BLAST.
  • ONE HR PPR FOR NON-TRANSPONDER ACFT OPNS. PPR FOR NON-RADIO ACFT OPNS. NO NIGHTTIME NON-RADIO ACFT OPNS PERMITTED. PILOTS MUST PROVIDE AN ETA & REMAIN WITHIN PLUS OR MINUS 15 MINUTES OF ETA.
  • PORTIONS OF TWY K BTN TWY H & TWY J NOT VIS FROM ATCT.
  • NO COMPASS CALIBRATION PAD.
  • RY 32 EXTDD DEPARTURES FM RY 06L INTERSECTION AVBL ON REQUEST AT PUSHBACK/ENGINE START - 11584 FT AVBL.
  • RY 06R/24L HAS UNEVEN SURFACES OUTSIDE EDGE LIGHTS FULL LENGTH.
  • RAMPS R7 - R11 HAS NO ADJACENT PARKING FOR TWO B747-400.
  • GA OPNS BE ALERT - JET BLAST ALL TWYS & PARKING RAMP.
  • TOUCHDOWN MID POINT AND ROLLOUT RVR RWY 6R. TOUCHDOWN AND ROLLOUT RVR RWY 24L.
  • RIGHT TURN OUT OF RAMP PARKING AREA R-2 THROUGH R-4 PROHIBITED.
  • (A43-14-1) VASI UNITS ALIGNED 5 DEGREES WEST OF RWY CNTRLN.
  • TWY INTERLINK PARALLEL RY 14/32 BTN NORTH RAMP & LHD TWY RESTRICTED TO ACFT WEIGHING 12500 LBS OR LESS. BE ALERT LHD TWY SUBJECT TO JET BLASTS.
  • USE FREQ 122.55 (RCO) FOR FILING, ACTIVATING & CANCELING FLIGHT PLANS IN THE ANCHORAGE BOWL AREA.
  • FAA RAMP PPR - CTC ANC FIFO FREQ 135.85 907-271-2020 OR AVN FICO 405-954-9780 MON-FRI 0630-1500.
  • ANCHORAGE WX CAMERA AVBL ON INTERNET AT HTTP://AKWEATHERCAMS.FAA.GOV
  • ANCHORAGE AIRPORT TRAFFIC CONTROL TOWER HAS BEEN GRANTED A WAIVER TO THE GUIDELINES THAT PROHIBIT THE CONTROL TOWER FROM TAXIING AN AIRCRAFT INTO "POSITION AND HOLD" AT AN INTERSECTION, BETWEEN SUNSET AND SUNRISE.
  • THIS WAIVER ALLOWS THE TOWER TO TAXI THE AIRCRAFT INTO "POSITION AND HOLD" DURING PERIODS OF DARKNESS AT THE INTERSECTION LISTED BELOW: RUNWAY 32 AT TAXIWAY KILO
  • AIRCRAFT SHALL NOT TAXI INTO "POSITION AND HOLD" UNDER THE PROVISIONS OF THIS WAIVER WHEN THE SUBJECT INTERSECTION IS NOT VISIBLE FROM THE TOWER. WHEN THE PROVISIONS OF THIS WAIVER ARE BEING EXERCISED, THE AFFECTED RUNWAY SHALL BE USED FOR DEPARTURES ONLY.
  • INTERSECTION DEPARTURES WILL CONTINUE TO BE UTILIZED AT OTHER LOCATIONS BETWEEN SUNSET AND SUNRISE. HOWEVER, AIRCRAFT CANNOT BE TAXIED INTO "POSITION AND HOLD" PRIOR TO TAKEOFF CLEARANCE.
  • FOR WSO PHONE 907-266-5105.



Based Aircraft

Aircraft based on field:

169

Multi Engine Airplanes:

100

Jet Engine Airplanes:

5

Helicopters:

45

Military:

19

Major Carriers Serving This Airport

Alaska Airlines

78.1%

Northwest Airlines

5.2%

Delta Air Lines

5.2%

Continental Airlines

4.3%

United Airlines

4.0%

America West Airlines

2.7%



0.5%

Most Popular Destinations

Seattle-tacoma Intl (SEA)

32.5%

Fairbanks Intl (FAI)

19.4%

Bethel (BET)

6.2%

Juneau Intl (JNU)

6.0%

Salt Lake City Intl (SLC)

5.2%

Minneapolis-st Paul Intl/wold-chamberlain/ (MSP)

4.4%

Ralph Wien Memorial (OTZ)

4.0%

Denver Intl (DEN)

2.5%

Kodiak (ADQ)

2.3%

Nome (OME)

2.1%

Most Popular Aircraft

N747AS

4.2%

N745AS

4.1%

N741AS

3.7%

N746AS

3.6%

000000

2.6%

N742AS

2.5%

N730AS

1.9%

N740AS

1.7%

N771AS

1.1%

N318AS

1.1%

Operational Statistics

Aircraft Operations:

1088/Day

Air Carrier:

27.1%

Air Taxi:

19.7%

General Aviation Local:

3.9%

General Aviation Itinerant:

21.3%

Military:

0.9%



Ted Stevens Anchorage International Airport

Address: Anchorage County, AK

Tel: 907-266-2525


Images and information placed above are from
http://www.airport-data.com/airport/ANC/

We thank them for the data!




General Info
Country United States
State ALASKA
FAA ID ANC
Latitude 61-10-27.700N
Longitude 149-59-46.900W
Elevation 152 feet
Near City ANCHORAGE


We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.


















christianity portal
directory of hotels worldwide



Copyright 2004-2024 © by Airports-Worldwide.com, Vyshenskoho st. 36, Lviv 79010, Ukraine
Legal Disclaimer
