Casa Grande Municipal Airport

Casa Grande Municipal Airport (IATA: CGZ, ICAO: KCGZ, FAA LID: CGZ) is a city-owned public-use airport located five nautical miles (9 km) north of the central business district of Casa Grande, a city in Pinal County, Arizona, United States. The airport is included in the FAA's National Plan of Integrated Airport Systems for 2009–2013, which categorizes it as a general aviation facility. The airport is not served by any commercial airlines at this time.

Facilities and aircraft

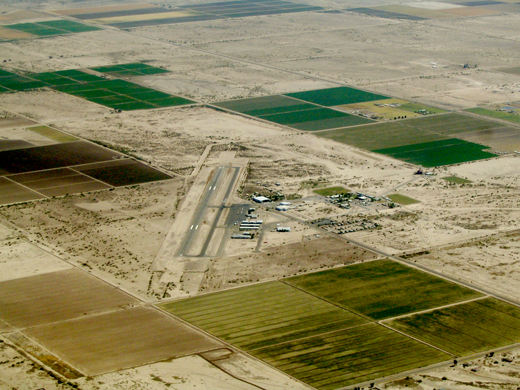

Casa Grande Municipal Airport covers an area of 640 acres (259 ha) at an elevation of 1,464 feet (446 m) above mean sea level. It has one runway designated 5/23 with an asphalt surface measuring 5,200 by 100 feet (1,585 x 30 m).

For the 12-month period ending March 31, 2009, the airport had 119,680 aircraft operations, an average of 327 per day: 98% general aviation, 2% air taxi, and <1% military. At that time there were 77 aircraft based at this airport: 80% single-engine, 4% multi-engine, 3% helicopter and 13% ultralight.

The existing facilities include a paved runway (05-23), three major taxiways, apron and tiedown areas, hangers, a lighted wind sock, segmented circle, and rotating beacon. Runway 05-23 has a Medium Intensity Runway Lighting System (MIRL) with precision instrument markings for Runway 05 and basic markings on Runway 23. Approach aids include a Visual approach Slope Indicator (VASI), Runway End Identifier Lights (REILS), threshold lights, and a Category I Instrument Landing system (ILS). Two published instrument approaches into the Airport can be executed. The approaches to runway 5 consist of a VOR/GPS approach or an ILS/DME approach.

CTAF/UNICOM:122.7
WX/AWOS-3:132.175 (520)836-3392
VOR:TFD 114.80
APCH/DEP: ABQ ARTCC 125.4/269.3
Airport: (520)426-3616

The existing Runway 05-23 is 5,200 feet in length and 100 feet wide. Beginning at the Runway 5 threshold, the runway slopes uphill from an elevation of 1445 to an elevation of 1462 at the runway 23 threshold. This location is the high point of the runway

The Runway has an asphaltic concrete surface, comprised of a 5 inch thick asphalt surface course over 8 inches of crushed base course. The existing pavement is rated at 18,500 lb. Single wheel loading and 65,000 lb. dual wheel loading.

Other important items relating to the runways at the Airport include the Runway Protection Zones (RPZ), and the approach surfaces. The RPZ is defined as an area off the runway end used to enhance the protection of people and property on the ground. The RPZ is trapezoidal in shape and centered about the extended runway centerline. The existing Runway 5 RPZ lies within airport property boundaries and the Runway 23 RPZ extends beyond airport property. However aviation easements protect the areas beyond the property limits. Arizona Highway 387 lies within the runway 23 RPZ.

At the Casa Grande Airport, a 50:1 precision instrument approach surface is the primary approach to Runway 5. The approach minimums are published at 285' height above touchdown (HAT) with a � mile visibility. The best approach minimums available for a Category * (CAT I) Instrument Landing System (ILS) are 200' HAT and � mile visibility.

The current approach for Runway 5 has several obstructions such as trees, shrubs and fences.

The City of Casa Grande maintains and rents out 52 T-hangars, 18 shade-hangars, 50 tie-downs, a commercial hangar, and a flight school building. In addition, the City has leased land out to four private hangars.

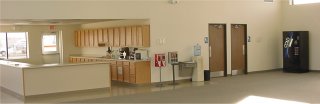

The terminal building was built in 2001 with 4,800 square feet. It contains offices, restrooms, showers, a pilot briefing and flight planning area, conference room and a fuel service desk.

Pinal Avenue/State Highway 387 provides access to the airport. An access road leads directly to the terminal building and the FBO facility.

There are 60 auto parking spots available to terminal users, FBO patrons, and occupants of the shade hangars.

Casa Grande has an AWOS-3 system to provide local weather information. It can be accessed on 132.175 or by calling (520)836-3392.

Location & QuickFacts

FAA Information Effective:	2005-10-27
Airport Identifier:	CGZ
Longitude/Latitude:	111-46-00.6000W/32-57-17.6000N -111.766833/32.954889 (Estimated)
Elevation:	1464 ft / 446.23 m (Surveyed)
Land:	640 acres
From nearest city:	4 nautical miles N of Casa Grande, AZ
Location:	Pinal County, AZ
Magnetic Variation:	12E (2000)

Owner & Manager

Ownership:	Publicly owned
Owner:	City Of Casa Grande
Address:	City Hall, 510 E. Florence Blvd Casa Grande, AZ 85222
Phone number:	520-421-8625
Manager:	A.j. Blaha
Address:	City Of Casa Grande, 510 E. Florence Blvd Casa Grande, AZ 85222
Phone number:	520-421-8625

Airport Operations and Facilities

Airport Use:	Open to public
Wind indicator:	Yes
Segmented Circle:	Yes
Control Tower:	No
Attendance Schedule:	ALL/ALL/0730-1730
Lighting Schedule:	DUSK-DAWN ACTVT MALSR RY 05 - CTAF.
Beacon Color:	Clear-Green (lighted land airport)
Landing fee charge:	No
Sectional chart:	Phoenix
Region:	AWP - Western-Pacific
Traffic Pattern Alt:	1038 ft
Boundary ARTCC:	ZAB - Albuquerque
Tie-in FSS:	PRC - Prescott
FSS on Airport:	No
FSS Phone:	928-778-7810
FSS Toll Free:	1-800-WX-BRIEF
NOTAMs Facility:	CGZ (NOTAM-d service avaliable)
Federal Agreements:	NGPY

Airport Communications

CTAF:	122.700
Unicom:	122.700

Airport Services

Fuel available:	100LLA
Airframe Repair:	MAJOR
Power Plant Repair:	MAJOR
Bottled Oxygen:	NONE
Bulk Oxygen:	NONE

Runway Information

Runway 05/23

Dimension:

5200 x 100 ft / 1585.0 x 30.5 m

Surface:

ASPH, Good Condition

Weight Limit:

Single wheel: 18500 lbs.
Dual wheel: 65000 lbs.

Edge Lights:

Medium

	Runway 05	Runway 23
Longitude:	111-46-26.9497W	111-45-34.1498W
Latitude:	32-57-04.7376N	32-57-30.5264N
Elevation:	1447.00 ft	1464.00 ft
Alignment:	60	127
ILS Type:	ILS
Traffic Pattern:	Left	Right
Markings:	Precision instrument, Fair Condition	Basic, Fair Condition
Crossing Height:	41.00 ft	38.00 ft
VASI:	2-box on right side	2-box on left side
Visual Glide Angle:	3.00�	3.00�
Approach lights:	MALSR
Runway End Identifier:	No	No
Centerline Lights:	No	No
Touchdown Lights:	No	No
Obstruction:	10 ft road, 200.0 ft from runway, 110 ft left of centerline 10 FT ROAD 0 FT FM RY END 130 FT L.	10 ft road, 200.0 ft from runway, 125 ft right of centerline 10 FT ROAD 0 FT FM RY END 100 FT R.

Radio Navigation Aids

ID	Type	Name	Ch	Freq	Var	Dist
CHD	NDB	Chandler		407.00	12E	18.8 nm
FFZ	NDB	Falcon Field		281.00	12E	30.5 nm
SDL	NDB	Scottsdale		224.00	12E	41.1 nm
AVQ	NDB	Marana		245.00	12E	42.9 nm
LUF	TACAN	Luke	077X		13E	46.7 nm
TFD	VORTAC	Stanfield	095X	114.80	12E	8.3 nm
IWA	VORTAC	Willie	080X	113.30	13E	21.7 nm
PXR	VORTAC	Phoenix	103X	115.60	12E	30.5 nm
GBN	VORTAC	Gila Bend	113X	116.60	14E	45.8 nm
PHX	VOT	Phoenix Sky Harbor		109.00		31.3 nm

Remarks

ARPT FQTLY USED FOR PRACTICE INST APCHS BY TSNT ACFT.
SVC ROAD WITHIN PRIMARY SFC.
HOLDLINES ON ALL TWYS CONNECTING TO THE RY ARE SET AT 280FT FM RY CL
ACFT TAXIING ON TWY B BE ALERT TO PASSING ACFT HOLDING ON THE CONNECTING TWYS.
