Brawley Municipal Airport |
| Brawley Municipal Airport |
 |
| IATA: BWC – ICAO: KBWC – FAA LID: BWC |
| Summary |
| Airport type |
City of Brawley |
| Operator |
Brawley, California |
| Location |
-129 |
| Elevation AMSL |
-39.3 ft / m |
| Coordinates |
32°59′35″N 115°31′01″W / 32.99306°N 115.51694°W / 32.99306; -115.51694Coordinates: 32°59′35″N 115°31′01″W / 32.99306°N 115.51694°W / 32.99306; -115.51694 |
| Runways |
| Direction |
Length |
Surface |
| ft |
m |
| 8/26 |
4,402 |
1,342 |
Asphalt |
Brawley Municipal Airport (IATA: BWC, ICAO: KBWC, FAA LID: BWC) is a public airport located one mile (1.6 km) northeast of Brawley, serving Imperial County, California, USA. The airport is mostly used for general aviation.
Facilities
Brawley Municipal Airport covers 160 acres (65 ha) and has one runway:
- Runway 8/26: 4,402 x 60 ft (1,342 x 18 m), Surface: Asphalt
The above content comes from Wikipedia and is published under free licenses – click here to read more.

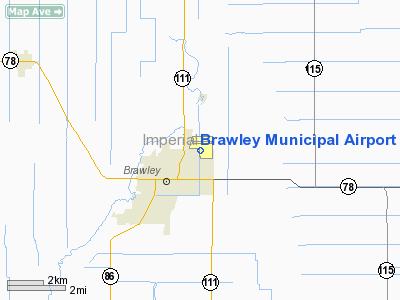

Location
& QuickFacts
|
FAA
Information Effective: |
2006-06-08 |
|
Airport
Identifier: |
BWC |
|
Longitude/Latitude: |
115-31-00.7600W/32-59-34.5800N
-115.516878/32.992939 (Estimated) |
|
Elevation: |
-129 ft / -39.32 m (Estimated) |
|
Land: |
160 acres |
|
From
nearest city: |
1 nautical miles NE of Brawley, CA |
|
Location: |
Imperial County, CA |
|
Magnetic Variation: |
13E (2000) |
Owner
& Manager
|
Ownership: |
Publicly owned |
|
Owner: |
City Of Brawley |
|
Address: |
City Hall 400 Main St
Brawley, CA 92227 |
|
Phone
number: |
760-344-9111 |
|
Manager: |
Richard Klemm |
|
Address: |
948 Ken Bemis Drive
Brawley, CA 92227 |
|
Phone
number: |
760-344-4581
PUBLIC WORKS DIRECTOR'S OFFICE IS IN BRAWLEY, CA, PHONE
760-344-5800 EXT 19. |
Airport
Operations and Facilities
|
Airport
Use: |
Open to public |
|
Wind
indicator: |
Yes |
|
Segmented
Circle: |
Yes |
|
Control
Tower: |
No |
|
Attendance
Schedule: |
ALL/ALL/0800-1700 |
|
Lighting
Schedule: |
DUSK-DAWN
ACTVT MIRL RY 08/26 & TWY LGTS - CTAF. |
|
Beacon
Color: |
Clear-Green (lighted land airport) |
|
Landing
fee charge: |
No |
|
Sectional
chart: |
Phoenix |
|
Region: |
AWP - Western-Pacific |
|
Boundary
ARTCC: |
ZLA - Los Angeles |
|
Tie-in
FSS: |
SAN - San Diego |
|
FSS
on Airport: |
No |
|
FSS
Phone: |
858-277-7043 |
|
FSS
Toll Free: |
1-800-WX-BRIEF |
|
NOTAMs
Facility: |
SAN (NOTAM-d service avaliable) |
|
Federal Agreements: |
NGY |
Airport
Communications
Airport
Services
|
Fuel
available: |
100LL
FOR FUEL USE CARDLOCK-24/7. |
|
Airframe
Repair: |
MAJOR |
|
Power
Plant Repair: |
MAJOR |
|

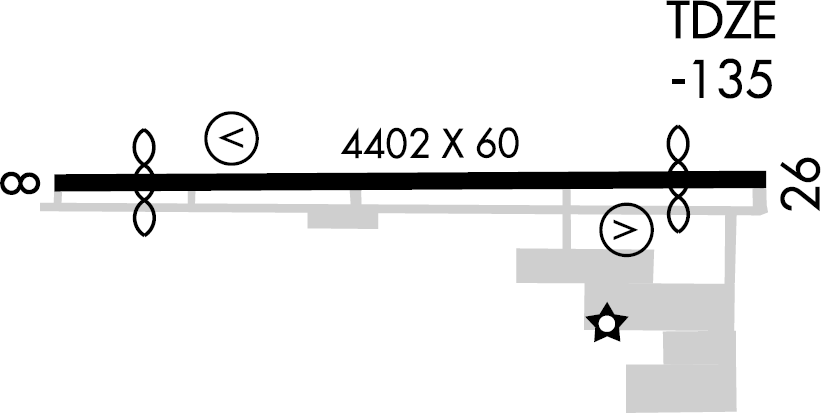

Runway Information
Runway 08/26
|
Dimension: |
4402 x 60 ft / 1341.7 x 18.3 m |
|
Surface: |
ASPH, Good Condition |
|
Weight
Limit: |
Single wheel: 20000 lbs. |
|
Edge
Lights: |
Medium |
|
|
Runway 08 |
Runway 26 |
|
Longitude: |
115-31-26.6000W |
115-30-34.9200W |
|
Latitude: |
32-59-34.5300N |
32-59-34.6200N |
|
Alignment: |
90 |
127 |
|
Traffic
Pattern: |
Left |
Right |
|
Markings: |
Basic, Fair Condition |
Basic, Fair Condition |
|
Crossing
Height: |
25.00 ft |
24.00 ft |
|
Displaced
threshold: |
395.00 ft |
395.00 ft |
|
VASI: |
2-box on left side |
2-box on left side |
|
Visual
Glide Angle: |
3.20° |
3.00° |
|
Runway
End Identifier: |
No |
No |
|
Centerline
Lights: |
No |
No |
|
Touchdown
Lights: |
No |
No |
|
Obstruction: |
23 ft rr, 210.0 ft from runway
RWY 08 APCH RATIO 26:1 TO DSPLCD THR.
RWY
08 +7 FT FENCE 170 FT FM END OF RY. |
, 50:1 slope to clear
APCH RATIO TO DSPLCD THR +15 FT ROAD 510 FT FM DSPLCD THR
34:1.
RWY 26 +15 FT ROAD 115 FT FM RY END + 7 FT FENCE 66 FT FM
RY END. |
|
Radio Navigation
Aids
|
ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
|
NJK |
TACAN |
El Centro |
047X |
|
13E |
12.7 nm |
|
MXL |
VOR/DME |
Mexicali |
097X |
115.00 |
14E |
26.6 nm |
|
IPL |
VORTAC |
Imperial |
106X |
115.90 |
14E |
14.7 nm |
|
BZA |
VORTAC |
Bard |
115X |
116.80 |
14E |
48.1 nm |
Based Aircraft
|
Aircraft
based on field: |
65 |
|
Single
Engine Airplanes: |
59 |
|
Multi
Engine Airplanes: |
5 |
|
Helicopters: |
1 |
Operational Statistics
|
Aircraft
Operations: |
137/Day |
|
Air Taxi: |
1.0% |
|
General
Aviation Local: |
59.0% |
|
General
Aviation Itinerant: |
40.0% |
Brawley Municipal Airport
Address:
Imperial County, CA
Tel:
760-344-9111,
760-344-4581
Images
and information placed above are from
http://www.airport-data.com/airport/BWC/
We
thank them for the data!
| General
Info |
| Country |
United
States |
| State |
CALIFORNIA
|
| FAA ID |
BWC
|
| Latitude |
32-59-35.160N
|
| Longitude |
115-31-00.957W
|
| Elevation |
-128 feet
|
| Near City |
BRAWLEY
|
We don't guarantee the information is fresh and accurate. The data may
be wrong or outdated.
