| Ankeny Regional Airport |
 |
| IATA: IKV – ICAO: KIKV – FAA LID: IKV |
| Summary |
| Airport type |
Public |
| Owner |
Polk County Aviation Authority |
| Serves |
Ankeny, Iowa |
| Elevation AMSL |
910 ft / 277 m |
| Coordinates |
41°41′28″N 093°33′59″W / 41.69111°N 93.56639°W / 41.69111; -93.56639 |
| Runways |
| Direction |
Length |
Surface |
| ft |
m |
| 18/36 |
5,500 |
1,676 |
Concrete |
| 4/22 |
3,855 |
1,175 |
Concrete |
| Statistics (2007) |
| Aircraft operations |
48,600 |
| Based aircraft |
95 |
| Source: Federal Aviation Administration |
Ankeny Regional Airport (IATA: IKV, ICAO: KIKV, FAA LID: IKV) is a public airport located one mile (2 km) southeast of the central business district of Ankeny, a city in Polk County, Iowa, United States. It is owned by the Polk County Aviation Authority.
Facilities and aircraft
 | |

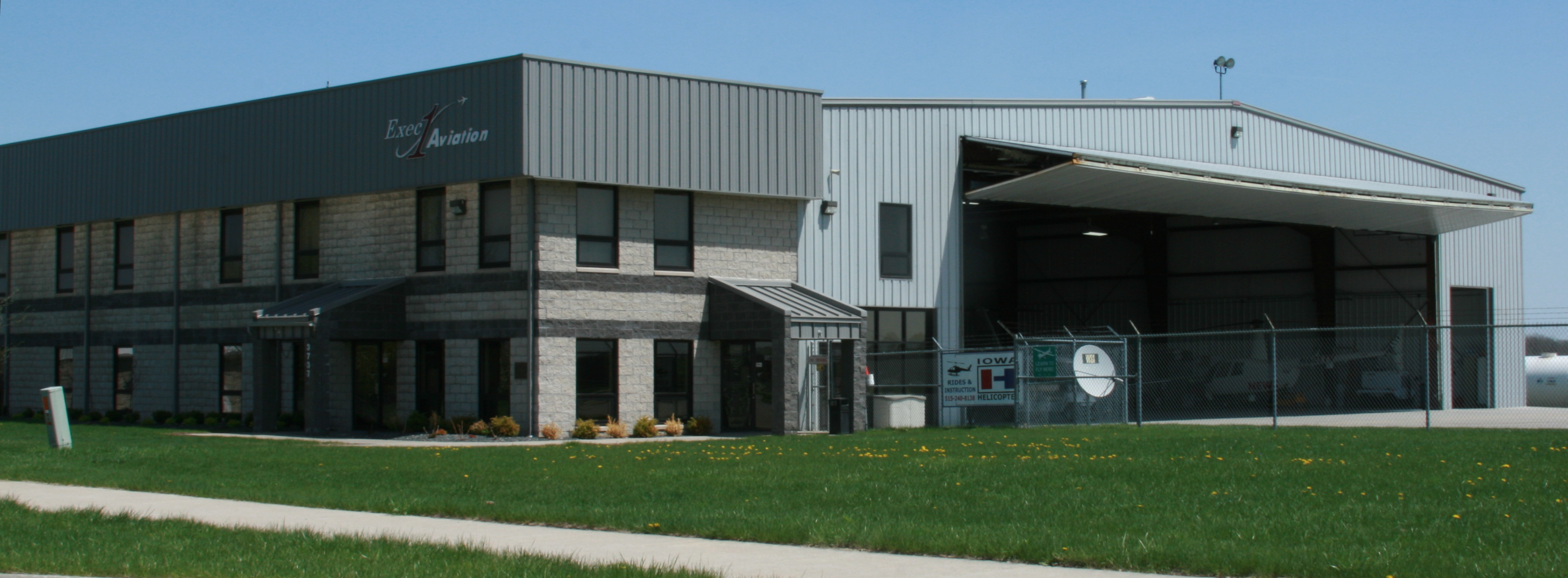

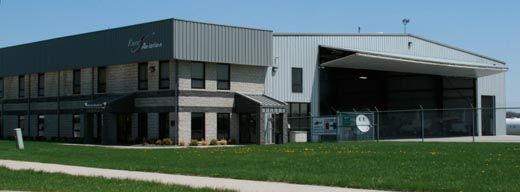

Main FBO Hangar |
Ankeny Regional Airport covers an area of 442 acres (179 ha) at an elevation of 910 feet (277 m) above mean sea level. It has two concrete paved runways: 18/36 is 5,500 by 100 feet (1,676 x 30 m) and 4/22 is 3,855 by 75 feet (1,175 x 23 m). For the 12-month period ending September 11, 2007, the airport had 48,600 general aviation aircraft operations, an average of 133 per day. At that time there were 95 aircraft based at this airport: 77% single-engine, 15% multi-engine, 3% jet, 4% helicopter and 1% military.
 | |

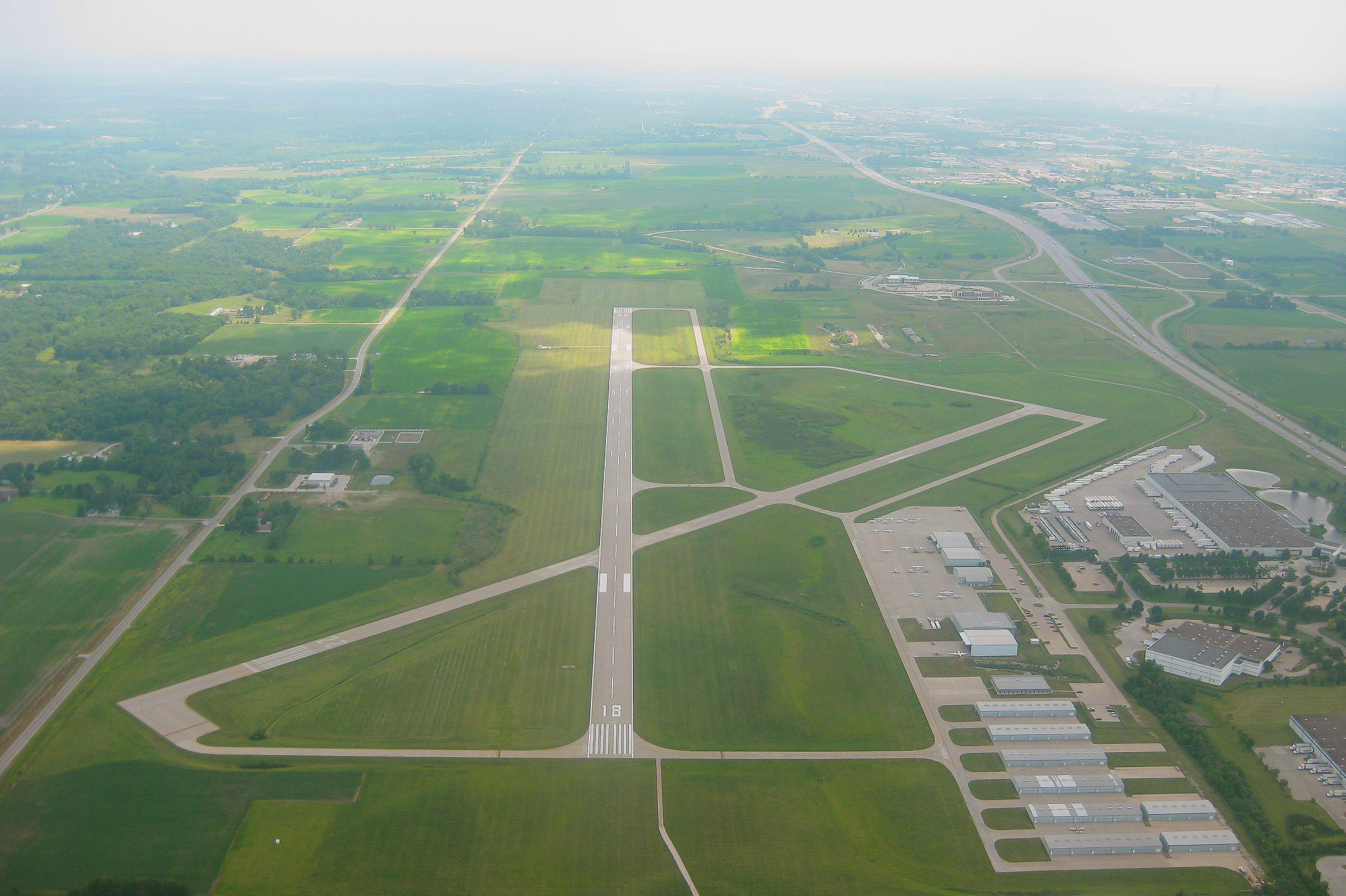

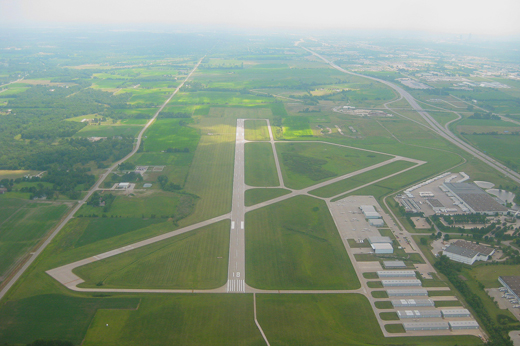

Approaching Runway 18 |
The above content comes from Wikipedia and is published under free licenses – click here to read more.
Location
& QuickFacts
|
FAA Information Effective: |
2007-07-05 |
|
Airport
Identifier: |
IKV |
|
Airport
Status: |
Operational |
|
Longitude/Latitude: |
093-33-58.9000W/41-41-28.9000N
-93.566361/41.691361 (Estimated) |
|
Elevation: |
910 ft / 277.37 m (Surveyed) |
|
Land: |
442 acres |
|
From
nearest city: |
1 nautical miles SE of Ankeny, IA |
|
Location: |
Polk County, IA |
|
Magnetic Variation: |
03E (2000) |
Owner
& Manager
|
Ownership: |
Publicly owned |
|
Owner: |
Polk County Aviation Auth |
|
Address: |
401 West 1st Street
Ankeny, IA 50021 |
|
Phone
number: |
515-965-6400 |
|
Manager: |
Richard D. Ash |
|
Address: |
401 West 1st Street
Ankeny, IA 50021 |
|
Phone number: |
515-965-6400 |
Airport
Operations and Facilities
|
Airport Use: |
Open to public |
|
Wind
indicator: |
Yes |
|
Segmented
Circle: |
Yes |
|
Control
Tower: |
No |
|
Lighting
Schedule: |
DUSK-DAWN
ACTVT MIRL RYS 04/22 & 18/36; REIL RYS 18 & 36 -
CTAF. |
|
Beacon
Color: |
Clear-Green (lighted land airport) |
|
Sectional
chart: |
Omaha |
|
Region: |
ACE - Central |
|
Boundary
ARTCC: |
ZMP - Minneapolis |
|
Responsible
ARTCC: |
ZMP - Minneapolis |
|
Tie-in
FSS: |
FOD - Fort Dodge |
|
FSS
on Airport: |
No |
|
FSS
Phone: |
515-955-8114 |
|
FSS
Toll Free: |
1-800-WX-BRIEF |
|
NOTAMs
Facility: |
IKV (NOTAM-d service avaliable) |
|
Federal Agreements: |
NGY |
Airport
Communications
Airport
Services
|
Fuel available: |
100LLA |
|
Airframe Repair: |
MAJOR |
|
Power Plant Repair: |
MAJOR |
|
Bottled
Oxygen: |
HIGH |
|
Bulk
Oxygen: |
HIGH |
|
Runway Information
Runway 04/22
|
Dimension: |
4200 x 75 ft / 1280.2 x 22.9 m |
|
Surface: |
CONC, Good Condition |
|
Weight
Limit: |
Single wheel: 30000 lbs. |
|
Edge
Lights: |
Medium |
|
|
Runway 04 |
Runway 22 |
|
Longitude: |
093-34-20.9026W |
093-33-41.7566W |
|
Latitude: |
41-41-20.0332N |
41-41-49.3692N |
|
Elevation: |
910.00
ft |
902.00
ft |
|
Alignment: |
45 |
127 |
|
Traffic
Pattern: |
Right |
Left |
|
Markings: |
, |
Non-precision instrument, Good Condition |
|
Crossing
Height: |
32.00
ft |
30.00
ft |
|
Displaced
threshold: |
0.00 ft |
344.00
ft |
|
VASI: |
2-light PAPI on left side |
2-light PAPI on left side |
|
Visual
Glide Angle: |
4.00° |
4.00° |
|
Runway
End Identifier: |
Yes |
Yes |
|
Obstruction: |
36 ft road, 1200.0 ft from runway, 27:1 slope
to clear |
18 ft road, 595.0 ft from runway, 21:1 slope
to clear |
|
Runway 18/36
|
Dimension: |
5500 x 100 ft / 1676.4 x 30.5 m |
|
Surface: |
CONC, Good Condition |
|
Weight
Limit: |
Single wheel: 30000 lbs. |
|
Edge
Lights: |
Medium |
|
|
Runway 18 |
Runway 36 |
|
Longitude: |
093-33-56.9630W |
093-33-56.9768W |
|
Latitude: |
41-41-51.5450N |
41-40-57.2104N |
|
Elevation: |
903.00
ft |
888.00
ft |
|
Alignment: |
127 |
127 |
|
ILS
Type: |
|
ILS/DME |
|
Traffic
Pattern: |
Left |
Right |
|
Markings: |
Non-precision instrument, Good Condition |
Non-precision instrument, Good Condition |
|
Crossing
Height: |
28.00
ft |
28.00
ft |
|
VASI: |
2-light PAPI on left side |
2-light PAPI on left side |
|
Visual
Glide Angle: |
3.00° |
3.00° |
|
Runway
End Identifier: |
Yes |
Yes |
|
Obstruction: |
68 ft tree, 2200.0 ft from runway, 205 ft right
of centerline, 29:1 slope to clear |
70 ft pline, 2603.0 ft from runway, 34:1 slope
to clear |
|
Radio Navigation
Aids
|
ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
|
IKV |
NDB |
Ankeny |
|
275.00 |
03E |
0.5 nm |
|
BNW |
NDB |
Boone |
|
407.00 |
03E |
25.3 nm |
|
PRO |
NDB |
Perry |
|
251.00 |
06E |
27.9 nm |
|
OXV |
NDB |
Knoxville |
|
284.00 |
03E |
31.3 nm |
|
PEA |
NDB |
Pella |
|
257.00 |
02E |
32.9 nm |
|
GGI |
NDB |
Grinnell |
|
248.00 |
02E |
37.6 nm |
|
MIW |
NDB |
Marshalltown |
|
239.00 |
03E |
38.4 nm |
|
GCT |
NDB |
Guthrie Center |
|
518.00 |
05E |
38.9 nm |
|
EFW |
NDB |
Jefferson |
|
391.00 |
03E |
39.8 nm |
|
CNC |
NDB |
Chariton |
|
335.00 |
05E |
41.6 nm |
|
GFZ |
NDB |
Greenfield |
|
338.00 |
04E |
45.2 nm |
|
EBS |
NDB |
Webster City |
|
323.00 |
03E |
47.1 nm |
|
IFA |
NDB |
Iowa Falls |
|
368.00 |
03E |
49.1 nm |
|
TNU |
VOR/DME |
Newton |
072X |
112.50 |
03E |
21.3 nm |
|
JWJ |
VOR/DME |
Elmwood |
031X |
109.40 |
03E |
38.8 nm |
|
DSM |
VORTAC |
Des Moines |
122X |
117.50 |
07E |
15.7 nm |
|
DSM |
VOT |
Des Moines |
|
109.20 |
|
10.4 nm |
Remarks
- BE
AWARE OF ACFT OPER INVOF TODD FIELD LCTD 4 MILES NORTH.
- EXEC
1 AVIATION - (515) 965-1020.
- AMGR
REQ USE OF PREFERENTIAL RY 18 WHEN WINDS ARE LESS THAN 5 KNOTS.
Based
Aircraft
|
Aircraft
based on field: |
109 |
|
Single
Engine Airplanes: |
82 |
|
Multi
Engine Airplanes: |
19 |
|
Jet Engine
Airplanes: |
2 |
|
Helicopters: |
5 |
|
Military: |
1 |
Operational Statistics
Time Period: 2003-01-09
- 2004-01-08
|
Aircraft
Operations: |
121/Day |
|
General
Aviation Local: |
40.0% |
|
General
Aviation Itinerant: |
60.0% |
Ankeny Regional Airport
Address:
Polk County, IA
Tel:
515-965-6400
Images
and information placed above are from
http://www.airport-data.com/airport/IKV/
We
thank them for the data!
| General
Info |
| Country |
United
States |
| State |
IOWA
|
| FAA ID |
IKV
|
| Latitude |
41-41-27.890N
|
| Longitude |
093-33-59.270W
|
| Elevation |
910 feet
|
| Near City |
ANKENY
|
We don't guarantee the information is fresh and accurate. The data may
be wrong or outdated.
For more up-to-date information please refer to other sources.
|
|
