Hastings Airport

Hastings Airport
IATA: HGS – ICAO: GFHA
Summary
Serves		Freetown
Location		Sierra Leone
Runways
Direction	Length		Surface
Direction	ft	m	Surface
08/26	4,000	1,300	Asphalt

Hastings Airport (IATA: HGS, ICAO: GFHA) is an airport serving Freetown in Sierra Leone.

Coordinates: 8°36′59″N 13°11′43″W / 8.61639°N 13.19528°W / 8.61639; -13.19528

The above content comes from Wikipedia and is published under free licenses – click here to read more.

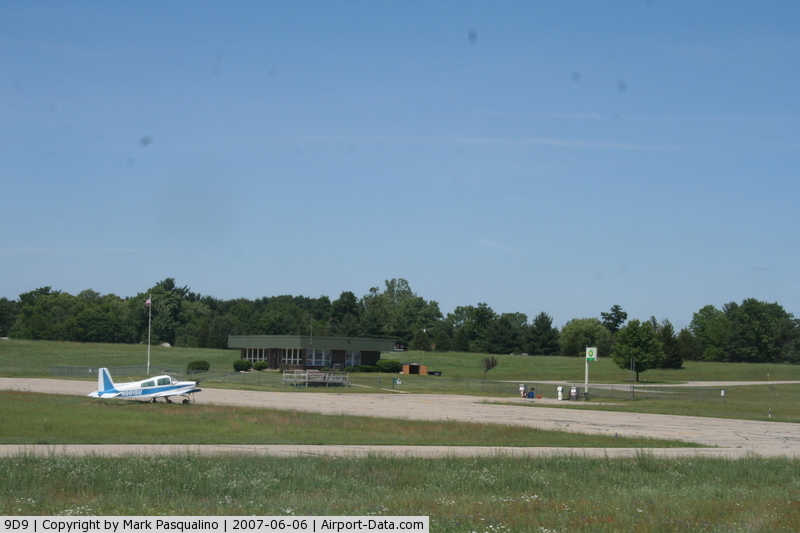

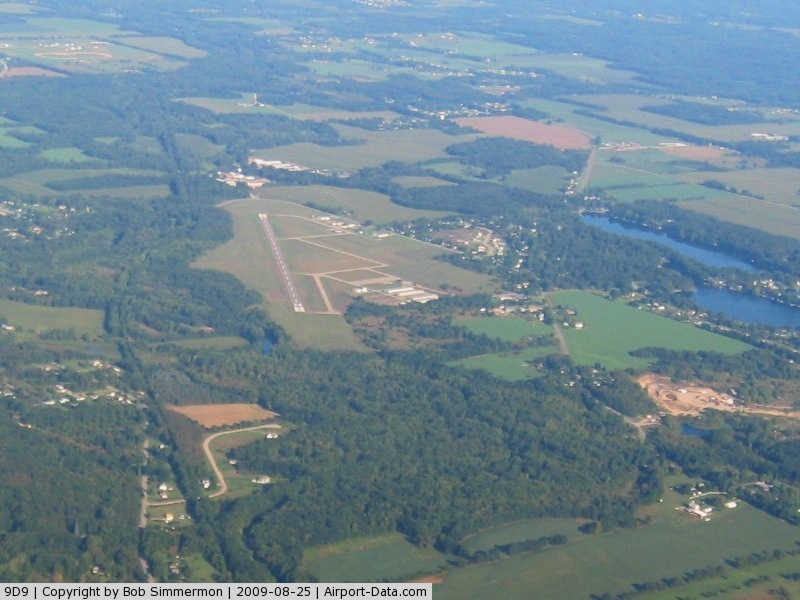

Hastings Airport picture

(Click on the photo to enlarge)

(Click on the photo to enlarge)

Location & QuickFacts

FAA Information Effective:	2008-09-25
Airport Identifier:	9D9
Airport Status:	Operational
Longitude/Latitude:	085-20-46.5340W/42-39-49.0240N -85.346259/42.663618 (Estimated)
Elevation:	801 ft / 244.14 m (Surveyed)
Land:	270 acres
From nearest city:	3 nautical miles W of Hastings, MI
Location:	Barry County, MI
Magnetic Variation:	04W (1980)

Owner & Manager

Ownership:	Publicly owned
Owner:	Hastings City/barry Co.
Address:	Airport Commission, 220 W. State St. Hastings, MI 49058
Phone number:	269-945-1284
Manager:	Michael Brown
Address:	220 W. State St Hastings, MI 49058
Phone number:	269-945-1284 CELL 269-838-7990.

Airport Operations and Facilities

Airport Use:	Open to public
Wind indicator:	Yes
Segmented Circle:	Yes
Control Tower:	No
Lighting Schedule:	DUSK-DAWN ACTVT MIRL RY 12/30; REIL RYS 12 & 30 & VASI RY 12 - CTAF.
Beacon Color:	Clear-Green (lighted land airport)
Landing fee charge:	No
Sectional chart:	Chicago
Region:	AGL - Great Lakes
Traffic Pattern Alt:	800 ft
Boundary ARTCC:	ZAU - Chicago
Tie-in FSS:	LAN - Lansing
FSS on Airport:	No
FSS Toll Free:	1-800-WX-BRIEF
NOTAMs Facility:	LAN (NOTAM-d service avaliable)
Federal Agreements:	NGY

Airport Communications

CTAF:	123.075
Unicom:	123.075

Airport Services

Fuel available:	100LL
Airframe Repair:	MAJOR
Power Plant Repair:	MAJOR

Runway Information

Runway 09/27

Dimension:

2400 x 170 ft / 731.5 x 51.8 m

Surface:

TURF, Fair Condition

	Runway 09	Runway 27
Longitude:	085-21-09.0350W	085-20-36.9120W
Latitude:	42-39-56.1240N	42-39-56.1240N
Alignment:	90	127
Traffic Pattern:	Left	Left
Displaced threshold:	185.00 ft	393.00 ft
Obstruction:	65 ft trees, 585.0 ft from runway, 185 ft right of centerline, 9:1 slope to clear APCH RATIO 8:1 AT DSPLCD THLD, OVR +32 FT TREES, 256 FT DSTC, 145 FT R.	70 ft trees, 1400.0 ft from runway, 20 ft left of centerline, 20:1 slope to clear APCH RATIO 25:1 AT DSPLCD THLD OVER 70 FT TREES, 1793 FT DSTC, 20 FT L.

Runway 12/30

Dimension:

3900 x 75 ft / 1188.7 x 22.9 m

Surface:

ASPH, Fair Condition

Weight Limit:

Single wheel: 20000 lbs.

Edge Lights:

Medium

	Runway 12	Runway 30
Longitude:	085-21-06.3670W	085-20-22.4710W
Latitude:	42-39-56.6330N	42-39-35.8440N
Elevation:	797.00 ft	795.00 ft
Alignment:	122	127
Traffic Pattern:	Left	Left
Markings:	Non-precision instrument, Good Condition RY 12/30 MARKINGS FADED.	Non-precision instrument, Good Condition
VASI:	2-box on left side
Visual Glide Angle:	3.75°	0.00°
Runway End Identifier:	Yes	Yes
Obstruction:	39 ft trees, 902.0 ft from runway, 164 ft right of centerline, 18:1 slope to clear	32 ft tree, 520.0 ft from runway, 255 ft left of centerline, 10:1 slope to clear

Runway 18/36

Dimension:

2567 x 200 ft / 782.4 x 61.0 m

Surface:

TURF, Fair Condition

	Runway 18	Runway 36
Longitude:	085-20-43.0350W	085-20-44.2410W
Latitude:	42-39-59.1240N	42-39-33.7830N
Alignment:	127	2
Traffic Pattern:	Left	Left
Displaced threshold:	600.00 ft	0.00 ft
Obstruction:	28 ft trees, 84.0 ft from runway, 3:1 slope to clear APCH RATIO 20:1 AT DSPLCD THLD OVER 38 FT TREES, 750 FT DSTC.	22 ft tree, 161.0 ft from runway, 140 ft right of centerline, 7:1 slope to clear

Radio Navigation Aids

ID	Type	Name	Ch	Freq	Var	Dist
BT	NDB	Batol		272.00	04W	19.5 nm
HLM	NDB	Holland		233.00	03W	36.7 nm
HAI	NDB	Three Rivers		407.00	02W	43.8 nm
AMN	NDB	Alma		329.00	05W	46.7 nm
GRR	VOR/DME	Grand Rapids	106Y	115.95	04W	10.0 nm
AZO	VOR/DME	Kalamazoo	027X	109.00	01W	27.2 nm
PMM	VOR/DME	Pullman	058X	112.10	00E	35.6 nm
LFD	VOR/DME	Litchfield	049X	111.20	05W	44.4 nm
JXN	VOR/DME	Jackson	033X	109.60	05W	46.3 nm
ELX	VOR/DME	Keeler	113X	116.60	00E	46.5 nm
BTL	VORTAC	Battle Creek	031X	109.40	02W	21.7 nm
LAN	VORTAC	Lansing	045X	110.80	05W	28.8 nm
MKG	VORTAC	Muskegon	099X	115.20	01W	43.1 nm

Remarks

EXTENSIVE PARACHUTE ACTIVITY.
NUMEROUS BIRDS ON & INVOF ARPT.

Images and information placed above are from
http://www.airport-data.com/airport/9D9/

We thank them for the data!

General Info
Country United States
State MICHIGAN
FAA ID 9D9
Latitude 42-39-49.024N
Longitude 085-20-46.534W
Elevation 801 feet
Near City HASTINGS

We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
