Concord Municipal Airport |
|
IATA: CON – ICAO: KCON – FAA LID: CON |
Summary |
Airport type |
General Aviation |
Owner |
City of Concord |
Operator |
Concord Aviation Services |
Serves |
Concord, New Hampshire |
Elevation AMSL |
346 ft / 105 m |
Coordinates |
43°12′10″N 071°30′08″W / 43.20278°N 71.50222°W / 43.20278; -71.50222Coordinates: 43°12′10″N 071°30′08″W / 43.20278°N 71.50222°W / 43.20278; -71.50222 |
Website |
www.confbo.com |
Runways |
Direction |
Length |
Surface |
ft |
m |
12/30 |
3,200 |
975 |
Asphalt |
17/35 |
6,005 |
1,830 |
Asphalt |
Concord Municipal Airport (IATA: CON, ICAO: KCON, FAA LID: CON) is a public-use airport located two miles (3 km) east of the central business district of Concord, a city in Merrimack County, New Hampshire, United States. This general aviation airport is publicly owned by the City of Concord. There was once scheduled airline service at the airport on Northeast Airlines.
Facilities
Concord Municipal Airport covers an area of 697 acres (282 ha) and has two runways:
- Runway 17/35: 6,005 x 100 ft (1,830 x 30 m), Surface: Asphalt
- Runway 12/30: 3,200 x 75 ft (975 x 23 m), Surface: Asphalt
Concord Aviation Services also provides full and self-service 100LL fuel and full-service Jet A fuel. There are also long-term tie-down spots for multiple small aircraft on the southern part of the ramp, and two hangars for year-round aircraft storage.
In addition, Concord Aviation Services does mechanical work in its main hangar, on both its own aircraft and those of customers.
The above content comes from Wikipedia and is published under free licenses – click here to read more.
Location & QuickFacts
FAA Information Effective: | 2008-09-25 |
Airport Identifier: | CON |
Airport Status: | Operational |
Longitude/Latitude: | 071-30-08.2000W/43-12-09.8000N -71.502278/43.202722 (Estimated) |
Elevation: | 342 ft / 104.24 m (Surveyed) |
Land: | 697 acres |

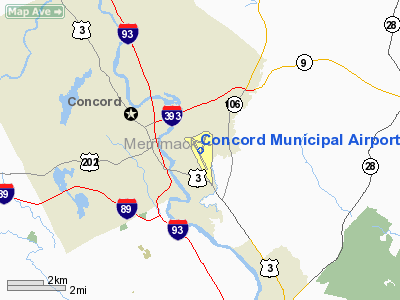

From nearest city: | 2 nautical miles E of Concord, NH |
Location: | Merrimack County, NH |
Magnetic Variation: | 16W (1995) |
Owner & Manager
Ownership: | Publicly owned |
Owner: | City Of Concord |
Address: | 41 Green St Concord, NH 03301 CITY MANAGER'S OFFICE. |
Phone number: | 603-225-8570 |
Manager: | Robert Rolla |
Address: | 71 Airport Road Concord, NH 03301 |
Phone number: | 603-228-2267 |
Airport Operations and Facilities
Airport Use: | Open to public |
Wind indicator: | Yes |
Segmented Circle: | No |
Control Tower: | No |
Lighting Schedule: | DUSK-DAWN ACTVT HIRL RY 17/35, MIRL RY 12/30; REIL RYS 12 & 30 & MALSR RY 35 - CTAF. |
Beacon Color: | Clear-Green (lighted land airport) |
Landing fee charge: | No |
Sectional chart: | New York |
Region: | ANE - New England |
Boundary ARTCC: | ZBW - Boston |
Tie-in FSS: | BGR - Bangor |
FSS Toll Free: | 1-800-WX-BRIEF |
NOTAMs Facility: | CON (NOTAM-d service avaliable) |
Federal Agreements: | NGY3 |
Airport Communications
CTAF: | 122.700 |
Unicom: | 122.700 |
Airport Services
Fuel available: | 100LLA SELF-SERVE 100LL AVAIL 24 HRS WITH CREDIT CARD. FOR JET A AFTER HRS CALL 1-603-228-2267 AND FOLLOW PROMPTS. |
Airframe Repair: | MAJOR |
Power Plant Repair: | MAJOR |
Bottled Oxygen: | NONE |
Bulk Oxygen: | NONE |
Runway Information
Runway 12/30
Dimension: | 3200 x 75 ft / 975.4 x 22.9 m |
Surface: | ASPH, Good Condition |
Weight Limit: | Single wheel: 30000 lbs. |
Edge Lights: | Medium |
|
Runway 12 |
Runway 30 |
Longitude: | 071-30-24.8828W | 071-29-43.1571W |
Latitude: | 43-12-27.6375N | 43-12-19.4406N |
Elevation: | 340.00 ft | 342.00 ft |
Alignment: | 105 | 127 |
Traffic Pattern: | Left | Left |
Markings: | Non-precision instrument, Good Condition | Non-precision instrument, Good Condition |
Runway End Identifier: | Yes | Yes |
Obstruction: | 70 ft trees, 1815.0 ft from runway, 386 ft left of centerline, 23:1 slope to clear | 66 ft trees, 1705.0 ft from runway, 209 ft left of centerline, 23:1 slope to clear |
|
Runway 17/35
Dimension: | 6005 x 100 ft / 1830.3 x 30.5 m |
Surface: | ASPH, Good Condition |
Weight Limit: | Single wheel: 43000 lbs. Dual wheel: 60000 lbs. |
Edge Lights: | High |
|
Runway 17 |
Runway 35 |
Longitude: | 071-30-27.5811W | 071-29-53.3882W |
Latitude: | 43-12-29.4151N | 43-11-35.6340N |
Elevation: | 341.00 ft | 331.00 ft |
Alignment: | 127 | 127 |
ILS Type: | | ILS
|
Traffic Pattern: | Left | Left |
Markings: | Non-precision instrument, Fair Condition | Precision instrument, Fair Condition |
Crossing Height: | 45.00 ft | 50.00 ft |
Displaced threshold: | 650.00 ft | 0.00 ft |
VASI: | 4-light PAPI on left side | 4-box on left side |
Visual Glide Angle: | 3.00° | 3.00° |
Approach lights: | | MALSR |
Runway End Identifier: | Yes REIL OTS INDEFLY. | |
Obstruction: | 59 ft trees, 750.0 ft from runway, 26 ft left of centerline, 9:1 slope to clear APCH SLOPE 23:1 TO DSPLCD THLD. | , 50:1 slope to clear RWY 35 +15 FT TREES 50 FT FM THLD, 300 FT R. |
|
Radio Navigation Aids
ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
LCI | FAN MARKER | Laconia | | | | 22.1 nm |
BVY | FAN MARKER | Beverly | | | | 43.3 nm |
CO | NDB | Epsom | | 216.00 | 16W | 5.5 nm |
LC | NDB | Blnap | | 328.00 | 16W | 20.1 nm |
DRY | NDB | Derry | | 338.00 | 16W | 20.5 nm |
AS | NDB | Chern | | 359.00 | 16W | 23.2 nm |
ESG | NDB | Rollins | | 260.00 | 16W | 29.5 nm |
CNH | NDB | Claremont | | 233.00 | 16W | 39.3 nm |
FIT | NDB | Fitchburg | | 365.00 | 15W | 40.8 nm |
LAH | NDB | Hanover | | 276.00 | 15W | 42.1 nm |
TOF | NDB | Topsfield | | 269.00 | 16W | 42.5 nm |
SKR | NDB | Shaker Hill | | 251.00 | 16W | 47.1 nm |
IVV | NDB | White River | | 379.00 | 16W | 47.3 nm |
SXD | NDB | Springfield | | 265.00 | 15W | 47.6 nm |
MHT | VOR/DME | Manchester | 091X | 114.40 | 15W | 20.9 nm |
PSM | VOR/DME | Pease | 112X | 116.50 | 16W | 30.2 nm |
LWM | VOR/DME | Lawrence | 072X | 112.50 | 15W | 33.1 nm |
LEB | VOR/DME | Lebanon | 084X | 113.70 | 15W | 42.3 nm |
CON | VORTAC | Concord | 076X | 112.90 | 15W | 3.4 nm |
ENE | VORTAC | Kennebunk | 118X | 117.10 | 17W | 41.1 nm |
EEN | VORTAC | Keene | 031X | 109.40 | 14W | 42.5 nm |
GDM | VORTAC | Gardner | 043X | 110.60 | 14W | 46.5 nm |
BED | VOT | Laurence G Hanscom Fld | | 110.00 | | 45.1 nm |
Remarks
- DEER & COYOTE ON & INVOF ARPT.
- OPERATIONS ON NATIONAL GUARD TWY & RAMP PROHIBITED WITHOUT PRIOR COORDINATION DUE TO SECURITY.
- DAY & NIGHT VFR HEL OPNS TO & FM NEW HAMPSHIRE STATE POLICE HNGR.
- PARALLEL TWY NOT LIGHTED.
- PPR REQUIRED FOR OPERATIONS OFF PAVED SURFACES DUE TO CONSERVATION MANAGEMENT ACTIVITIES.
- EXISTED PRIOR TO 1959.
Images and information placed above are from
http://www.airport-data.com/airport/CON/
We thank them for the data!
General Info
|
Country |
United States
|
State |
NEW HAMPSHIRE
|
FAA ID |
CON
|
Latitude |
43-12-09.838N
|
Longitude |
071-30-08.228W
|
Elevation |
346 feet
|
Near City |
CONCORD
|
We don't guarantee the information is fresh and accurate. The data may
be wrong or outdated.
For more up-to-date information please refer to other sources.
|
|
