| Dean Memorial Airport |
| IATA: none – ICAO: none – FAA LID: 5B9 |
| Summary |
| Airport type |
Public |
| Owner |
Town of Haverhill |
| Serves |
Haverhill, New Hampshire |
| Elevation AMSL |
582 ft / 177 m |
| Coordinates |
44°04′48.6222″N 072°00′27.9357″W / 44.080172833°N 72.007759917°W / 44.080172833; -72.007759917 |
| Website |
http://www.town.haverhill.nh.us/deanmemorialairp.html |
| Runways |
| Direction |
Length |
Surface |
| ft |
m |
| 01/19 |
2,511 |
765 |
Asphalt |
| Statistics (2008) |
| Aircraft operations |
4,750 |
| Based aircraft |
19 |
| Source: Federal Aviation Administration |
Dean Memorial Airport is a public use airport in Grafton County, New Hampshire, United States. It is owned by the town of Haverhill and is located three nautical miles (5.56 km) northeast of the central business district.
Although most U.S. airports use the same three-letter location identifier for the FAA and IATA, this airport is assigned 5B9 by the FAA but has no designation from the IATA.
Facilities and aircraft
Dean Memorial Airport covers an area of 48 acres (19.4 ha) at an elevation of 582 feet (177 m) above mean sea level. It has one runway designated 01/19 with an asphalt surface measuring 2,511 by 58 feet (765 x 18 m).
For the 12-month period ending July 31, 2008, the airport had 4,750 aircraft operations, an average of 13 per day: 100% general aviation. At that time there were 19 aircraft based at this airport: 95% single-engine, and 5% helicopters.
The above content comes from Wikipedia and is published under free licenses – click here to read more.
Location & QuickFacts
| FAA Information Effective: | 2008-09-25 |
| Airport Identifier: | 5B9 |
| Airport Status: | Operational |
| Longitude/Latitude: | 072-00-27.9357W/44-04-48.6222N
-72.007760/44.080173 (Estimated) |
| Elevation: | 582 ft / 177.39 m (Surveyed) |
| Land: | 48 acres |

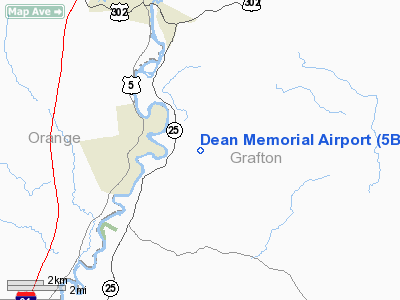

| From nearest city: | 3 nautical miles NE of Haverhill, NH |
| Location: | Grafton County, NH |
| Magnetic Variation: | 16W (2005) |
Owner & Manager
| Ownership: | Publicly owned |
| Owner: | Town Of Haverhill
DEAN MEMORIAL ARPT COMMISSION. |
| Address: | 2975 Dartmouth College Hwy
N. Haverhill, NH 03774 |
| Phone number: | 603-787-6800 |
| Manager: | James Fortier |
| Address: | P.o. Box 298
Pike, NH 03780 |
| Phone number: | 603-989-5845
ARPT PHONE 603-787-6256. |
Airport Operations and Facilities
| Airport Use: | Open to public |
| Wind indicator: | Yes |
| Segmented Circle: | No |
| Control Tower: | No |
| Lighting Schedule: | RDO-CTL
ACTVT LIRL RY 01/19 & WINDSOCK - CTAF. |
| Landing fee charge: | No |
| Sectional chart: | Montreal |
| Region: | ANE - New England |
| Boundary ARTCC: | ZBW - Boston |
| Tie-in FSS: | BGR - Bangor |
| FSS on Airport: | No |
| FSS Toll Free: | 1-800-WX-BRIEF |
| NOTAMs Facility: | BGR (NOTAM-d service avaliable) |
Airport Communications
| CTAF: | 122.800 |
| Unicom: | 122.800 |
Airport Services
| Fuel available: | 100LL |
| Airframe Repair: | NONE |
| Power Plant Repair: | NONE |
| Bottled Oxygen: | NONE |
| Bulk Oxygen: | NONE |
Runway Information
Runway 01/19
| Dimension: | 2511 x 58 ft / 765.4 x 17.7 m |
| Surface: | ASPH, Good Condition |
| Weight Limit: | Single wheel: 8500 lbs. |
| Edge Lights: | Non-standard lighting system
NSTD LIRL; FIRST 185 FT RY 01 NOT LGTD. |
| |
Runway 01 |
Runway 19 |
| Longitude: | 072-00-25.5595W | 072-00-30.3121W |
| Latitude: | 44-04-36.3440N | 44-05-00.9005N |
| Elevation: | 582.00 ft | 546.00 ft |
| Alignment: | 127 | 127 |
| Traffic Pattern: | Left | Left |
| Markings: | Nonstandard, Good Condition
RY 01/19 MARKINGS NON-STANDARD, NO CENTERLINE MARKINGS. | Nonstandard, Good Condition |
| Displaced threshold: | 185.00 ft | 0.00 ft |
| Obstruction: | 88 ft tree, 360.0 ft from runway, 220 ft right of centerline, 2:1 slope to clear
APCH SLOPE 6:1 TO DSPLCD THLD.
RY 01 HAS 20 FT TREES 100 FT FROM RY END 30 FT LEFT OF CL. | 31 ft pole, 305.0 ft from runway, 190 ft right of centerline, 4:1 slope to clear
RY 19 HAS 33 FT UTILITY POLE 170 FT FM RY END 203 FT LEFT OF CL. |
|
Radio Navigation Aids
| ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
| HIE | FAN MARKER | Witey | | | 17W | 25.7 nm |
| MPV | FAN MARKER | Brook | | | | 31.5 nm |
| LCI | FAN MARKER | Laconia | | | | 39.4 nm |
| SZO | FAN MARKER | Grinn | | | 17W | 49.2 nm |
| R | FAN MARKER | Chitt | | | 14W | 49.6 nm |
| GMA | NDB | Mahn | | 386.00 | 17W | 21.9 nm |
| LAH | NDB | Hanover | | 276.00 | 15W | 23.9 nm |
| LLX | NDB | Lyndonville | | 353.00 | 16W | 25.5 nm |
| VKN | NDB | Mount Mansfield | | 268.00 | 16W | 34.8 nm |
| IVV | NDB | White River | | 379.00 | 16W | 37.0 nm |
| LC | NDB | Blnap | | 328.00 | 16W | 38.5 nm |
| JRV | NDB | Morrisville/stowe | | 375.00 | 16W | 39.0 nm |
| CNH | NDB | Claremont | | 233.00 | 16W | 45.5 nm |
| HXK | NDB | Hornebrook | | 281.00 | 17W | 46.5 nm |
| DYO | NDB | Smuto | | 221.00 | 15W | 46.9 nm |
| MPV | VOR/DME | Montpelier | 045X | 110.80 | 16W | 19.1 nm |
| LEB | VOR/DME | Lebanon | 084X | 113.70 | 15W | 25.8 nm |
| BML | VOR/DME | Berlin | 041X | 110.40 | 17W | 48.5 nm |
Remarks
- FOR WINTER COND CALL 603-787-6256 OR 603-989-5845 24 HRS BEFORE USE.
- VFR OPNS ONLY
Images and information placed above are from
http://www.airport-data.com/airport/5B9/
We thank them for the data!
| General Info
|
| Country |
United States
|
| State |
NEW HAMPSHIRE
|
| FAA ID |
5B9
|
| Latitude |
44-04-50.233N
|
| Longitude |
072-00-28.319W
|
| Elevation |
580 feet
|
| Near City |
HAVERHILL
|
We don't guarantee the information is fresh and accurate. The data may
be wrong or outdated.
For more up-to-date information please refer to other sources.
|
|
